How to Change the Battery on a Mercedes-Benz Sprinter

Mercedes-Benz sells the Sprinter, but it isn't the only badge on this van. Freightliner sold the identical vehicle in the US from model year 2002 through 2021, and Dodge sold it from 2003 through 2009. If you're searching for a "Freightliner Sprinter battery" or a "Dodge Sprinter battery," you're in the right place: the battery, its location, and the access procedure are the same regardless of badge. Mercedes-Benz's own upfitter documentation repeatedly refers to servicing "a Mercedes-Benz or Freightliner Sprinter" as interchangeable, and the two brands share the same underlying Sprinter platform history.

This guide covers the conventional 12V starter battery in the diesel and gas Sprinter (NCV3, model years 2007–2018, and VS30/907, 2019-present). It does not cover the electric eSprinter, which is a different product with its own high-voltage battery pack.

Quick answer: On every Mercedes-Benz Sprinter (2007–2018 NCV3 and 2019-present VS30/907), the main 12V starter battery is under the driver's seat, not under the hood. The jump-start terminals under the hood connect to that same battery through a cable, they aren't a second battery. A factory or aftermarket auxiliary battery, when present, is usually under the passenger seat. Expect a Group 49 (H8) or Group 48 (H6) AGM battery, roughly $200-$600 installed depending on the shop and battery tier.

Not the eSprinter

If your van is the electric eSprinter, none of the location or replacement steps below apply to your main propulsion battery. The first-generation eSprinter (2019-2023) uses a 35/41 kWh or 47/55 kWh pack, and the eSprinter 2.0 (2023-present) uses an 81.0 kWh or 113 kWh pack. That high-voltage battery (400-430VDC) sits in the underbody between the axles, not under a seat. The eSprinter does still carry its own separate, conventional 12V accessory battery for door locks, lights, and infotainment, which is a different component from the propulsion pack. If you're not sure which van you have, this article is about the 12V starter battery only.

Where is the battery on a Mercedes Sprinter?

Main starter battery

On both generations, the main battery sits under the driver's seat, not under the hood. You reach it by removing the left front floor covering and a dedicated battery cover. Mercedes-Benz's own upfitter bulletin, Technical Bulletin 907 (dated November 10, 2019), describes this exact procedure, "remove left front floor covering" and "remove cover for systems battery," and cites the official repair-manual entries for it (AR68.80-D-0006TSR and AR54.10-D-0009TSR). This is true whether your van is a 2012 NCV3 or a current 907.

Jump-start terminals

The terminals under the hood are for jump-starting only. They connect to the main battery through a cable run, they are not a second battery and not an access point for replacing the battery itself.

Auxiliary battery

Some Sprinters have a second battery. Mercedes-Benz's own factory option (code E2M, with relay code E36) is a 12V, 70Ah battery mounted under the hood, documented in the same upfitter bulletin. Its ground line ties into a fuse (F32) at the driver's-seat fuse holder to support "park pawl emergency shift mode," which lets you shift an electronically-shifted Sprinter out of Park if the main battery dies. Separately, camper conversions and other upfits commonly add their own house or auxiliary battery under the passenger seat, a common installer choice rather than a factory-standard location. If you're not sure whether your van has one, check your build sheet for option code E2M, or look for a second battery box under the hood or under the passenger seat.

Which battery does my Sprinter use?

Sprinter fitment varies by model year, engine, and trim, so more than two group sizes show up in practice. Confirm your exact fitment before buying rather than assuming from the table below.

Across these group sizes, CCA runs roughly 700-900. If a listing shows a Sprinter-fitment battery rated well above that, double-check it against your actual group size before buying.

AGM isn't optional if your van shipped with it. OPTIMA's own Sprinter-specific battery page states that Mercedes' factory documentation (its "footnote 69") requires AGM chemistry, not merely recommends it. If your Sprinter left the factory with an AGM battery, the charging system is calibrated for it. Swapping in a flooded lead-acid battery isn't a safe substitute. For a broader look at AGM versus lithium for camper electrical systems, see our guide to Lithium vs AGM batteries.

OEM brand. VARTA is widely reported by multiple independent parts retailers as the battery brand Mercedes-Benz factory-fits, including on the Sprinter. This is well-corroborated across retailers but not confirmed by a single primary Mercedes-Benz statement, so treat it as strong secondary sourcing rather than an official spec. To cross-check current factory specs before buying an OEM replacement, Mercedes-Benz's own Sprinter cargo van page is the source to check.

Typical lifespan. A Mercedes-Benz dealership source, MB of Loveland, states Sprinter batteries typically last three to five years.

Is it actually the battery? Test before you replace

Slow cranking and dimming lights point to a battery problem, but they don't confirm it. Before you pull the seat and buy a new battery, test the one you have. A multimeter check of resting voltage, followed by a load test if that reading looks low, tells you whether the battery is actually failing or whether something else (a bad ground, a parasitic draw, a weak alternator) is the real cause. Many auto parts stores will run a load test for free. If you want to keep an eye on battery health going forward rather than waiting for symptoms, see our guide to RV battery monitors for van life.

What tools do I need to replace a Sprinter battery?

• 10mm socket wrench, for the terminal bolts
• A Torx bit set. On a 2016 NCV3 Sprinter, a hands-on writeup from Riding Roads and Trails documents 3 T-25 screws holding the floor trim and 4 T-27 screws holding the battery compartment cover; exact sizes can vary by model year, so check yours before you start
• A multimeter, to confirm the battery is actually the problem first
• Work gloves and eye protection

How to replace the main battery

1. Turn off the ignition and remove the key.
2. Slide the driver's seat all the way back for clearance.
3. Remove the left front floor covering (the floor mat or rubber liner).
4. Unscrew and remove the battery access panel with your Torx bits.
5. Disconnect the negative terminal first, using the 10mm socket.
6. Disconnect the positive terminal next.
7. Remove the battery retaining bracket.
8. Lift the old battery out. It's heavy and sits at an angle, so lift carefully.
9. Set the new battery in place, matching the correct group size and AGM chemistry for your van.
10. Reinstall the retaining bracket.
11. Reconnect the positive terminal first.
12. Reconnect the negative terminal last.
13. Reinstall the battery access panel and floor covering.
14. Start the van to confirm it cranks normally.

Most owners finish in 30 to 60 minutes. Corrosion on the old terminal clamps is the most common thing that adds extra time.

What is the battery main switch, and can I use it instead?

Both generations also have a battery main switch, also called an isolating switch, in the driver's footwell near or above the accelerator pedal. Mercedes-Benz's own Sprinter Operator's Manual documents this on NCV3 vans as old as 2012, 2014, and 2015, and a current Mercedes-Benz UK manual page for the 2024-model-year 907/MBUX Sprinter still covers a "battery main switch." It isn't limited to one generation. An owner-forum thread quoting the printed manual describes the mechanism: press a red tab and pull a ground-cable stud to de-energize the 12V system.

This switch is for isolating the electrical system, not for skipping the steps above. Mercedes' own guidance is to use it when the van will sit unused for a long stretch, or before certain service work, mainly to prevent parasitic drain. It doesn't give you access to the physical battery. Whether or not you've used this switch, replacing the battery itself still means removing the floor covering and battery cover described above. For general precautions when you're working on any part of the van's electrical system, see our van electrical safety standards and practices guide.

How much does it cost to replace a Sprinter battery?

RepairPal's cost estimator puts a dealer or shop battery replacement on a 2023-2025 Sprinter 2500 at roughly $379-$408, parts and labor combined. If you do it yourself, the battery itself is the main cost: a correct AGM group-size unit runs roughly $200-$300 at retail (Interstate's MTX-49/H8, for example, lists at $259.95). Installed cost through a shop can run higher than the DIY parts price, up to roughly $400-$600, depending on the shop and battery tier.

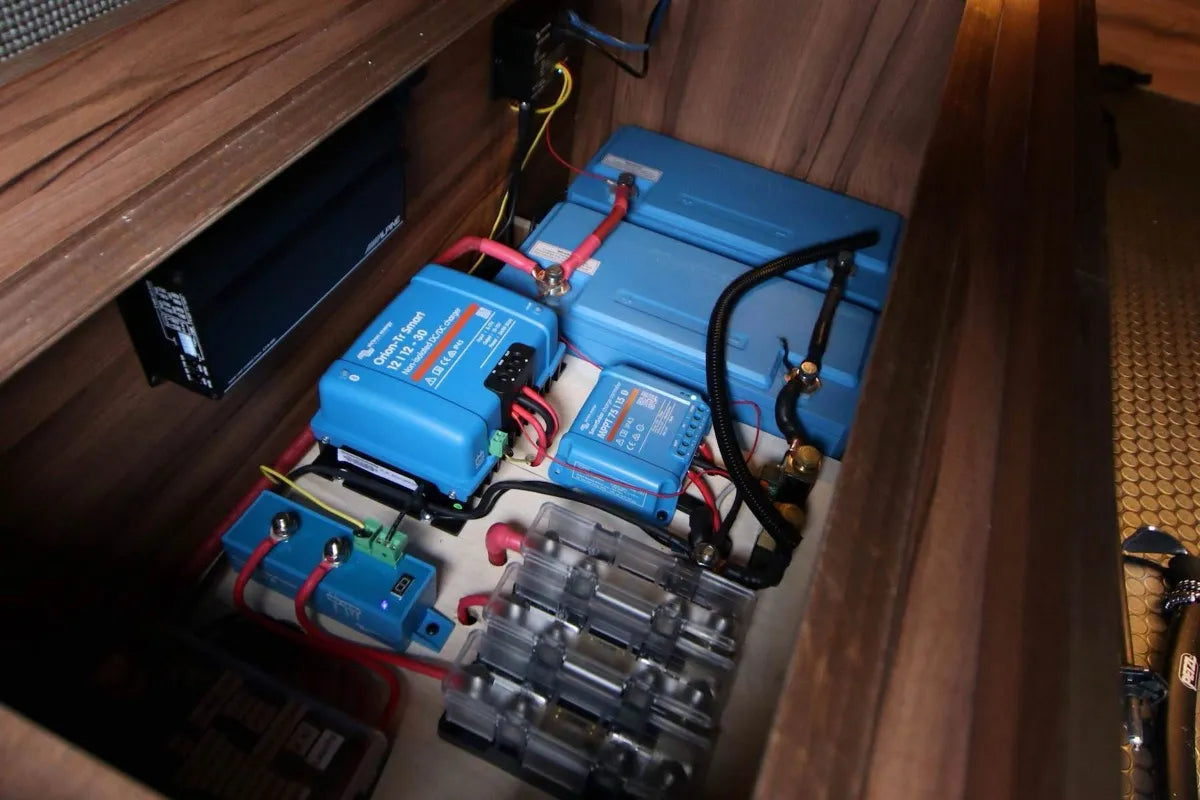

Adding or upgrading a house battery for a camper build

If you're building out a Sprinter as a camper, an auxiliary or house battery setup (beyond the factory E2M option described above) is a separate project from replacing the starter battery covered in this guide. For the power-system and solar side of that build, see our guides to van power and charging essentials and 4x4 camper van solar systems, and for the broader electrical system it plugs into, see our Camper Van Electrical System Essentials guide.

Keeping it maintained

A battery replacement is also a good checkpoint for the rest of your van's maintenance schedule. See the Mercedes Sprinter Maintenance Schedule for what else is due around the same mileage or age.

Key Fob Battery Replacement

2019 and Up

• Use a small flat tool to open the case, usually by prying at the seam indicated in the owner's manual.
• Replace with a CR2032 battery, matching the polarity (+ side up).
• Snap the case back together firmly and test lock/unlock before walking away from the van.

2018 and Older

• Slide the mechanical key out from the fob.
• Use the key or a small screwdriver to open the back panel.
• Replace battery (usually CR2025 or CR2032, check the original).
• Reassemble the fob and confirm the buttons respond.

This is one of the simplest fixes, yet it often gets overlooked. A weak key fob battery can cause intermittent locking issues or make push-button start systems act up, which can be confusing if you're troubleshooting other electrical problems.

Final Thoughts

The Mercedes-Benz Sprinter battery location can feel inconvenient at first, but it serves a purpose. Protection, safety, and durability all play a role in its placement.

Once you're familiar with where everything lives, the starter battery under the floor, the auxiliary battery under the seat, and the jump points under the hood, maintenance becomes straightforward.

At The Vansmith, we spend a lot of time working with these systems in real conditions. The goal is always the same, keep things reliable, simple, and ready for the road ahead, whether you're planning to build on a Sprinter 144 short wheelbase, exploring a Sprinter 170 long wheelbase layout, shopping for a finished Sprinter camper van for sale, or need expert help from our team with full camper conversions with showers.

FAQs

What size battery does a Sprinter use?

Most Sprinters use a Group 49 (H8) or Group 48 (H6) AGM battery. RockAuto's own fitment catalog for a 2017 Sprinter 2500 3.0L V6 diesel also lists Group 47 and Group 94R as valid AGM options for that configuration. The right one depends on your exact model year, engine, and trim, so check fitment before buying rather than assuming from a general list.

How long does a battery replacement take?

Most owners finish in 30 to 60 minutes. Budget closer to an hour your first time, and longer if corrosion has seized the terminal clamps.

How much does a new Sprinter battery cost?

A shop replacement on a 2023-2025 Sprinter 2500 runs roughly $379-$408 (parts and labor), per RepairPal's estimator. Buying just the battery and doing it yourself runs closer to $200-$300 at retail.

What happens if I disconnect the positive terminal first?

You risk a short circuit. If a wrench or tool touches any grounded metal on the van while the positive terminal is still connected, it completes a circuit straight through the battery. Disconnecting the negative terminal first removes that risk before you touch the positive side.

How do I know if my Sprinter has a factory auxiliary battery?

Check your build sheet for option code E2M. Physically, look for a second battery under the hood (the factory location) in addition to the main one under the driver's seat. A battery under the passenger seat is more often an aftermarket addition from a camper conversion than the factory option.

What tools do I need before I start?

A 10mm socket wrench, a Torx bit set (T-25 and T-27 are the sizes reported for a 2016 NCV3, but check your van), and a multimeter to confirm the battery is actually the problem before you buy a replacement.
