An inverter for RV use becomes important when you want household-style AC power away from shore power. At The Vansmith, we see travelers ask about inverters when they are planning longer trips, adding appliances, or trying to make better use of their house batteries. The right choice depends on your battery bank, appliances, charging sources, and daily use.
What Does an Inverter Do in an RV?
An RV inverter takes DC electricity stored in the house batteries and changes it into AC electricity for compatible appliances and outlets. In a van, that means battery power can operate equipment that normally expects household-style 120V AC power.
The inverter does not create additional energy. It changes the type of electricity available to the appliance. The larger the AC load, the more power the batteries must provide.
Core Functions
Powers AC Outlets: An inverter supplies 120V AC power to selected outlets when shore power is not available.
Runs Small Appliances: Depending on the inverter size and battery capacity, it can power laptops, televisions, refrigerators, coffee makers, microwaves, and other AC equipment.
Enables Off-Grid Living: An inverter makes battery-powered AC use possible when you are camping away from electrical hookups. This is useful for remote campsites, trailheads, ski areas, and long travel days.
For a well-planned van, the goal is not to install the biggest inverter available. It is to provide enough power for the appliances you actually use without creating unnecessary battery demand.
How an RV Inverter Works
So, how does an inverter work in an RV? The process starts with the house battery bank. Batteries provide DC electricity, while most household appliances require AC electricity.
The inverter processes the battery's DC output and produces AC power at the voltage required by the connected equipment. A quality pure sine wave inverter creates a clean waveform that works well with electronics and motor-driven appliances.
DC to AC Conversion
A 12V battery supplies direct current. An inverter uses electronic switching and control circuitry to create alternating current.
This is why a 12 volt inverter for RV applications needs to be matched carefully to the battery system. At high wattages, the DC current can become very large.
For example, a 2,000W AC load can require well over 160 amps from a 12V battery after accounting for inverter losses. A 3,000W load can require more than 250 amps.
Pass-Through Capability
Many inverter/chargers include AC pass-through. When shore power is available, incoming AC power can supply the van's AC circuits while the system charges the house batteries.
A well-planned power system can also make daily van dwelling easier. When shore power is removed, the inverter can take over automatically. This avoids manually moving appliance plugs between different power sources. For a deeper look at this setup, see Victron MultiPlus for Van Conversions: Features, Review & Install Tips.
How RV Inverters Work vs. Converters
The terms inverter and converter are often confused. They perform different jobs.
Inverters
An inverter changes DC battery power into AC power. It allows your house batteries to operate AC appliances.
Converters
A converter changes incoming AC power into DC power. In an RV, it can supply DC loads and charge the house batteries when connected to shore power.
Inverter/Chargers
An inverter/charger combines these functions. It can provide AC power from the battery bank and charge the batteries when an AC charging source is available.
For travelers planning a complete electrical system, understanding this difference is important. The inverter handles AC loads, while charging equipment replenishes the battery bank.
Types of Inverters
Different power inverters for RVs are designed for different electrical systems. The right choice depends on power demand, battery voltage, charging sources, installation space, and the type of equipment you want to run.
Pure Sine Wave
Pure sine wave inverters produce an AC waveform similar to utility power. They are generally the best choice for modern camper vans.
They work well with electronics, refrigerators, chargers, fans, and appliances with motors. For a premium van electrical system, we typically favor pure sine wave equipment because it provides broad appliance compatibility.
Modified Sine Wave
Modified sine wave inverters are usually less expensive, but they can be less compatible with certain appliances.
Some equipment may run with additional noise or heat. Other equipment may not operate correctly. The savings may not justify those limitations in a frequently used van.
Pass-Through / Integrated
Pass-through inverters can connect shore power and battery-powered inverter power to the same AC system.
Integrated inverter/chargers can also include battery charging and automatic transfer functions. This can reduce the number of separate electrical components.
Hybrid Inverters
Hybrid inverters combine multiple electrical functions. Depending on the model, those functions can include inverter operation, battery charging, solar management, and energy monitoring.
They can make sense for larger electrical systems with several charging sources.
Transformer (LF) vs. Transformerless (HF) Inverters
Low-frequency designs use larger transformers and can provide strong surge performance for demanding loads.
High-frequency designs can be smaller and lighter. The better option depends on the required surge capacity, available space, efficiency, and intended loads.
Parallel or Stackable Inverters
Some inverter systems allow multiple units to operate together. This can increase available capacity for larger electrical systems.
For most camper vans, however, one properly sized inverter is simpler. Additional units add wiring, controls, protection, and installation considerations.
Split Phase Inverters
Split-phase systems provide two AC legs and are used for larger electrical systems that require 240V equipment.
Most camper vans do not need split-phase power. Standard 120V AC equipment covers the majority of van appliances.
Key Benefits
A properly sized inverter can make a van's electrical system much more flexible. The benefits come from matching the equipment to the rest of the system.
Low Power Usage
Modern pure sine wave inverters can operate efficiently, although every inverter consumes some energy during operation.
Victron lists maximum efficiency of up to 93% for the MultiPlus-II 12/3000/120-50 under specified operating conditions.
No Soft Starter Needed
A properly sized inverter may start some motor-driven equipment without a separate soft starter.
That does not mean every air conditioner will start easily. Compressor startup demand, inverter surge capacity, battery voltage, temperature, and wiring all affect performance.
Quieter Operation
Battery-powered AC equipment can reduce the need to run a generator. For quiet campsites and overnight stops, that can be a meaningful advantage.
Better Dehumidification
Air conditioning removes moisture while it operates. An inverter can make AC operation possible away from shore power if the inverter, battery bank, and AC unit are correctly matched.
How to Match an Inverter with Your RV's Battery Bank?
The inverter and battery bank should be selected as a single system.
A large inverter can demand hundreds of amps from a 12V battery bank. The batteries, battery management system, cables, fuses, busbars, and connections all need to support that current.
Before selecting an RV power inverter, check:
- Battery voltage
- Usable battery capacity
- Maximum continuous battery discharge
- Battery management system limits
- Inverter continuous output
- Inverter surge rating
- Cable size
- Fuse rating
- Expected simultaneous loads
For example, installing a 3,000W inverter does not mean a small 12V battery can safely supply 3,000W. The battery bank must be capable of delivering the required current.
At The Vansmith, this is where electrical planning matters. A good system balances capacity with the actual way the van will be used.
Powering an RV Inverter with Solar Panels
Solar panels and inverters perform different jobs.
Solar panels produce DC electricity. A solar charge controller manages that energy and sends it to the battery bank. The inverter then draws energy from the batteries when AC power is required.
How Solar Panels Enhance RV Power Systems
Solar can extend battery runtime and reduce dependence on shore power. It is especially useful when traveling for several days without electrical hookups.
Solar output changes with weather, season, panel angle, shade, and location. It should therefore be treated as part of a larger charging strategy rather than the only source of energy. For a closer look at how solar, batteries, and alternator charging work together, see 4x4 Camper Van Solar Systems Explained: Batteries and Alternators.
What Size Do You Need?
The best inverter for RV use depends on your expected loads. Start by identifying which appliances you want to run and which ones may operate at the same time.
1,000 Watts
A 1,000W inverter can work well for lighter AC loads.
Typical uses include:
- Laptops
- TVs
- Chargers
- Small kitchen appliances
- Low-power electronics
It can be a sensible choice when AC power is occasional rather than central to daily van life.
2,000 Watts
A 2,000W inverter is a useful middle ground for many camper vans.
It can support a microwave, refrigerator, coffee maker, electronics, and other common loads. However, simultaneous loads still need to remain within the inverter and battery limits.
3,000 Watts
A 3,000W inverter provides more headroom for larger AC loads.
It can make sense when you want to run several appliances or need higher startup capacity. It may also be suitable for some air-conditioning systems when the battery bank and electrical system are designed for the demand.
Side-by-Side Comparison
|
Feature |
3000W Inverter Charger |
2000W Inverter |
1250W Inverter |
|
Continuous Power |
Up to about 3,000W, depending on model |
About 1,800 to 2,000W |
About 1,250W |
|
Surge Power |
Often 5,000W or more |
Often 2,500 to 3,000W |
Model dependent |
|
Runs RV Microwave |
Yes, with adequate battery support |
Usually |
Depends on microwave |
|
Runs RV AC |
Possible with a properly designed system |
Usually limited |
Generally not recommended |
|
Runs Residential Fridge |
Yes |
Yes |
Usually |
|
Shore Power Charger |
Yes |
No, unless integrated |
No, unless integrated |
|
Best RV Type |
Higher-demand van systems |
Most mid-size van systems |
Light-duty AC systems |
Actual specifications vary by model. For example, the Xantrex PROwatt SW 2000 is rated for 1,800W continuous power and 3,000W peak power.
Popular Options and Pricing
Choosing between budget and premium inverters for RVs often comes down to how integrated you want the electrical system to be.
Budget/Mid-Range
Stand-alone pure sine wave inverters can be a practical choice when the van already has separate battery charging and shore-power equipment.
They can also make sense when AC power is important but an integrated inverter/charger is not necessary.
High-End Inverter/Chargers
Higher-end inverter/chargers combine inverter operation, battery charging, shore-power pass-through, and other control functions.
The higher purchase price can be worthwhile when the electrical system needs to handle multiple charging sources and larger AC loads.
Top All-in-One RV Inverter Choices
Victron MultiPlus II 3000 (Best Overall):
Type: 12V pure sine wave inverter/charger
Pros:
- Strong continuous output
- High surge capacity
- Integrated battery charging
- Shore-power pass-through
- PowerAssist and PowerControl
- Broad monitoring ecosystem
Cons:
- Higher upfront cost
- Requires careful electrical planning
- Larger than a basic stand-alone inverter
Price: Pricing varies by dealer and market. Victron's published regional pricing should be checked for the current figure.
Why buy it: The MultiPlus-II is a strong option when the inverter, charger, battery bank, and shore-power system need to work together. It is particularly useful when system integration matters as much as raw wattage.
Victron MultiPlus for Van Conversions: Features, Review & Install Tips
Ionic Electronics 3000W 12V Combo (Best True All-in-One 12V):
Type: 12V inverter/charger combination
Pros:
- Combines several electrical functions
- Designed for 12V systems
- Can reduce the number of separate components
Cons:
- Exact specifications depend on the model
- Availability can vary
- Requires compatible battery and wiring
Price: Check current manufacturer or dealer pricing.
Why buy it: It can be useful when you want an integrated 12V electrical system rather than separate inverter and charging components.
Sungold Power 48V Series (Best Budget High-Power):
Type: 48V high-power inverter system
Pros:
- Higher battery voltage reduces DC current for the same power
- Suitable for larger electrical systems
- Multiple system configurations
Cons:
- More complex than a typical 12V system
- Requires compatible 48V batteries and charging equipment
- Usually unnecessary for a standard camper van
Price: Varies by model.
Why buy it: A 48V system can make sense for a high-demand electrical setup where lower DC current is a priority.
Best All-in-One Inverter/Charger: Xantrex Freedom XC Pro 3000
Type: 12V pure sine wave inverter/charger
Pros:
- 3,000W continuous output
- 6,000W surge capacity for up to five seconds
- Integrated battery charger
- Shore-power transfer
- Bluetooth monitoring
Cons:
- High DC current at full output
- Requires substantial battery and cable capacity
- More expensive than a basic stand-alone inverter
Price: Check current dealer pricing.
Why buy it: It is a practical option for a 12V electrical system that needs significant AC capacity and integrated charging.
Best Pure Sine Wave Inverter (Stand-alone): Xantrex PROwatt 2000 SW
Type: Stand-alone pure sine wave inverter
Pros:
- 1,800W continuous output
- 3,000W peak output
- 12V input
- Suitable for common AC appliances
- Straightforward stand-alone design
Cons:
- No integrated battery charger
- No integrated shore-power transfer
- Requires separate charging equipment
Price: Check current dealer pricing.
Why buy it: It can be a good choice when the van already has separate charging and shore-power equipment.
What Are the Downsides of Inverters?
Inverters add useful AC capability, but there are trade-offs.
Energy Efficiency Losses
An inverter cannot deliver all the battery's stored energy to an AC appliance. Some energy is lost during the DC-to-AC process and becomes heat.
Your Inverter Consumes Power When On And Idle
The inverter can consume energy even when no appliance is connected. That is why it can be useful to turn it off when AC power is not needed.
Depletes Battery Faster
High-power AC appliances can draw significant energy from the batteries.
A microwave may only operate for a few minutes, but a large AC load can create a high DC current demand during that period.
Initial Cost
A quality pure sine wave inverter costs more than a basic modified sine wave model.
Inverter/chargers cost more because they combine several functions into one unit.
Installation Complexity
Larger power inverters for RVs require proper cable sizing, fusing, grounding, AC protection, ventilation, and battery connections.
Installation errors can create serious electrical and fire risks.
Heat Production
Some battery energy becomes heat during inverter operation. Proper airflow and sensible mounting help the system operate reliably.

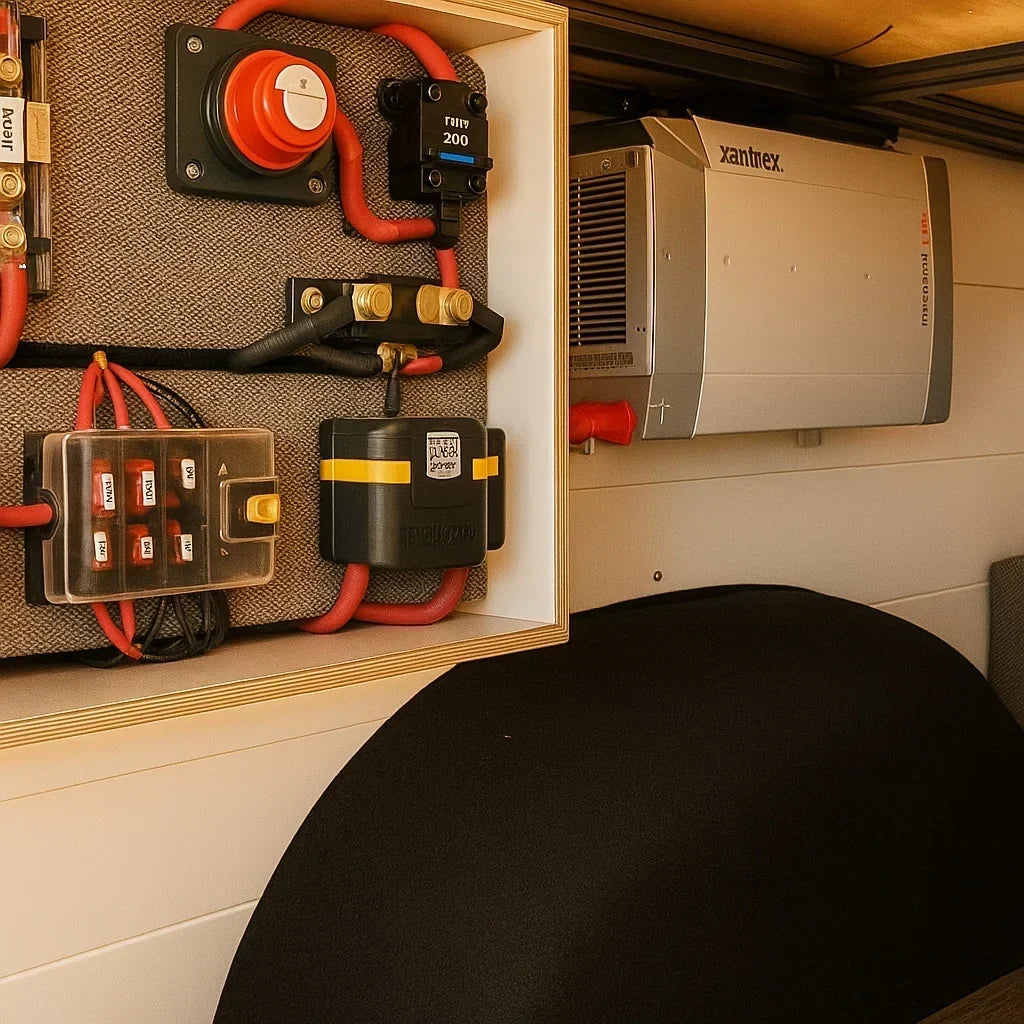

Installation and Safety Tips
Placement:
Mount the inverter in a dry, protected area with adequate airflow.
Keep it away from water, excessive heat, and areas where tools or cargo could damage the equipment.
Battery Pairing:
Match the inverter to the battery voltage and discharge capability.
A large 12V inverter can demand several hundred amps. The battery management system, cables, busbars, fuses, and terminals must all be rated for the expected current.
For electrical troubleshooting, upgrades, and other system work, see Installations & Repairs.
Shut Down in Storage:
If the van will sit for an extended period, turn off unnecessary inverter functions and AC loads.
Even when no appliance is running, an inverter can draw some power from the battery bank.
At The Vansmith, we treat the electrical system as part of the entire van rather than an isolated component. After more than a decade of hands-on adventure van experience, we have seen how battery capacity, charging sources, cable routing, and inverter selection affect daily use over time.
Our work is rooted in Colorado, where vans see real temperature swings, mountain travel, ski trips, climbing weekends, bike trips, and long stretches away from hookups. Those conditions make thoughtful electrical planning more important than simply choosing the highest wattage.
That is also why personalized attention and ongoing support matter. The electrical system should fit the way you travel, and it should remain understandable when you need service later.
If you are comparing vehicles, our Camper van for sale options can be evaluated with the electrical system in mind, not just the interior layout.
For travelers considering a Ford platform, see Ford van conversion and Ford Transit for sale for relevant vehicle options.
Those comparing Sprinter platforms can also review Sprinter van conversion and Sprinter camper for sale.
For shoppers looking more broadly across the market, Camper Van For Sale In USA provides another starting point.
If you are looking for a four-wheel-drive platform, see 4x4 rv for sale.
For owners planning changes to their van, Customize Your Van can be a useful starting point for discussing available options.
Final Takeaway
The best inverter for RV use is not automatically the largest or most expensive model. It is the inverter that fits the battery bank, appliances, charging sources, wiring, and way you travel.
For many vans, a 2,000W pure sine wave inverter offers a useful balance of capacity and efficiency. Larger electrical systems may benefit from a 3,000W inverter/charger, while lighter systems may need much less.
At The Vansmith, we focus on the complete electrical system rather than one component. The result should be simple to use, properly matched to the van, and ready for the conditions you actually encounter on the road.
FAQs
What size inverter do I need for my RV?
A 2,000W inverter is a practical starting point for many camper vans. A 1,000W unit can handle lighter AC loads, while a 3,000W unit provides more capacity for larger appliances.
The battery bank must also be able to supply the inverter's DC current.
Can I run my RV microwave on an inverter?
Yes. Many RV microwaves can run from a 2,000W or larger pure sine wave inverter.
Check the microwave's actual electrical input rating rather than only its cooking wattage. The battery bank and wiring must also support the load.
How long will a 12V battery last with an inverter?
Runtime depends on battery capacity, usable state of charge, inverter efficiency, and appliance demand.
For example, a nominal 100Ah 12V battery contains about 1,200Wh of stored energy before accounting for usable capacity and inverter losses. A 1,000W load can therefore drain a small battery bank quickly.
What can a 3000-watt inverter run in an RV?
A 3,000W inverter can support many combinations of appliances, including a microwave, refrigerator, coffee maker, electronics, and some air-conditioning systems.
The exact combination depends on simultaneous load, startup demand, battery capacity, and inverter surge capability.
What's the difference between an RV converter and an inverter?
An inverter changes DC battery power into AC power for household appliances.
A converter changes incoming AC power into DC power for RV loads and battery charging.
An inverter/charger combines both functions and can also provide automatic shore-power pass-through.
