The Victron MultiPlus is a popular inverter/charger for van conversions, offering up to 3,000 VA of AC power and smart charging for off-grid living. Its all-in-one design simplifies wiring, gives you clean power for sensitive electronics, and keeps your van running whether you’re on shore, generator, or battery. For van builders who want reliable power, smart features, and long-term support, the MultiPlus is a solid choice-especially when paired with a thoughtful layout and professional install.
At The Vansmith, our system of choice is EcoFlow. It's a more integrated solution that has provided excellent performance and backup service since we switched to them. While Victron remains a respected option, we've found EcoFlow systems to be a better fit for most of our customers' needs.
What Is the Victron MultiPlus and Why Use It in a Van?
The Victron MultiPlus is a combo inverter and battery charger, built with a transfer switch for automatic source switching. Models range from 800 VA to 5,000 VA, but the 12V/3000/120 version is the sweet spot for most van builds. This model works well with the lithium battery banks many use for modern van life, making it a common choice among Sprinter and Transit conversions.
The MultiPlus can swap between shore power, generator, or inverter on the fly. There’s no flicker or downtime for your devices-it's as smooth as plugging into your home wall socket. MultiPlus also brings PowerAssist, letting the inverter supplement weak campground hookups with a boost from your batteries, so you can run bigger appliances without tripping breakers. This is helpful for off-grid cooking or running an A/C when you’re far from civilization.
Remote monitoring is included. Whether you use Bluetooth, a VE.Bus interface, or a GX device, you can check your system from your phone or a wall panel. This means you’re never guessing how much juice you have left or which source is powering your appliances. Compared to running separate inverter and charger units, the MultiPlus cuts down on wiring, saves space, and reduces points of failure-a plus for van reliability and serviceability. For more on how this fits into a complete build, check out how we customize your van at The Vansmith.
Key Features of the Victron MultiPlus Series
The MultiPlus delivers pure sine wave AC, which means your laptops, induction cooktops, and espresso machines get steady, clean power. Sensitive electronics run smoothly, unlike with some cheaper modified sine wave inverters. The built-in transfer switch flips power sources quickly, so you won’t lose a Zoom call or risk a fridge reset if you move from solar to shore.
PowerControl is another tool. You can set a max shore power draw (say, 15A or 30A), stopping campground breakers from tripping. For those who want to fine-tune, remote monitoring and programming are available via the VictronConnect app, or advanced panels like Color Control GX or Cerbo GX. This is good for tech-forward van owners who want real-time data.
The MultiPlus supports many battery types-lithium, AGM, and GEL. You can tweak charge profiles for each, keeping your batteries healthy and warranties intact. It also works in tough conditions, with a wide operating temperature range from -13°F to 140°F, suitable for Colorado winters or desert summers. Firmware updates and troubleshooting are simple through USB or remote connection, which means less time in the shop and more time on the road. For more details on these features, see Victron’s inverter/charger overview or this in-depth MultiPlus review.
Benefits for Van Conversions and Off-Grid Use
A 3,000 VA (2,400 W continuous) MultiPlus can power most of the appliances you’d want in a van, like an induction stove, blender, or even a small air conditioner-if your battery bank is up to the task. The charger side of the MultiPlus pumps up to 120A into your batteries from shore or generator, so you can recharge quickly between adventures. PowerAssist adds flexibility, combining shore and inverter power so you can run high-draw gear even on weak hookups.
Safety is a core strength: the MultiPlus is UL 1741 certified, which covers North American standards for mobile and residential use. Integration is smooth, too-it works with solar charge controllers, alternator chargers, and battery monitors found in many van builds. You get a cleaner, more serviceable install because there’s no need for a separate transfer switch or a tangle of extra wires.
The MultiPlus has wide support among professional installers and a global network for service, making it a reasonable investment for long-haul travelers. That peace of mind is one reason some use it in Sprinter conversions and Transit conversions at The Vansmith.
Victron MultiPlus Installation: What Van Owners Need to Know
Proper installation is key to getting the most from your MultiPlus-and keeping things safe. The unit should always go in a dry, well-ventilated spot, away from direct exposure to batteries and with at least 4 inches of clearance above and below for airflow. Mounting it on a vertical, vibration-damped surface (like plywood or metal) helps it cope with road bumps and the daily shake of van travel. For official details, see Victron’s install guide.
Wiring matters-a lot. For a 3kVA unit, you’ll need heavy-gauge cables (often doubled 1/0 AWG) and a 400A Class T fuse for safe DC input. This keeps voltage drop low and prevents overheating. All AC wiring should use stranded marine-grade wire and proper strain relief, following ABYC and NEC codes. Optional connections, like a remote on/off switch, temperature sensor, or voltage sense wires, can improve charging and make your life easier in extreme conditions.
Victron’s manuals provide clear wiring diagrams for integrating the MultiPlus with solar, alternator, and battery monitoring systems-these are a must-read for any DIYer. Skilled DIYers can tackle a MultiPlus install, but professional help is recommended if you want everything code-compliant and bulletproof. At The Vansmith, we make sure every install is safe, reliable, and easy to service, whether it’s for a new build or an upgrade. To learn more about our process, visit Our Process.
Programming and Configuring Your MultiPlus
Programming your MultiPlus starts with the VictronConnect app or a VE.Bus interface. Here, you set your battery type (lithium, AGM, or GEL), charge current, and PowerAssist levels. It’s important to limit shore power draw to avoid tripping campground breakers-most users set this to 15A or 30A. Custom charge profiles are vital for battery health and warranty, especially with lithium banks.
You can monitor and control your MultiPlus remotely via Bluetooth, WiFi (with GX devices), or wired panels, getting live data and alerts. Firmware updates are simple-just plug in via USB or use Victron’s online tools. It’s wise to program your MultiPlus before first use and update it if your system changes. Every Vansmith build gets a MultiPlus programmed to match its battery chemistry and expected loads, so you don’t have to sweat the details.
Safety, Compliance, and Maintenance Considerations
Always disconnect both battery and AC power before working on your system. Mistakes here can cause serious injury or fire. Ventilation is critical-don’t box your MultiPlus into a tight, unvented cabinet, or you’ll risk overheating and reduced lifespan. All wiring must be protected with the right fuses or breakers, as shown in Victron’s diagrams, and installers should follow ABYC E-11 and NEC Article 551 standards for mobile electrical setups.
Routine checks-like tightening cables, inspecting fuses, and updating firmware-should happen every 6-12 months. The MultiPlus’s UL 1741 certification means it’s built to North American standards, giving you extra confidence in its safety for van and RV use. At The Vansmith, we offer troubleshooting and upgrades for MultiPlus systems, so you’re never stuck if issues pop up or your needs change.
Victron MultiPlus vs Other Inverter/Chargers for Vans
Victron MultiPlus units come in more sizes than most rivals-ranging from 800 VA for minimalists to 5,000 VA for serious off-grid setups. This flexibility means you can build anything from a compact weekend van to a full-time rolling home. Compared to competitors like Xantrex Freedom or Renogy inverter/chargers, the MultiPlus’s PowerAssist is a helpful feature, letting you run high-wattage gear even on weak hookups. Most rivals don’t offer this feature.
Pure sine wave output is another plus for the MultiPlus. Some lower-priced units use modified sine wave, which can cause issues or even damage sensitive electronics. Victron’s track record in the marine, RV, and off-grid markets means you get proven reliability and global support. Bluetooth and GX device remote management put Victron ahead in terms of monitoring and troubleshooting.
The upfront cost is higher-expect to pay $1,300-$2,000 for a 2-3 kVA unit-but you save on installation labor and long-term repairs since the MultiPlus combines functions and is built to last. Unlike some brands, Victron supports the latest lithium batteries without proprietary restrictions or risky workarounds. For a closer look at comparisons, read this MultiPlus review and comparison.
Real-World Experiences: MultiPlus in Sprinter and Transit Builds
In van builds, a 3kVA MultiPlus is often matched with 300-400 Ah of lithium batteries to support induction cooking and climate control. Owners appreciate the transition between solar-charged batteries and shore power, noting there’s no drop in power when switching sources. Professional wiring diagrams from Victron-which you can find in their van/motorhome manual-show how to integrate alternator chargers, solar, and battery monitors for a system that just works.
Sprinter and Transit vans with properly set up MultiPlus systems can deliver up to 2,400 W continuous AC output-enough for remote work, family meals, or even a night with the A/C running. The MultiPlus’s compact size (about 14 x 10 x 8 inches for the 3kVA version) means it tucks easily under a bench or in a utility bay, especially in high-roof layouts like our DUO XL or Family XL builds. Owners often mention the peace of mind that comes from being able to troubleshoot and update the system remotely, keeping downtime to a minimum on long trips.
Cost, Value, and Long-Term Support
The Victron MultiPlus 12/3000/120 retails for around $1,500-$1,900 as of 2026. Smaller models are more affordable, but many van lifers opt for the 3kVA for flexibility. Professional installation typically adds $1,000-$2,000, depending on wiring and system complexity, but this investment pays off in reliability and performance. MultiPlus inverters are designed to last 10+ years if you keep them cool and maintained. They come with a standard 5-year warranty, which you can extend by registering the product.
Global support and easy access to parts make the MultiPlus a good option for travelers who don’t want to worry about repairs in remote places. The integrated design also means fewer parts to break or replace over time. The Vansmith’s install team has years of experience with MultiPlus systems on both Sprinter and Transit platforms, ensuring your system is built for the long haul. For more on our van build philosophy, visit the Foundation builds page.
Integrating Victron MultiPlus with a Complete Van Power System
A van power system usually combines a MultiPlus inverter/charger, a 300-600 Ah lithium battery bank, solar charge controller, DC-DC alternator charger, and a monitoring panel. The MultiPlus’s automatic transfer switch coordinates power from shore, generator, or inverter, so you’re always using the best available source. For a closer look at how this all ties together, see this van electrics guide.
Victron’s Color Control GX or Cerbo GX panels give you real-time system data and allow remote troubleshooting. Solar panels (typically 400-800 W for van builds) feed directly to the batteries, which the MultiPlus manages for optimal charge. When you’re driving, a DC-DC charger like the Victron Orion-Tr keeps the batteries topped up, supplementing solar and shore charging. Detailed system diagrams from Victron show best practices for wiring, fuse placement, and panel setup-these are especially useful for custom layouts or troubleshooting. For examples, see the Vansmith DIY blog.

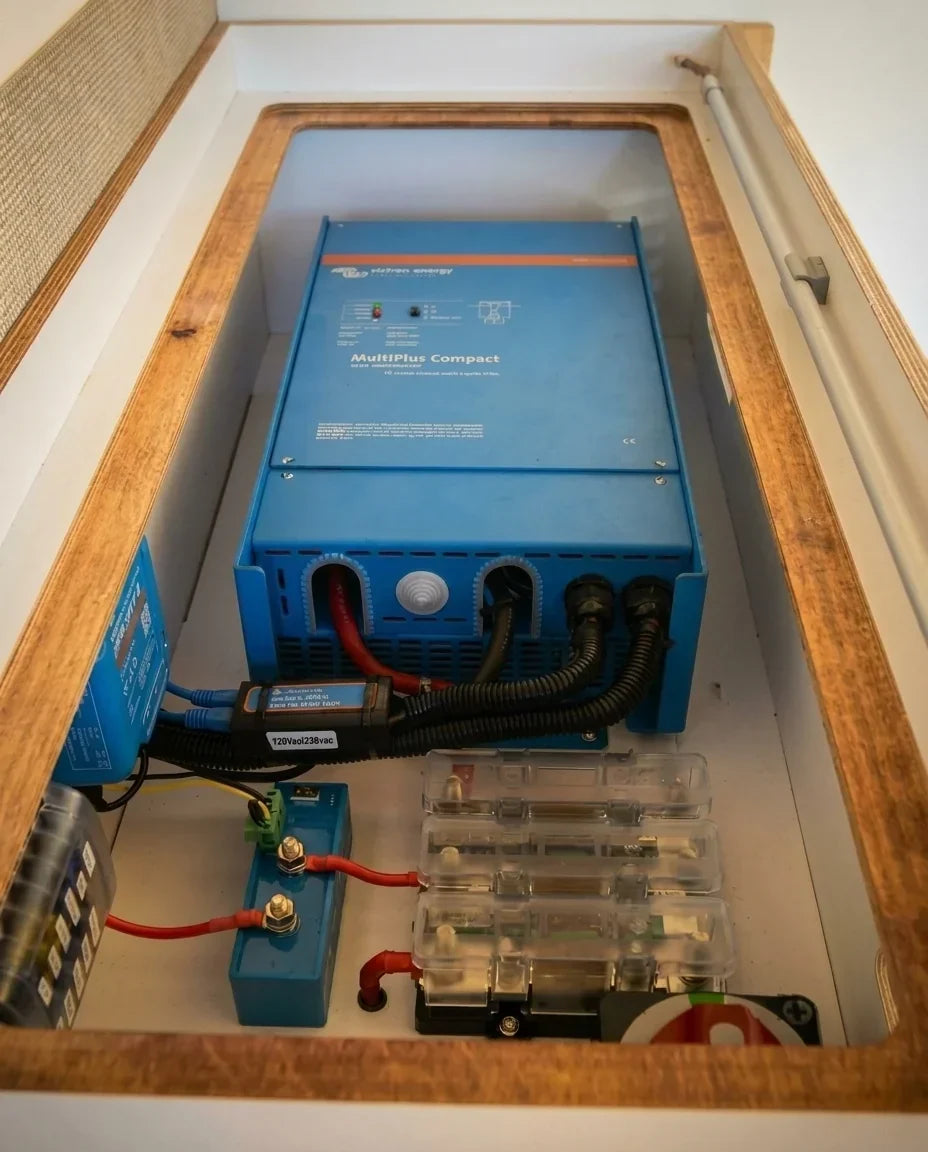

At The Vansmith, each build features custom cabinetry and airflow management to keep the MultiPlus accessible and cool, with hidden panels for service and upgrades. This is part of our commitment to long-term reliability and ease of use for every van owner.
Monitoring, Troubleshooting, and Upgrading Your System
The Victron Battery Monitor (BMV-712) or SmartShunt are useful for tracking your battery’s state of charge, helping you avoid surprises when off-grid. Remote access via Victron’s VRM Portal allows you to diagnose problems and push firmware updates from anywhere with a connection. Common troubleshooting issues, like low voltage shutdowns, often come down to undersized cables or loose connections, which are easy to fix if you follow Victron’s install guidelines.
When it’s time to upgrade-maybe adding more solar or changing battery types-the MultiPlus’s programmable settings and modular design make the transition smooth. Firmware updates and system resets can solve most software bugs without pulling the unit out of your van. We recommend regular system checks and updates every 6-12 months, and The Vansmith offers both on-site and remote troubleshooting for MultiPlus systems.
Example System Layouts and Wiring Diagrams
Victron’s downloadable van/motorhome manual has three wiring diagrams for MultiPlus systems using drop-in lithium batteries. These diagrams show how to tie together solar, alternator, shore power, battery monitors, and remote panels for a true all-in-one solution. Each schematic highlights fuse sizing, cable gauge, and recommended connection points to ensure code-compliance and safety.
We adapt these diagrams to fit custom cabinetry and layouts for Sprinter and Transit conversions-so you get a safe, tidy, and easy-to-service system. The diagrams are clear enough for DIY reference but detailed enough for pro installers, reducing wiring mistakes that could cause faults or fire hazards. All diagrams are based on ABYC and NEC mobile electrical standards, ensuring you’re building to the right codes. For more resources and inspiration, check out our van build blog or contact us for a custom consult.
For more information, check out How to Install a MultiPlus Inverter/Charger? - Victron Energy.
FAQ
What makes the Victron MultiPlus better than other inverter/chargers for van conversions?
The Victron MultiPlus stands out because of features like PowerAssist, which lets you supplement shore power with your battery bank. Its pure sine wave output protects delicate electronics, and remote monitoring adds a layer of confidence. Safety certifications and a solid reliability record make it a respected choice for van builds. For more, see this detailed review.
How much power can a Victron MultiPlus 12/3000/120 provide in a camper van?
The MultiPlus 12/3000/120 supplies up to 3,000 VA (about 2,400 W continuous) AC power. This is enough for running most household appliances you’d want in a van, from induction cooktops to small air conditioners-as long as your battery bank can keep up. For more on matching batteries to your needs, consult the MultiPlus review.
Is the Victron MultiPlus difficult to install in a Sprinter or Transit van?
While the MultiPlus is designed for pro-grade installs, skilled DIYers can handle it with careful planning. Follow Victron’s manuals to the letter, make sure you use heavy-gauge wiring, and always provide good ventilation. If in doubt, call in a pro. Victron’s guide on how to install a MultiPlus is a great starting point.
Can the Victron MultiPlus be used with lithium batteries in van conversions?
Yes-the MultiPlus is fully compatible with lithium, AGM, and GEL batteries. You can set custom charge profiles, which is key to keeping your lithium bank safe and warranty-friendly. For the official word, see Victron’s compatibility guide.
What is the typical cost to install a Victron MultiPlus system in a van?
Expect to pay between $1,500 and $1,900 for a MultiPlus 12/3000/120, with pro installation adding $1,000-$2,000 depending on system complexity. While it’s a bigger investment upfront, the reliability and features make it worthwhile for long-term van life. Details are available in this MultiPlus cost breakdown.
How does the Victron MultiPlus support off-grid van life?
The MultiPlus makes off-grid living possible by charging batteries from shore power, generator, or alternator, running high-draw appliances, and switching between sources smoothly. You get dependable power wherever your van takes you. For more insights, check out this Van Electrics article.
