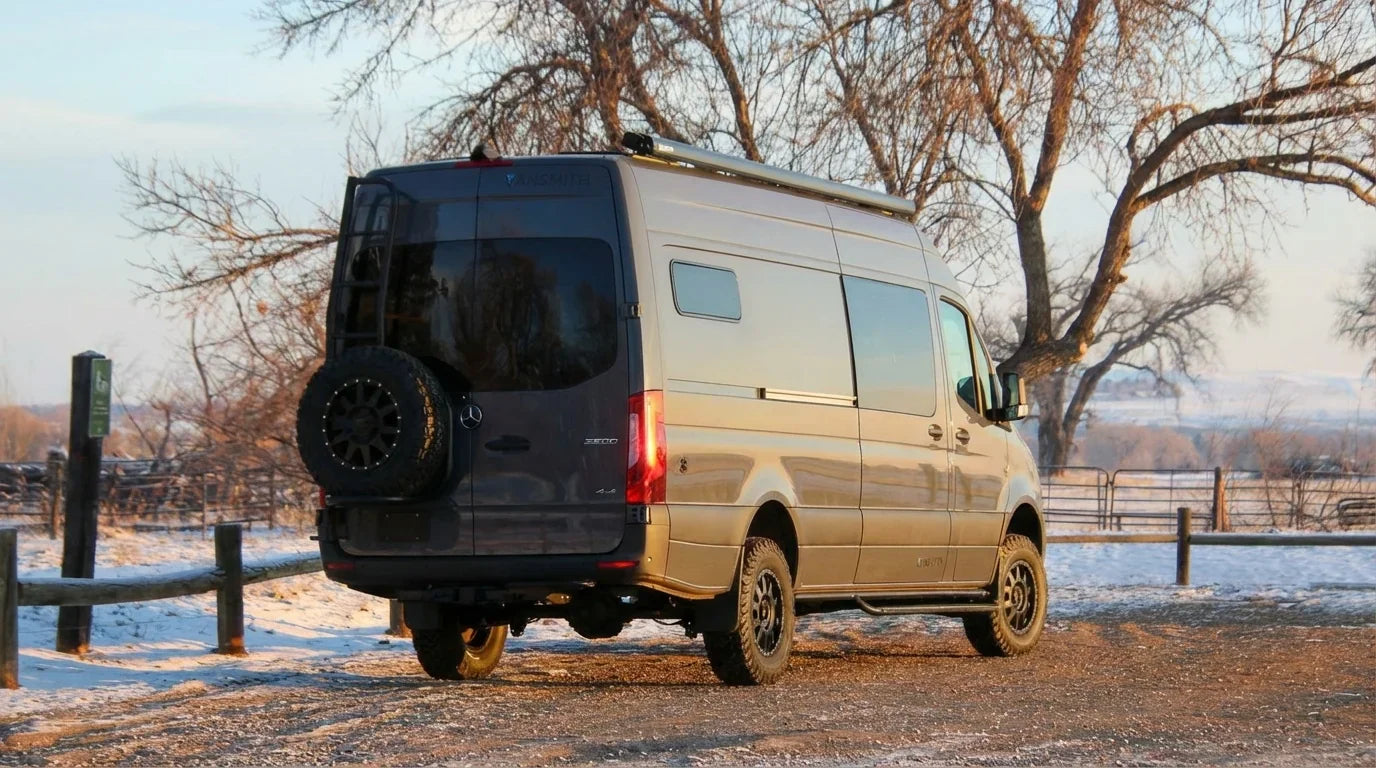

When shopping for a 4x4 camper van or planning an off-road adventure build, one specification often gets more attention than any other: ground clearance.
However, many van owners make the mistake of relying solely on the manufacturer's brochure. The reality is that the ground clearance of a fully built camper van can be dramatically different from the published factory numbers.
Once you add cabinetry, batteries, water tanks, solar equipment, suspension modifications, recovery gear, and camping supplies, the actual clearance under your van may be significantly lower than expected.
Whether you're exploring a 4x4 RV for sale or upgrading an existing adventure rig, understanding ground clearance, approach angle, departure angle, and breakover angle is essential for safe off-road travel.
In this guide, we'll explain how to measure ground clearance correctly, what approach angles you actually need, and how to evaluate your camper van's true off-road capability.
Why Ground Clearance Matters for Camper Vans
Ground clearance is one of the most important factors that determines where your van can safely travel.
Adequate clearance helps you avoid damage from:
-
Rocks
-
Deep ruts
-
Washouts
-
Tree roots
-
Ferry ramps
-
Steep driveways
-
Uneven campsites
Unlike traditional SUVs, camper vans carry substantial weight and often have long wheelbases, making clearance even more important.
For owners investing in premium Sprinter van conversions, understanding these measurements can help prevent costly underbody damage and improve confidence when exploring remote destinations.
What Ground Clearance Actually Means
Many people think ground clearance is a single measurement.
In reality, several measurements work together to determine how capable a camper van is off-road.
Minimum Ground Clearance
This is the distance between the ground and the lowest point underneath the vehicle.
Common low points include:
-
Rear differential
-
Transfer case
-
Exhaust components
-
Fresh water tanks
-
Gray water tanks
-
Side steps
-
Hitch receivers
-
Underbody plumbing
This is the most important clearance measurement because it determines what obstacles you can physically drive over.
Approach Angle
Approach angle measures how steep an obstacle your van can climb without the front bumper contacting the ground.
A larger approach angle improves your ability to navigate:
-
Washouts
-
Steep trail entrances
-
Rocky ledges
-
Uneven terrain
Departure Angle
Departure angle measures how steep an obstacle your van can descend without scraping the rear bumper, hitch, or rear accessories.
For camper vans, this is particularly important because rear overhangs are often substantial.
Breakover Angle
Breakover angle determines how easily your van can drive over a crest or hump without becoming high-centered.
Long-wheelbase vans generally have lower breakover angles than shorter-wheelbase models.
This is one reason many adventure travelers carefully compare Transit short wheelbase and Transit long wheelbase platforms when planning a build.
Why Factory Ground Clearance Numbers Can Be Misleading
Factory specifications are usually measured on an empty vehicle.
Your camper van is not empty.
Most adventure vans include:
-
Batteries
-
Water tanks
-
Solar systems
-
Cabinetry
-
Refrigerators
-
Roof racks
-
Camping equipment
Together, these components can add hundreds or even thousands of pounds.
That additional weight compresses the suspension and reduces actual ground clearance.
In many cases, a fully loaded camper van can lose:
0.5–2 inches of clearance
Depending on build weight and suspension setup.
This is why professional builders always evaluate clearance under real-world travel conditions.
How to Measure Ground Clearance on Your Camper Van
The best way to determine your actual ground clearance is to measure it yourself.
Step 1: Load the Van Normally
Before measuring, load the van exactly as you would for travel.
Include:
-
Passengers
-
Fuel
-
Water
-
Food
-
Camping gear
-
Bikes
-
Recovery equipment
This provides the most realistic measurement.
Step 2: Park on Level Ground
Find a flat surface such as:
-
Concrete driveway
-
Parking lot
-
Garage floor
Avoid sloped surfaces that can distort measurements.
Step 3: Find the Lowest Point
Inspect underneath the vehicle and identify the lowest component.
Common candidates include:
-
Rear differential
-
Exhaust system
-
Fuel tank
-
Water tanks
-
Hitch receiver
-
Suspension components
Step 4: Measure Vertically
Using a tape measure:
-
Place the end on the ground
-
Measure straight up to the lowest point
-
Record the distance
This number represents your actual minimum ground clearance.
Critical Areas Every Camper Van Owner Should Measure
Don't stop with a single measurement.
Several components deserve individual attention.
Front Bumper
Measure the lowest point beneath the front bumper.
This directly impacts approach angle performance.
Rear Hitch
Rear hitches are often the first component to scrape during steep descents.
This is especially important for adventure vans carrying bike racks or recovery equipment.
Differential Housing
For many vans, the differential is the lowest mechanical component.
Unlike suspension lifts, larger tires are the primary way to increase differential clearance.
Fresh Water and Gray Water Tanks
Owners of van conversions with showers should pay particular attention to underbody plumbing and tank locations.
These systems frequently sit lower than the chassis itself.
What Ground Clearance Do You Actually Need?
The answer depends on where you travel.
Forest Roads & Campgrounds
Recommended clearance:
150–180 mm (6–7 inches)
Suitable for:
-
Graded dirt roads
-
Campground access roads
-
Mild backcountry routes
Moderate Off-Road Travel
Recommended clearance:
200–230 mm (8–9 inches)
Suitable for:
-
Rocky trails
-
Mountain roads
-
River crossings
-
Deep ruts
Many 4x4 camper vans fall into this category.
Serious Off-Road Travel
Recommended clearance:
250 mm+ (10+ inches)
Suitable for:
-
Technical terrain
-
Deep washouts
-
Snow-covered trails
-
Remote overland routes
This often requires upgraded suspension and larger tires.
How Larger Tires Affect Ground Clearance
Many van owners assume a suspension lift is the only way to gain clearance.
Not true.
Larger tires can significantly increase the height of your lowest components.
Quick Formula
New Clearance = Original Clearance + (New Tire Diameter − Old Tire Diameter) ÷ 2 − Suspension Sag
Example:
-
Original tire: 30 inches
-
New tire: 33 inches
Result:
Approximately 1.5 inches of additional clearance
This is one reason larger tires are such a popular upgrade on luxury camper vans for sale built for remote travel.
What Approach Angle Do You Actually Need?
Approach angle is often more important than raw ground clearance.
Light Camping & Forest Roads
Recommended:
21–25 degrees
Suitable for:
-
Gravel roads
-
Campground entrances
-
Mild inclines
Moderate Off-Road Travel
Recommended:
28–32 degrees
Suitable for:
-
Mountain switchbacks
-
Uneven terrain
-
Steeper trail entrances
Serious Overlanding
Recommended:
32–35+ degrees
Suitable for:
-
Rocky climbs
-
Technical terrain
-
Winter mountain access
For many adventure travelers, a minimum approach angle of 32 degrees provides excellent versatility.
Why Breakover Angle Matters More Than Most People Think
One of the biggest challenges facing camper vans is their length.
Long-wheelbase vans provide more living space but can become vulnerable when crossing:
-
Trail crests
-
Drainage crossings
-
Rocky ridges
-
Steep driveways
If the middle of the van contacts the ground, the vehicle can become high-centered.
This is why many builders combine larger tires with Sprinter and Transit suspension upgrades to improve overall off-road geometry.
Ground Clearance and Payload: The Connection Many Owners Miss
Ground clearance changes as weight increases.
A fully loaded camper van may carry:
-
Water
-
Batteries
-
Gear
-
Food
-
Passengers
Together, these items can add substantial weight.
Popular upgrades such as:
All affect the final ride height.
Always measure clearance with the van loaded exactly as you plan to travel.
Best Practice for Measuring a Camper Van
For the most accurate assessment, measure your van in three stages:
Empty Van
Provides baseline chassis data.
Fully Built Van
Shows the impact of the conversion.
Fully Loaded Travel Configuration
This is the measurement that truly matters.
It reflects real-world conditions and helps determine whether you'll safely clear rocks, ruts, ferry ramps, and rough forest roads.
Final Thoughts
Ground clearance on a 4x4 camper van is much more than a number listed in a brochure. Real-world clearance depends on tire size, suspension setup, payload, water capacity, accessories, and overall vehicle weight.
For most adventure travelers, measuring actual ground clearance, approach angle, departure angle, and breakover angle provides a far better understanding of off-road capability than relying on factory specifications.
