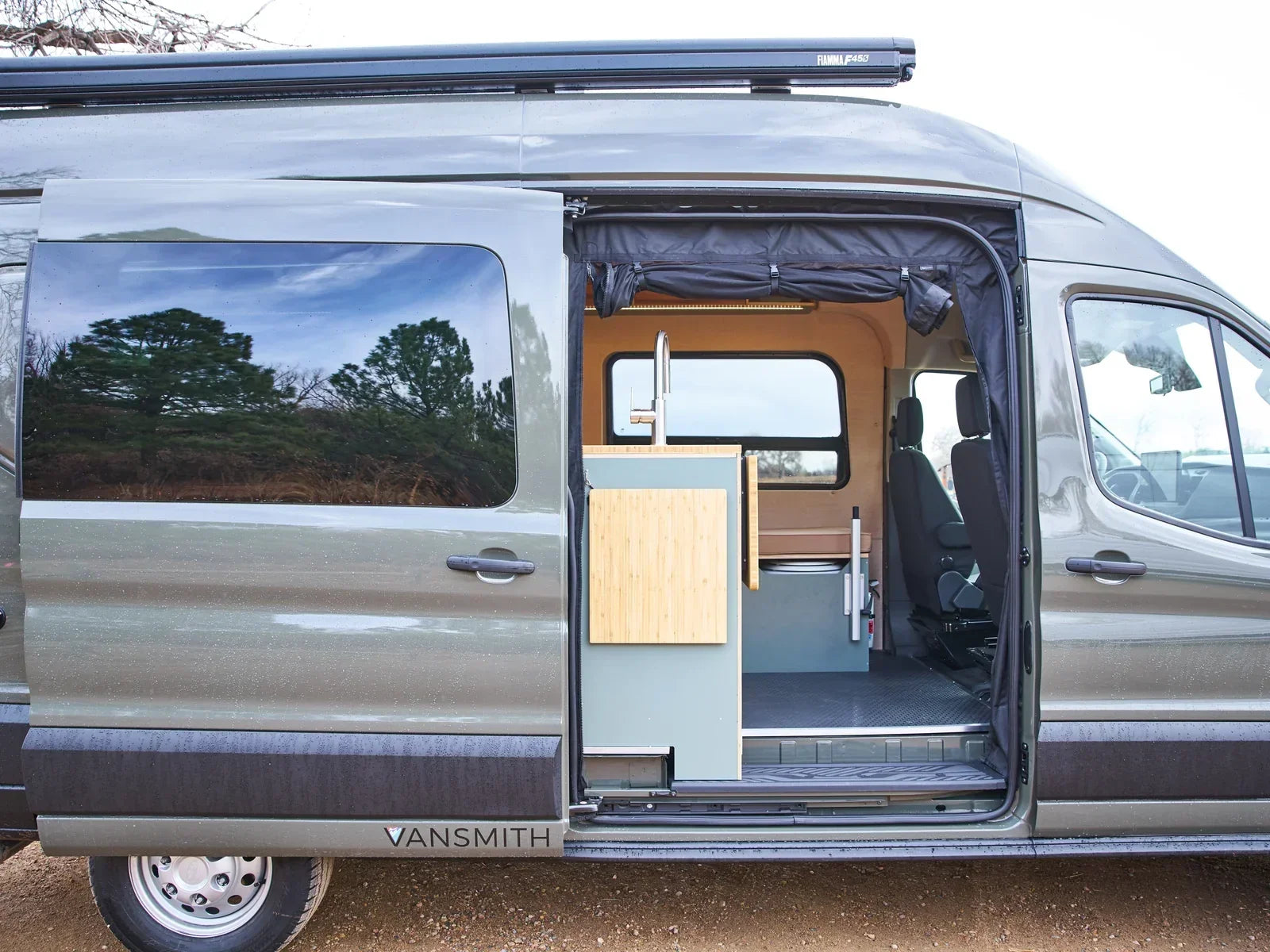

Ford Transit Van Dimensions Guide

Ford Transit van dimensions are one of the first things we look at when helping someone choose a van for travel. After years of working with adventure vans in Colorado, we have learned that a few inches can change a sleeping layout, storage plan, or standing height. Here is what the factory measurements mean in real-world use.

The Different Ford Transit Models

Before looking at measurements, it helps to understand which Transit you are comparing. Ford has used the Transit name across several different van platforms, and their dimensions are not interchangeable.

Ford Transit

The full-size Ford Transit is the platform most relevant to adventure van travelers who need substantial interior space. It is available with different wheelbases, body lengths, and roof heights.

For 2026, the full-size Transit Cargo Van is available with 130-inch and 148-inch wheelbases. The 148-inch platform can also be ordered in an extended-length body.

This range gives travelers several ways to balance interior room, parking, maneuverability, and gear capacity.

Ford Transit Custom

The Ford Transit Custom is a smaller van platform than the full-size Transit. Its exterior dimensions, interior width, and cargo space are different, so its measurements should not be used when planning a full-size Transit interior.

The main dimensions difference between Ford Transit and Custom comes down to overall size and available cargo space. The full-size Transit provides considerably more room for standing, sleeping, storage, and larger adventure equipment.

Ford Transit Connect

The Transit Connect is smaller again. It is designed around urban cargo use and compact transportation.

For occasional travel, it can make sense for someone who wants a smaller vehicle. However, the interior proportions are very different from the full-size Transit, especially when planning a sleeping platform or standing-height interior.

Internal link opportunity: If you are still deciding between van sizes, see our Van Sizes Chart: Choosing the Right Campervan for Your Build.

Ford Transit Exterior Dimensions

The exterior measurements determine more than parking space. They affect garage clearance, trailhead access, mountain roads, roof equipment, and how comfortable the van feels in tight areas.

Wheelbase and Overall Length

The 2026 Ford Transit Cargo Van uses two wheelbase options.

130-Inch Wheelbase

The Regular Transit has a 130-inch wheelbase and measures about 219.9 inches long.

This is the most compact full-size Transit configuration. It is easier to maneuver and park, but the shorter cargo floor limits the available interior space.

148-Inch Wheelbase

The 148-inch wheelbase provides more floor length without moving to the extended body.

Depending on roof and body configuration, the Long Transit measures roughly 235.5 to 237.6 inches long.

That additional space can make a noticeable difference when planning a bed, storage, kitchen area, or equipment garage.

148-Inch Extended Wheelbase

The Long-Extended Transit keeps the 148-inch wheelbase but stretches the rear body.

The overall length reaches about 263.9 inches. Cargo floor length increases to about 172.2 inches.

For travelers carrying bikes, climbing equipment, skis, or bulky camping gear, that additional floor space can be valuable.

Exterior Roof Heights

Ford offers three primary roof heights for the full-size Transit:

• Low Roof: approximately 82 inches
• Medium Roof: approximately 101 inches
• High Roof: approximately 110 inches

Roof height is one of the most important decisions because it changes both the exterior footprint and the interior experience.

Low Roof

A Low Roof Transit is easier to park and can fit into more garages.

The tradeoff is limited standing height. Once flooring, insulation, and ceiling materials are installed, most people will not have comfortable standing room.

Medium Roof

The Medium Roof offers a useful middle ground.

It provides substantially more interior height than the Low Roof while keeping the exterior lower than a High Roof.

For detailed measurements, see our guide to Ford Transit Medium Roof Height.

High Roof

The High Roof provides the most usable vertical space.

For travelers who want to stand, move around while getting dressed, or use taller storage systems, this is usually the most practical option.

Exterior Width

The 2026 Transit Cargo Van is approximately 81.3 inches wide without mirrors.

With mirrors extended, the total width is substantially greater.

The width matters when driving narrow roads or parking in older garages. In Colorado, we also pay attention to roof equipment because racks and other exterior additions can affect the overall footprint.

Ford Transit Interior Dimensions

Exterior dimensions tell only part of the story. The measurements inside the cargo area are what determine whether your sleeping, storage, and living plans will actually fit.

Interior Width

The full-size Transit has approximately 70.2 inches of maximum cargo width at the beltline.

That does not mean you have 70.2 inches of usable floor width everywhere.

The wheel wells reduce floor-level width, which is why both measurements should be considered before planning a bed or storage platform.

Width Between Rear Wheel Wells

The width between the rear wheel wells is approximately 54.8 inches.

This measurement is especially important for sleeping platforms.

A mattress or bed wider than this measurement may need to sit above the wheel wells or use a different orientation.

Interior Height by Roof Option

The maximum cargo height varies significantly by roof.

These are factory cargo-area measurements. They are not the final usable standing heights after interior work.

Low Roof

At approximately 56.9 inches, the Low Roof is primarily suited to layouts where standing inside is not a priority.

Medium Roof

At approximately 72 inches, the Medium Roof gives considerably more usable interior space.

However, floor and ceiling materials can reduce the finished height by several inches.

High Roof

At approximately 81.5 inches, the High Roof gives the most flexibility for standing room.

That extra height also gives more room for overhead storage and taller interior systems.

Cargo Floor Length by Wheelbase

The cargo floor length is another key measurement.

The difference between the shortest and longest versions is more than 46 inches.

That is enough space to change an entire interior layout.

Load Volume and Cargo Space

Approximate cargo volume behind the first row varies substantially:

More volume sounds attractive, but more space also means a larger vehicle.

We recommend starting with how you travel, then choosing the amount of space you actually need.

Ford Transit Dimensions by Configuration

The following table brings the primary Ford Transit van dimensions together for easier comparison.

Ford's published specifications vary by exact configuration and equipment. Always verify the specifications for the specific van before ordering interior components.

Ford Transit Dimensions for Van Interiors

Factory measurements are only the starting point.

When we plan an interior at The Vansmith, we account for the materials and systems that occupy space after the van leaves the factory.

Real Interior Heights After a Van Interior Installation

A simple way to estimate finished standing height is:

Factory interior height - floor thickness - ceiling thickness = usable standing height

For example, a High Roof provides about 81.5 inches of maximum cargo height. If the floor and ceiling together take four inches, the remaining height is roughly 77.5 inches.

The exact result depends on the materials and installation.

These are planning ranges, not factory specifications.

How Roof Height Affects Your Van Interior

Cost

More vertical space can support more storage and interior options. It can also require more material and labor.

Stealth Camping

A Low Roof has a smaller exterior profile.

A High Roof is easier to identify as a camper and requires more attention to overall height when parking.

Insulation and Climate

Floor and ceiling insulation reduce usable interior height.

That tradeoff is worth considering in Colorado, where a van may see below-freezing ski mornings and hot summer trailheads in the same season.

Layout Flexibility

A taller roof opens up more possibilities for standing room, overhead storage, cooking areas, and sleeping arrangements.

The goal is not to use every inch. It is to use the right inches for the way you travel.

Choosing the Right Wheelbase for a Van Interior

130-Inch Wheelbase

The 130-inch wheelbase is a good choice for travelers who prioritize maneuverability.

It works particularly well when the van needs to function as both an adventure vehicle and a daily driver.

148-Inch Wheelbase

The 148-inch wheelbase gives you more floor space while keeping the vehicle shorter than the Extended model.

For many travelers, it provides a practical balance between interior space and road manners.

148-Inch Extended Wheelbase

The Extended version provides the most floor length.

It is useful for travelers who carry substantial equipment or want separate sleeping, storage, and living areas.

The tradeoff is the added exterior length. Tight parking spaces and narrow roads require more attention.

Ford Transit Custom Dimensions

The Ford Transit Custom is smaller than the full-size Transit.

Because these are different platforms, its measurements should not be mixed with full-size Transit specifications.

Wheelbase and Length

The Transit Custom is offered with short and long wheelbase configurations, commonly identified as L1 and L2.

The exact dimensions vary by model year and market, so verify the specification for the specific vehicle.

Short Wheelbase L1

The L1 version has a shorter overall body.

It is easier to maneuver in cities and tighter parking areas.

Long Wheelbase L2

The L2 version adds cargo length.

That extra space can help with equipment storage, but it remains substantially smaller than a full-size Transit.

Height

The Transit Custom sits considerably lower than a High Roof full-size Transit.

That makes it easier to manage in garages and urban environments.

Cargo Width

Its narrower body limits the available cargo width.

This becomes important when planning a bed or large storage system.

Load Volume and Cargo Space

Cargo volume varies by body and seating configuration.

For travel use, compare usable floor length and wheel-well width in addition to the advertised cargo volume.

Ford Transit Connect Dimensions

The Transit Connect is the smallest of the three Transit platforms discussed here.

Wheelbase and Length

The Transit Connect uses a compact wheelbase and short overall body compared with the full-size Transit.

Its smaller footprint makes it practical for city driving.

Height

Its lower roof reduces overall clearance requirements.

The tradeoff is limited interior headroom.

Cargo Width

The cargo area is narrower than the full-size Transit.

That makes the available sleeping and storage space more limited.

Load Volume and Cargo Space

The Transit Connect works well when cargo capacity is more important than full living space.

For extended trips, however, the full-size Transit offers considerably more room for gear and interior amenities.

Ford Transit vs. Ford Transit Custom vs. Ford Transit Connect

Overall Size Comparison

The full-size Ford Transit is the largest platform.

The Transit Custom sits in the middle, while the Transit Connect is the most compact.

For adventure travel, that difference becomes especially noticeable inside.

Cargo Volume and Capacity

The full-size Transit offers substantially more cargo volume.

The High Roof Extended version provides the most room for travelers who carry bulky outdoor equipment.

Interior Load Space

Interior width, wheel-well width, floor length, and roof height all matter more than overall cargo volume alone.

For example, a van can have plenty of total volume but still lack enough floor width for the sleeping arrangement you want.

Which Ford Transit Is Best for a Van Interior?

There is no single answer for every traveler.

The right choice depends on how you sleep, where you park, what equipment you carry, and how much time you spend inside the van.

Best Ford Transit for Maximum Living Space

For maximum interior space, the 148-inch Extended High Roof is the strongest choice.

It provides approximately 172.2 inches of cargo floor length and up to 487.3 cubic feet of cargo volume.

Best Wheelbase for a Compact Interior

The 130-inch wheelbase is the better choice when exterior size matters more than maximum interior space.

It keeps the van shorter and easier to maneuver.

Best Roof Height for Standing Room

The High Roof is the obvious choice for standing room.

Its approximately 81.5-inch factory cargo height gives you more room to work with after flooring and ceiling materials are installed.

Best Configuration for Stealth Camping

The Low Roof has the smallest exterior height.

It is easier to park below height restrictions and less visually prominent than a High Roof.

The tradeoff is a much lower interior.

How The Vansmith Uses These Measurements

After more than a decade working around adventure vans in Colorado, we have learned that dimensions are only useful when they connect to how someone actually travels.

A van that looks perfect on paper may feel cramped after a week of skiing. Another may have more space than needed and become harder to park every day.

That is why we pay attention to the details behind the measurements.

Our work includes high-quality vans, installations, repairs, DIY kits, and purpose-driven interior systems. We also support customers after the initial work is complete.

That ongoing support matters because vans change as people travel. A sleeping system may need adjustment. Storage may evolve. Roof equipment may be added later.

For owners who need help with electrical systems, sleeping systems, roof equipment, or other work, see our Installations & Repairs services.

If you are looking for a Ford Transit for your next adventure, see our Ford Transit for sale inventory.

For travelers who want a ready-to-go adventure van, browse our Camper Van For Sale options.

If you already own a Transit and want to plan a Ford van conversion, the dimensions above are a useful starting point. The final measurements should always be taken from the actual vehicle.

Our philosophy is straightforward: unmatched craftsmanship designed to roam further starts with getting the measurements right.

Final Takeaway

The best Ford Transit van dimensions depend on how you plan to use the vehicle.

A 130-inch Low Roof Transit favors maneuverability. A 148-inch Transit gives you more room without the full length of the Extended model. The 148-inch Extended High Roof provides the most interior space.

At The Vansmith, we have spent years seeing these tradeoffs on Colorado roads and trails. The right choice is the one that gives you enough room for the way you travel without adding size you do not need.

FAQs About Ford Transit Van Dimensions

Is a Ford Transit smaller than a Sprinter?

Both are full-size van platforms, but their dimensions vary by wheelbase, body length, and roof height.

The best comparison is not overall length alone. Look at cargo width, wheel-well width, floor length, interior height, and overall exterior height.

What are the dimensions of a Ford Transit XL?

Ford Transit XL terminology can vary by model and configuration.

For a 2026 full-size Transit Cargo Van, overall length ranges from approximately 219.9 inches for the Regular body to 263.9 inches for the Long-Extended body.

What are the dimensions of the Ford Transit extended length?

The 2026 Long-Extended High Roof Transit is approximately 263.9 inches long.

Its cargo floor length is approximately 172.2 inches, with a maximum cargo height of about 81.5 inches.

What are the dimensions of the back of a Ford Transit Custom?

The exact rear cargo measurements depend on the Transit Custom generation and wheelbase.

Because specifications vary by market and model year, check the factory dimensions for the specific vehicle before planning an interior.
