If you are asking, Can you recommend some popular floor plans for Class B RVs? You are not alone. At The Vansmith in Boulder, Colorado, we talk with vanlifers, travelers, and DIY enthusiasts every week about layouts that balance comfort, function, and adventure. After more than a decade on the road and in the shop, we have seen which designs truly support life outside.
This guide breaks down the most popular Class B RV floor plans and helps you choose one that fits how you travel.

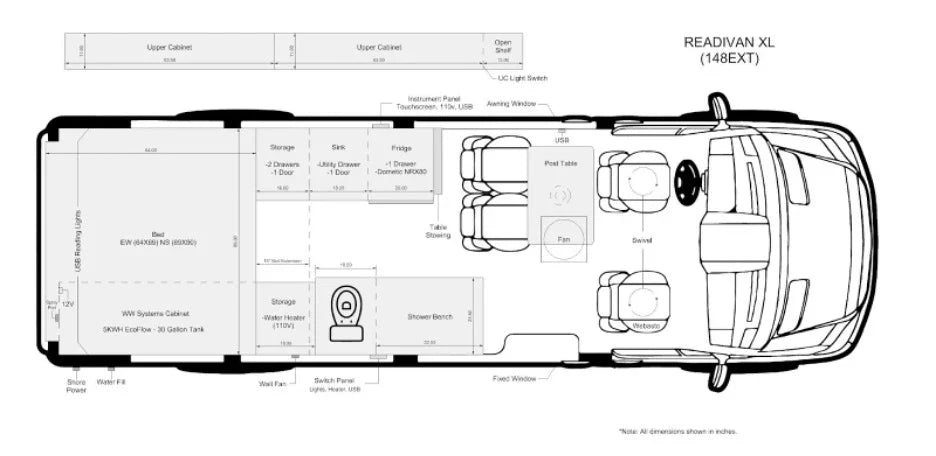

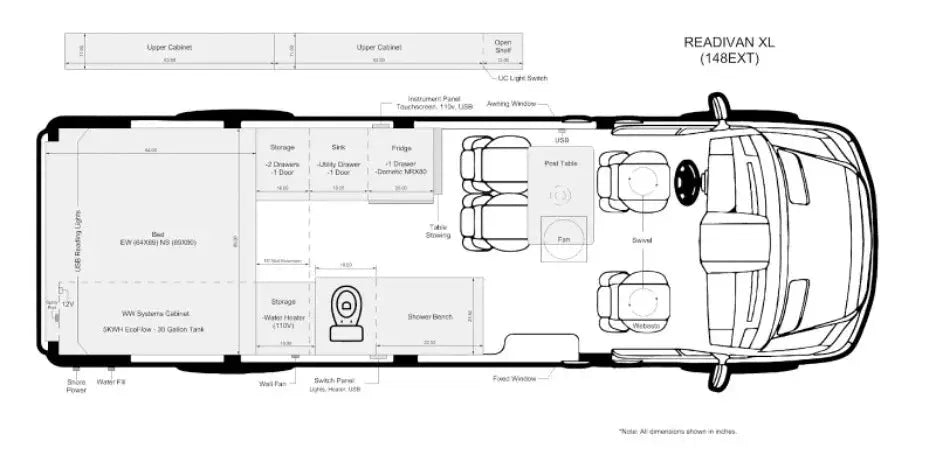

Popular Class B RV Floor Plans
Choosing the right layout matters. A good floor plan supports your daily rhythm, stores your gear, and stays comfortable in changing conditions. Our team focuses on innovative designs that bring comfort to your journey while staying practical for real travel.
Can You Recommend Some Popular Floor Plans for Class B RVs?
Yes. Below are the layouts we see most often among experienced travelers. These designs have been road tested across mountains, deserts, and long highway miles.
Rear Lounge / Convertible Dinette Layout
This layout places a lounge or dinette in the rear that converts into a bed at night. During the day, it feels open and social.
Why it works
-
Best for couples and solo travelers
-
Flexible daytime living space
-
Convertible bed at night
It suits travelers who value open space and simple transitions. The design supports innovative layouts that feel larger than the footprint.
Twin Beds That Convert to King
Twin beds along each side of the van offer separation, with a center insert that forms a king-size sleeping area.
Why it works
-
Separate sleeping areas
-
Optional king-size conversion
-
Extra storage and bedside access
This layout supports comfort and organization. It also reflects unmatched craftsmanship, since storage and access points must be precise to stay functional on long trips.
Rear Bath (Wet Bath) Layout
A rear wet bath combines a shower and toilet in one compact room. It is efficient and weather-friendly.
Why it works
-
Full-width rear bathroom
-
All-in-one shower and toilet
-
Ideal for long trips and cold weather
This layout is popular with travelers who explore year-round. It supports confidence and comfort when campsites are limited or conditions are harsh.
Rear Garage / Gear Storage Layout
Adventure travelers often choose a rear garage for bikes, skis, or climbing gear. Sleeping space sits forward or above.
Why it works
-
Dedicated gear storage area
-
Elevated or forward sleeping space
-
Designed for outdoor adventure gear
This option fits Colorado-style travel well. It reflects tailoring the layout to your vision while keeping durability at the core.
Pop-Top or Raised Roof Layout
A pop-top or raised roof adds vertical space without increasing length. It changes how the van feels inside.
Why it works
When you are comparing these layouts, it helps to understand how they fit within the actual dimensions of common Class B platforms. That is where a simple sprinter van size chart comes in. Most 144-inch wheelbase Sprinters give you enough room (Mercedes-Benz) for a rear lounge or twin beds while still fitting in regular parking spaces. The 170-inch wheelbase opens up options for a rear bath (Mercedes-Benz) plus a dedicated gear garage, but you will feel the extra length in tight trailhead lots and older downtowns. Before you fall in love with a floor plan, look at interior length, standing height, and rear door opening measurements. Those numbers tell you whether bikes can stand upright, skis can slide under the bed, or a wet bath will feel usable instead of cramped.
Think about how your gear and habits line up with those measurements. For example, if you are a mountain biker, check the rear door height and width on a sprinter van size chart, then measure your bike with the front wheel off. That will tell you if a low “garage” under a fixed bed will work or if you need a taller bed platform or a side-mount storage solution. If you cook often, pay attention to counter length and the distance between the galley and seating. A rear lounge layout on a shorter wheelbase may feel perfect for quick weekend trips, while long-term travelers often appreciate the extra storage and wider galley options that come with a longer van. Matching your daily routines to real-world dimensions keeps your layout from feeling like a compromise once you are on the road.
We also see a big difference in how people use space based on roof height and pop-top choices. A high-roof Sprinter lets most people stand comfortably, which makes a front galley and rear lounge feel more open. A pop-top adds another layer: you can sleep up top and free up the main floor for a full-time dinette, office, or gear zone. When you look at a sprinter van size chart, note the exterior height and consider where you plan to travel. Extra height can limit access to some garages, older campgrounds, and drive-throughs, but it also makes long, stormy days inside much more livable. Balancing interior comfort with where you actually drive is one of the most important—and most overlooked—parts of choosing a Class B floor plan.
-
Expandable roof section
-
Additional sleeping or standing room
-
Maintains compact van length
This design supports flexible travel and sustainability. Less length means easier driving and better efficiency, especially on narrow roads.
Front Lounge with Fixed Bed
A fixed rear bed paired with a front lounge offers simplicity and nightly comfort.
Why it works
-
Permanent rear bed
-
Front seating and lounge area
-
Comfort-focused layout
This layout is ideal for travelers who want fewer daily setup steps. It also supports long-term durability through straightforward use.
Tips for Choosing a Class B RV Floor Plan
Even popular layouts feel different depending on how you travel. At The Vansmith, personalized attention and support guide every decision.
Ready to turn your ideal Class B floor plan into a real van? Explore our services to see how we can build a layout that fits the way you travel.
Travel Style Considerations
Think about how often you move and who travels with you.
-
Solo travel vs couples
-
Weekend trips vs full-time living
Frequent movers often prefer simpler layouts. Longer stays benefit from separation between living and sleeping zones.
Bathroom and Amenities
Bathroom choices affect comfort and flexibility.
-
Wet bath vs portable toilet
-
Indoor vs outdoor shower
Cold climates favor indoor solutions. Warmer regions allow more flexibility.
Storage and Gear Needs
Storage should match your hobbies and habits.
-
Overhead cabinets
-
Rear garage or external storage
Climbers, bikers, and skiers often prioritize gear access. Minimalists may focus on lighter storage solutions.
Interior Space and Headroom
Vertical space changes daily comfort.
-
Standard roof vs pop-top
-
Standing height requirements
Taller travelers or long indoor days benefit from extra headroom.
Why These Layouts Work in Real Travel
After years of hands-on experience, we see that great layouts balance innovation with restraint. Innovative designs bring comfort to your journey, but durability matters just as much. Each of these floor plans supports movement, rest, and adaptability without excess.
We also prioritize sustainability in every van. Materials like bamboo, birch, and wool, paired with energy-efficient systems, support responsible travel without sacrificing comfort.
Final Thoughts
So, can you recommend some popular floor plans for Class B RVs? The answer depends on how you travel, what you carry, and where you roam. Rear lounges, twin beds, wet baths, garages, pop-tops, and fixed beds all serve different adventures.
At The Vansmith, our Colorado roots and outdoor passion guide every recommendation. Vans are shaped by purpose, passion, and attention to detail, so your time on the road feels natural and supported.
Frequently Asked Questions
How do I use a sprinter van size chart to choose a Class B RV floor plan?
A sprinter van size chart helps you see how different layouts fit within common wheelbases and interior dimensions. Once you know your van’s length and height, you can better decide if you have room for features like a rear lounge, twin beds, or a rear bath without feeling cramped.
What is the most popular Class B RV floor plan for couples?
The rear lounge or convertible dinette layout is one of the most popular for couples. It gives you an open, social space during the day and converts to a comfortable bed at night, making the van feel larger than its footprint.
Which Class B RV layout is best for carrying bikes, skis, or climbing gear?
A rear garage or gear storage layout is best for hauling outdoor equipment. It dedicates the back of the van to storage, with sleeping space either elevated or moved forward, which works especially well for Colorado-style adventure travel.
What Class B RV layout works well for year-round or cold-weather travel?
A rear bath (wet bath) layout is ideal for long trips and cold weather. The full-width rear bathroom with an all-in-one shower and toilet lets you stay comfortable and self-sufficient when campsites or facilities are limited.
What’s a good Class B RV layout if I want separate beds that can still become a larger bed?
Twin beds that convert to a king are a strong option if you want both separation and flexibility. You get individual sleeping areas along each side of the van, plus a center insert that turns them into a king-size bed, with extra storage and easy bedside access.
