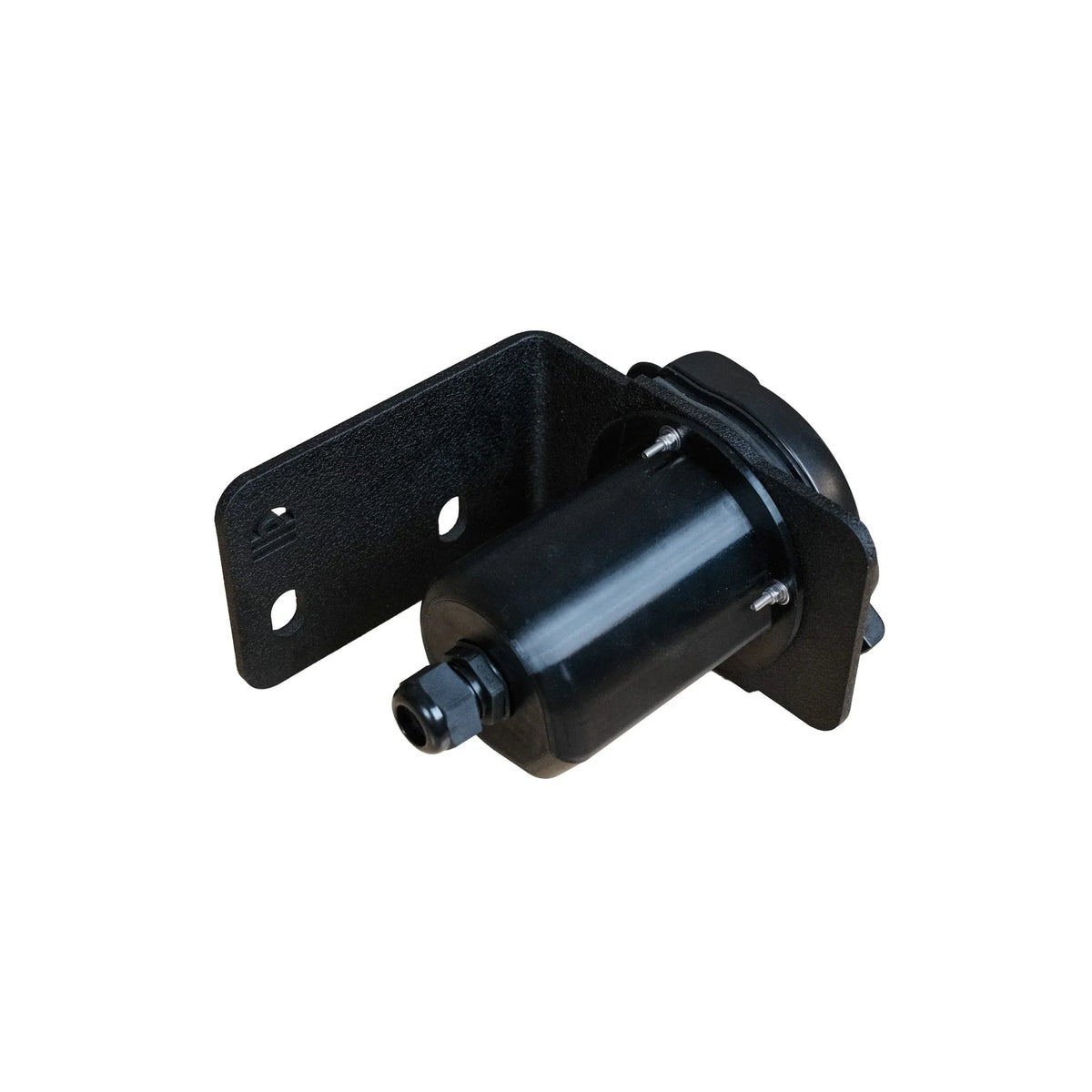

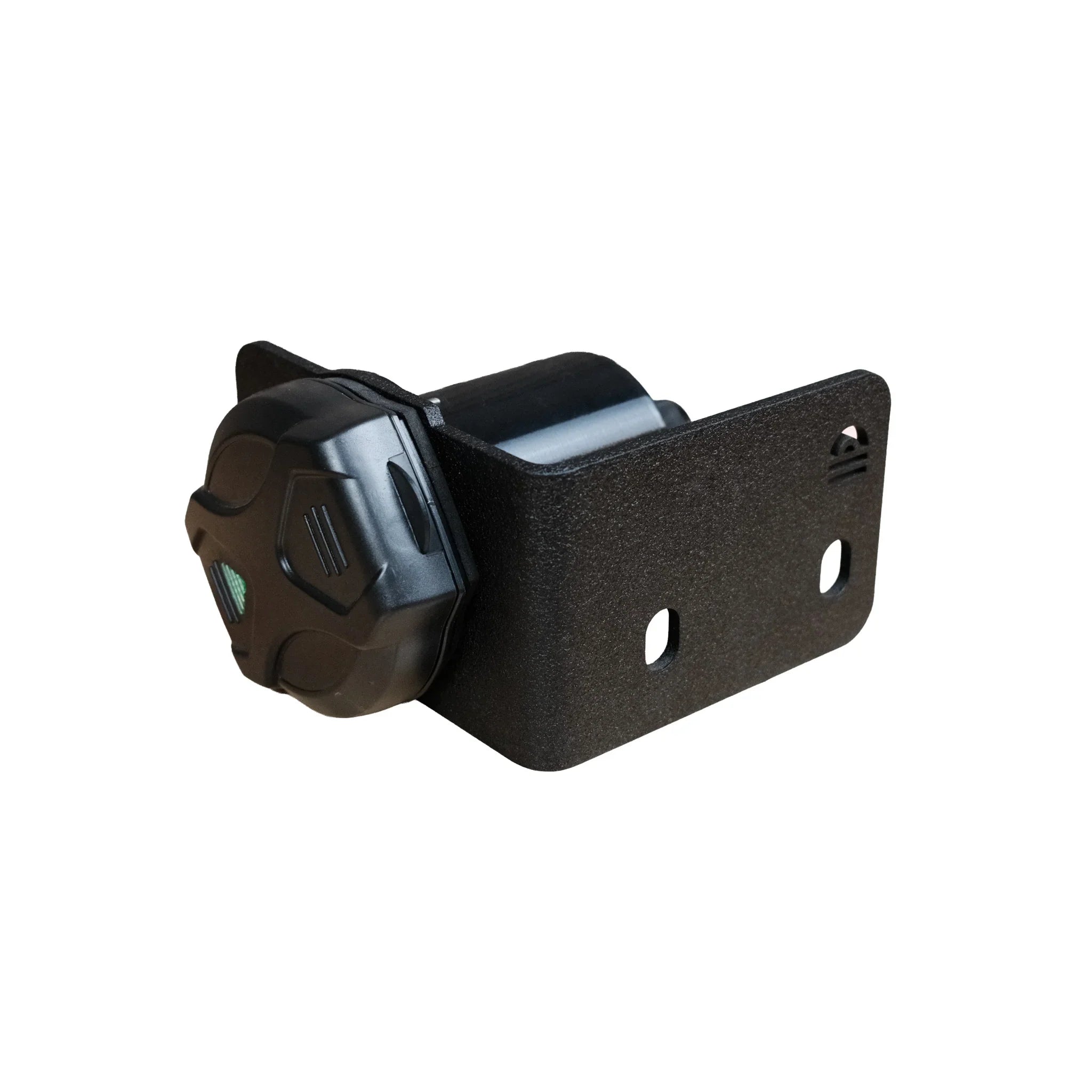

SV Shoreline Power Bracket 30 amp
Same factory-hitch mount as our original Shoreline, now in a 30-amp version for builds with larger power systems or frequent campground hookups. The NEMA TT-30 plug is the standard at most RV parks and campgrounds.
Clear on one thing: the bracket mounts without drilling a new hole in the van body. You still need to route your wire from inside the van to this connection point. The Shoreline solves the mounting problem. The wire run is part of your build.

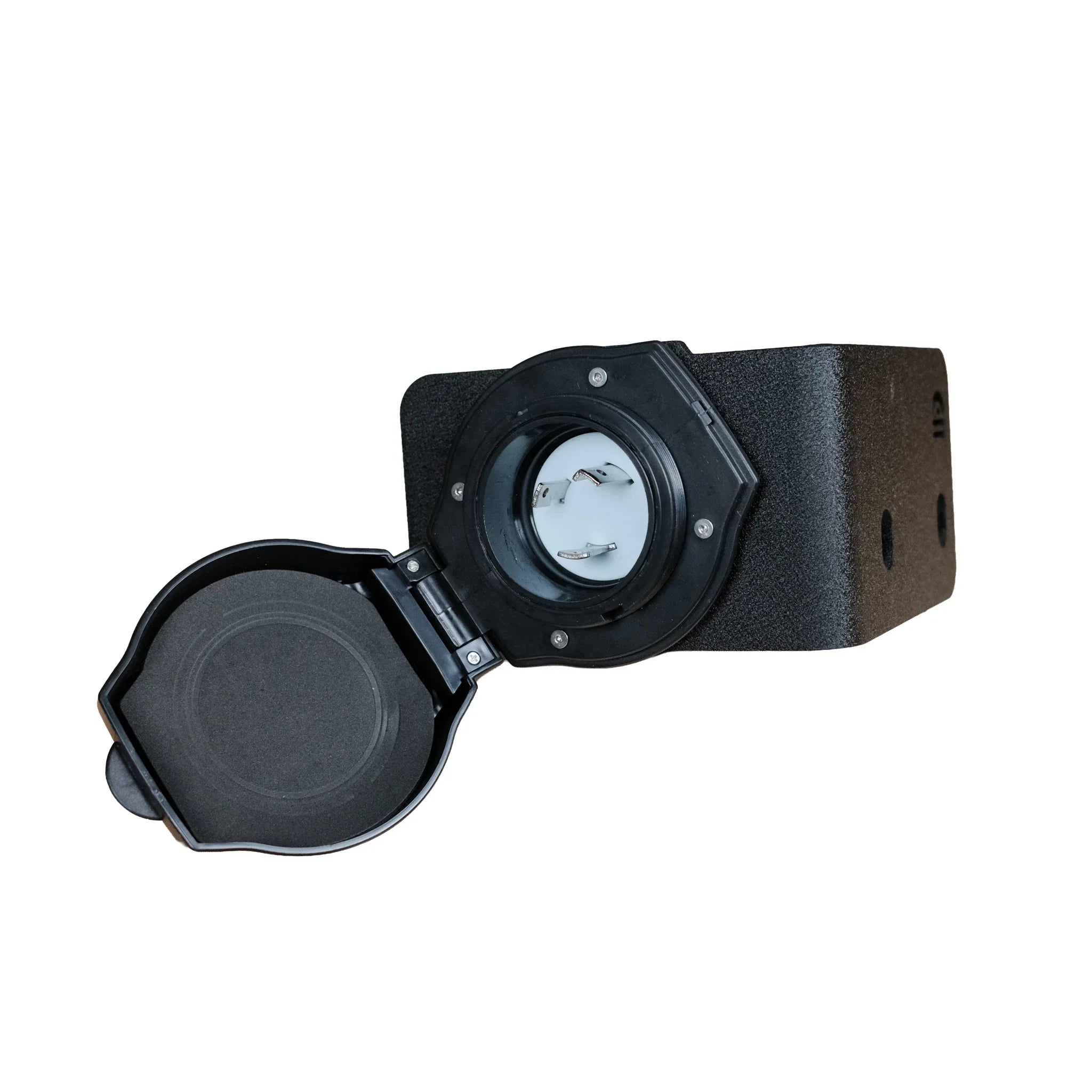

- 30 amp / 120V NEMA TT-30 shore power plug with pigtail, included
- 3/16-in. aluminum bracket, powder-coated black

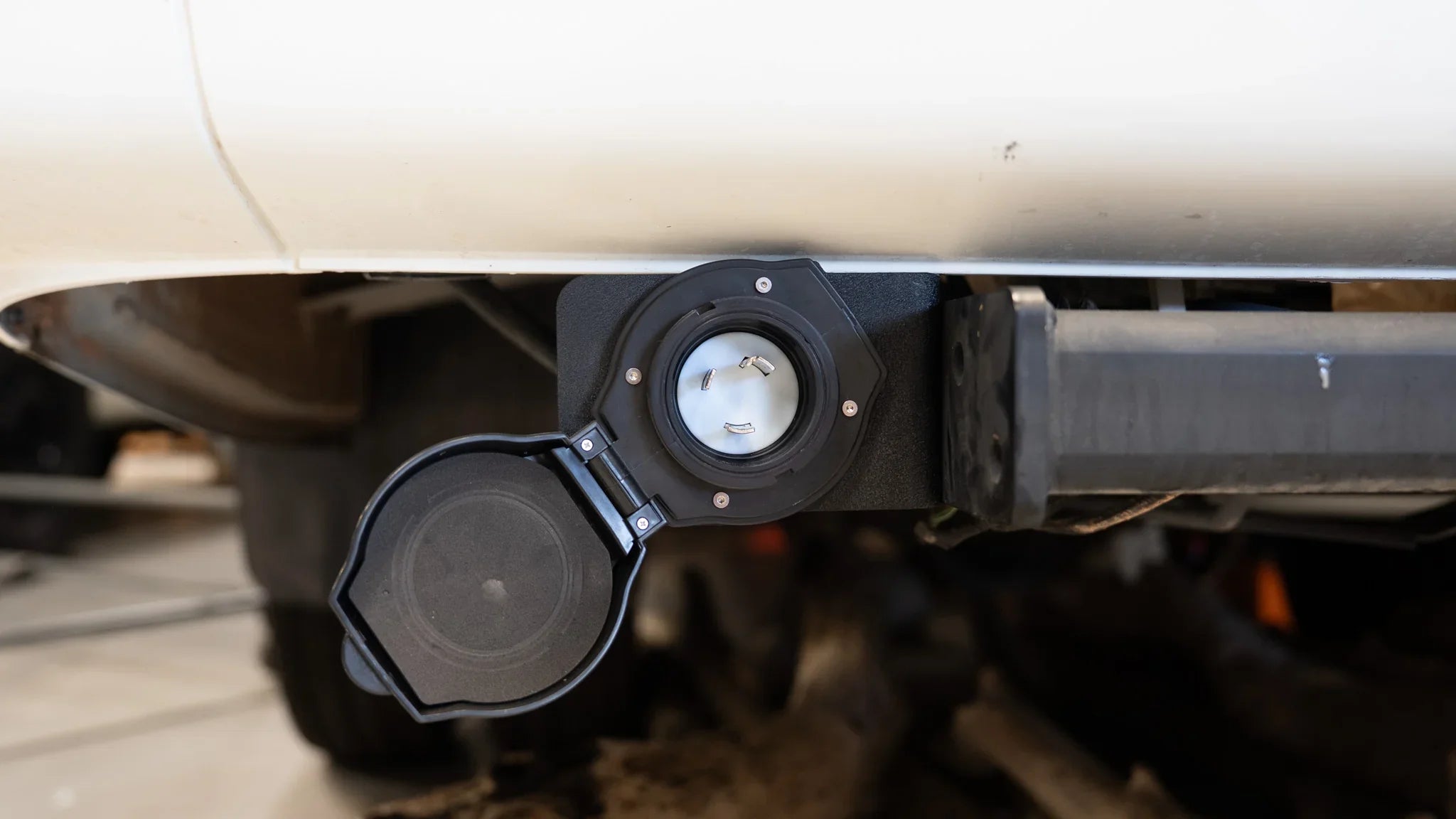

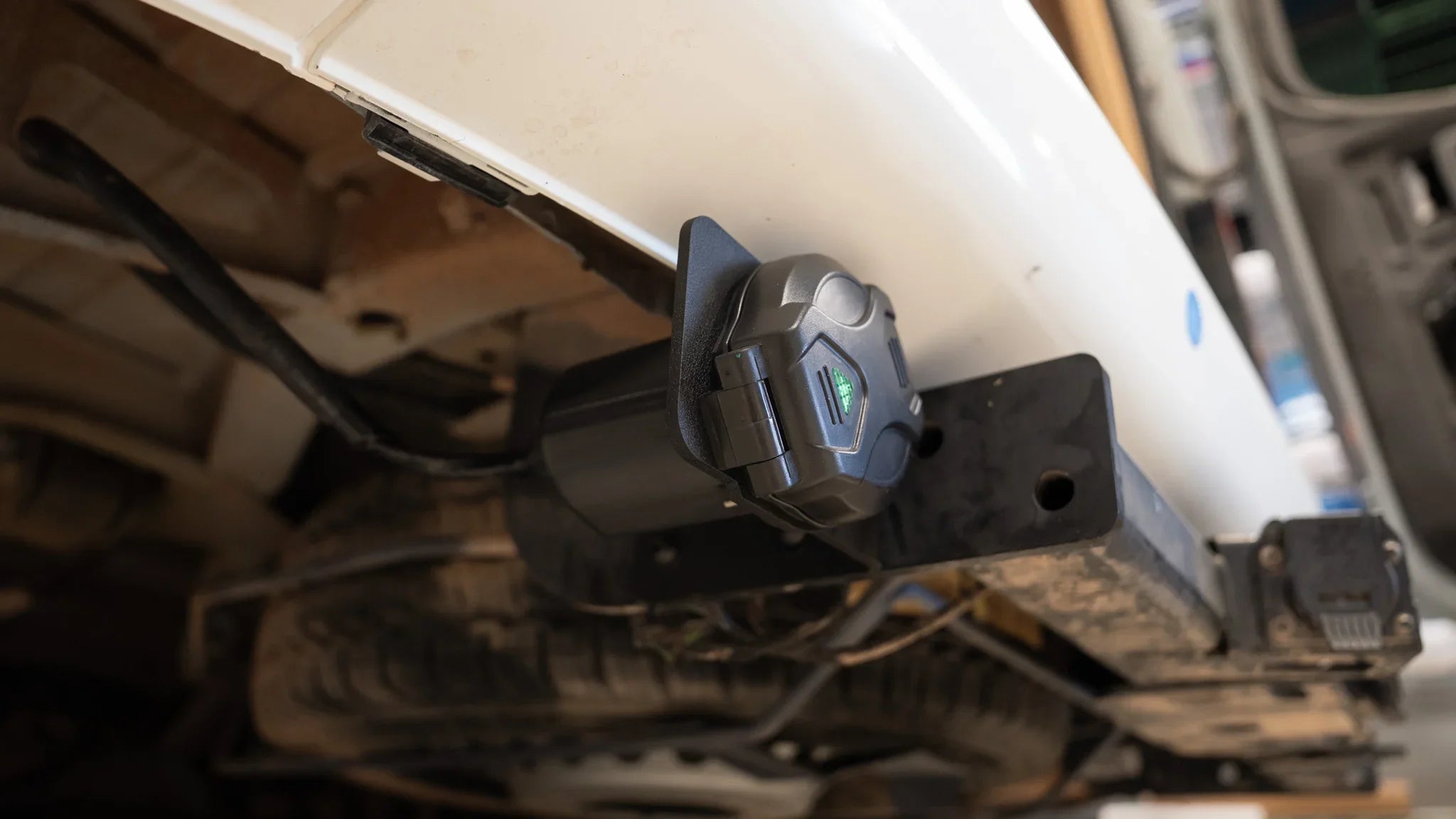

- Bolts to factory Mercedes Sprinter tow package (2008+), no new holes in the van body
- Compatible with Sprinter 144 in., 170 in., and 170 in. EXT
- Add the Anderson plug option for a dedicated solar array input or second power source
Fits: Mercedes Sprinter 2007+ with factory tow package (144 in., 170 in., 170 in. EXT)
Not compatible with: Sprinters without factory tow package
Choose your variant:
Shoreline plug: 30-amp plug, pigtail, and bracket.
Shoreline plug + Anderson plug bracket: adds an Anderson SB50 connection port for a dedicated solar array or second power source, wired independently.
Also available: SV Shoreline 15 Amp for standard household circuit amperage.
