TL;DR
A van electrical system needs four parts working together: a power source (solar, alternator, shore power), energy storage (a battery bank, almost always LiFePO4 lithium today), power control (charge controllers, monitoring, safety gear), and power flow (inverters and DC distribution). A 300W solar array typically produces 1,200 to 1,800 watt-hours a day, and most van lifers use 1,000 to 2,000 watt-hours a day, so size your battery bank for 2 to 3 days of storage. Use an MPPT charge controller, a DC-to-DC charger for alternator charging, and a pure sine wave inverter if you're running AC appliances. Follow NFPA 70 wiring guidance, use marine-grade wire, and avoid mixing battery ages or technologies. Start with a solid 2kWh system and build in room to grow to 5kWh or 10kWh as your needs change.
Van power systems are the hidden base that makes modern van life work. Get your power system right, and you'll enjoy steady power for all your gear, from LED lights to laptops to fridges. Get it wrong, and you'll find yourself constantly managing power, dealing with dead batteries, and missing out on the adventures you planned. We've spent close to a decade planning and putting in van electrical systems here in Colorado, and that time on the tools has taught us plenty about what actually works and what leaves van lifers stranded with a dead battery two days into a trip. This complete guide explains solar power van conversion systems, battery types, and how to design an electrical system that actually meets your needs.
Understanding van electrical system fundamentals
The four essential components
Every van electrical setup consists of four key elements that must work together seamlessly:
Power source: solar panels, alternator charging, and shore power input
Energy storage: battery banks that store power for later use
Power control: charge controllers, monitoring systems, and safety gear
Power flow: inverters, DC distribution, and electrical outlets
DC vs. AC power in van applications
12V DC systems: most van gear runs on 12V DC power straight from your battery bank. This covers LED lights, fans, water pumps, and many fridges. DC systems are efficient because they cut out conversion losses, and U.S. Department of Energy guidance notes that DC systems generally reduce energy lost in conversion compared with AC-heavy setups.
120V AC systems: standard home gear needs 120V AC power, which means using an inverter to change your 12V battery power. Inverters add extra parts and lower efficiency but let you use everyday gear.
The Vansmith approach: our standard 2kWh lithium smart power system gives both DC and AC power options, with upgrade paths to 5kWh or 10kWh based on your actual power needs. If you'd rather skip the DIY learning curve, you can start with a professionally designed build from our camper van conversion packages.
Solar power van conversion systems
How solar power works in van applications
Solar panels turn sunlight straight into DC power, which charges your battery bank through a charge controller. The system keeps making power any time the sun is shining, giving you renewable energy for your van life adventures. According to the U.S. Department of Energy, photovoltaic panels convert sunlight directly into electricity using semiconductor materials, which is exactly what your roof-mounted panels are doing on a smaller scale.
Daily solar reality check: a 300W solar system in good conditions might make 1,200 to 1,800 watt-hours per day, based on sun angle, weather, and system efficiency. Real-world output is often 20 to 30 percent lower than the rated maximum.
Solar panel types and selection
Monocrystalline panels, premium performance:
Highest efficiency per square foot
Better performance in partial shade
Longer lifespan and warranties
Higher cost but better long-term value
Polycrystalline panels, budget option:
Lower cost per watt
Adequate performance for many applications
Slightly larger for same power output
Good choice for budget-conscious builds
Flexible panels, installation convenience:
Conform to curved van roofs
Lighter weight installation
Lower efficiency and shorter lifespan
Good for specific installation challenges
Solar system sizing strategy
The Vansmith standard: our standard system has 300W of solar power, which gives enough power for:
LED lighting throughout the van
Water pump operation
Phone and laptop charging
Efficient 12V refrigerator operation
Basic comfort and convenience loads
Upgrade options: 5kWh and 10kWh systems for higher power demands, including:
Induction cooking appliances
Air conditioning systems
Multiple high-power devices
Extended off-grid capability
Professional work equipment
Charge controller selection
MPPT vs. PWM controllers: Maximum Power Point Tracking (MPPT) units cost more but give 20 to 30 percent better results than PWM controllers, according to Victron Energy, especially in the changing light conditions common in van life.
Proper sizing: charge controllers must be sized for both solar panel power and battery bank voltage. Oversizing gives room for future solar growth.
Battery technologies and selection
Lithium iron phosphate (LiFePO4): the current champion
Why lithium dominates van applications:
2,000 to 3,000+ cycle lifespan
95%+ depth of discharge capability
Excellent efficiency and charge acceptance
Stable voltage throughout the discharge cycle
Lightweight compared to lead-acid alternatives
The Vansmith standard: our 2kWh lithium systems give steady power for normal van life needs while offering clear upgrade paths as needs grow. To see how we integrate lithium power into complete builds, browse our turnkey camper van models.
Battery bank sizing principles
Daily energy consumption analysis:
LED lights: 50 to 150 watt-hours per day
Water pump: 20 to 50 watt-hours per day
Refrigerator: 600 to 1,200 watt-hours per day
Electronics charging: 200 to 600 watt-hours per day
Total typical usage: 1,000 to 2,000 watt-hours per day
Battery capacity planning:
Size for 2 to 3 days of energy storage
Account for system inefficiencies (10 to 15 percent)
Plan for future load growth
Consider worst-case weather scenarios
Battery management systems (BMS)
Modern lithium batteries include sophisticated battery management systems that:
Prevent overcharging and over-discharging
Balance individual cell voltages
Monitor temperature and current flow
Provide safety disconnection if needed
Communicate with monitoring systems
Charging systems integration
Alternator charging: power while driving
DC-to-DC chargers: modern vans need DC-to-DC chargers to safely charge lithium batteries from the alternator. These units ensure proper charging voltage and protect both the van's power system and your house batteries. Many newer vans, like the Ford Transit and Mercedes-Benz Sprinter, use smart alternators that vary output voltage for efficiency, according to NHTSA vehicle documentation, which is why a DC-to-DC charger is so important.
The Vansmith advantage: our systems include alternator charging built in, so your batteries charge while driving to your next stop.
Shore power integration
Ship-to-shore charging: when plugged into campground power or home power, your system should auto charge batteries and power van systems without running generators or draining battery power.
Automatic transfer: good systems auto switch between power sources without user input, making sure everything runs smoothly.
Backup and emergency charging
Portable generators: for long cloudy periods or high power needs, portable generators give backup charging ability.
EcoFlow integration: The Vansmith systems can work with EcoFlow portable power stations for extra power and backup power options.
Power management and monitoring
Smart battery monitoring
Why monitoring matters: without good battery tracking, you're flying blind on power use and remaining power. This leads to surprise power outages and shorter battery life.
Essential monitoring features:
Real-time voltage, current, and power display
Remaining capacity estimation
Historical usage data
Smartphone connectivity for remote monitoring
Alarm settings for low battery conditions
Load management strategies
Priority power distribution:
Essential loads: lights, water pump, communications
Comfort loads: fans, refrigerator, entertainment
Luxury loads: high-power appliances, air conditioning
Optional loads: non-essential convenience items
Automatic load shedding: advanced systems can auto shut off non-essential loads when battery power drops below preset levels.
Inverters and AC power systems
Pure sine wave vs. modified sine wave
Pure sine wave inverters, the professional choice:
Compatible with all AC appliances
Clean power for sensitive electronics
Efficient operation with quality appliances
Essential for professional equipment
Modified sine wave, budget option:
Lower cost but limited compatibility
Can damage some electronics over time
Inefficient with many modern appliances
Generally not recommended for van applications
Inverter sizing and selection
Continuous vs. surge power:
Size for actual continuous loads, not theoretical maximums
Account for appliance startup surges
Consider simultaneous load operation
Plan for system efficiency losses
The Vansmith approach: we size inverters based on actual usage patterns rather than rated maximums, making sure things run well without extra cost and complexity.

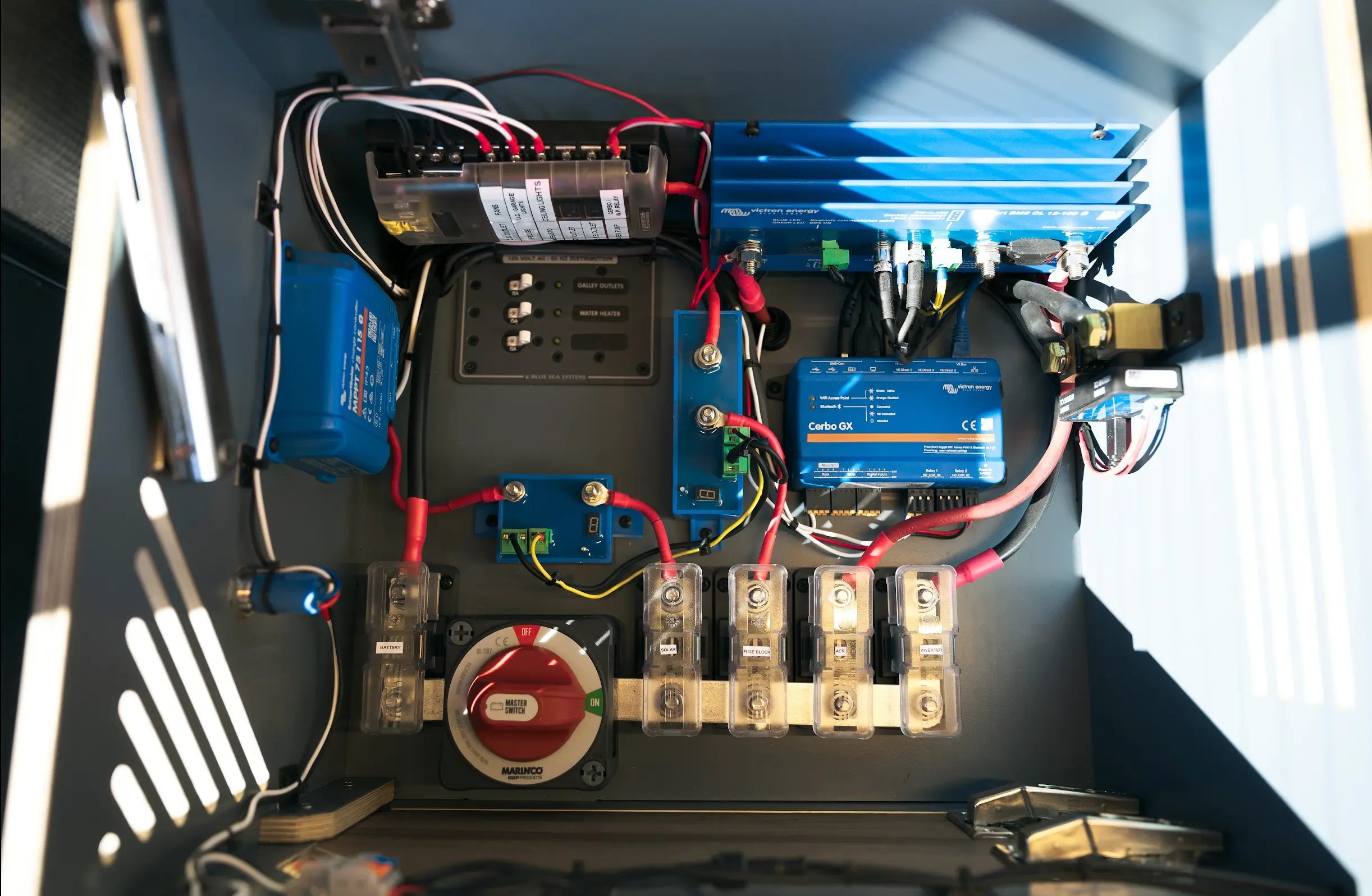

System integration and installation
Professional vs. DIY installation
Why professional installation matters:
Electrical systems can be dangerous if installed incorrectly
Code compliance ensures safety and insurability
Professional installation includes proper testing and documentation
Warranty coverage often requires professional installation
The Vansmith advantage: our team has put in hundreds of electrical systems and knows the wiring challenges that come with van builds. If you want to see how our electrical work ties into full interiors, browse our completed rigs in the camper van build gallery.
Safety and code compliance
Essential safety features:
Overcurrent protection (fuses and breakers)
Proper wire sizing for all loads
GFCI protection where required
Grounding and bonding systems
Emergency disconnection capabilities
The National Electrical Code (NFPA 70) is the primary safety standard for wiring in the U.S., and while your van is a unique environment, following its guidance on overcurrent protection, conductor sizing, and GFCI use is a smart baseline for safe DIY work.
System documentation
Why documentation matters: proper system paperwork allows easier troubleshooting, upkeep, and future changes. It also gives useful information for insurance and resale purposes.
Common electrical system mistakes
Undersized wire and overcurrent protection
The problem: using car wire for house electrical systems or weak overcurrent protection creates fire hazards and system failures.
The solution: use marine-grade wire and proper overcurrent protection sized for actual loads and wire rating.
Inadequate ventilation and heat management
The problem: electrical parts make heat and need good airflow to run well and stay safe.
The solution: plan airflow for all electrical parts and avoid installation in tight spaces without airflow.
Mixing battery technologies
The problem: connecting different battery types or ages creates uneven charging and lower system performance.
The solution: use matched battery banks and replace batteries as complete sets when needed.
Maintenance and troubleshooting
Regular system monitoring
Monthly checks:
Battery voltage and capacity monitoring
Connection tightness and corrosion inspection
System performance verification
Cleaning of solar panels and ventilation areas
Annual maintenance:
Complete system inspection and testing
Connection cleaning and retightening
Component replacement as needed
System performance optimization
Common troubleshooting issues
Low battery performance:
Check charging system operation
Verify load calculations match actual usage
Inspect connections for voltage drop
Consider battery age and condition
If you'd rather have a skilled team design and install a solid van electrical system for you, explore our van repairs, installations, and services and see how we can help.
Solar system underperformance:
Clean panels and check for shading
Verify charge controller operation
Check wiring connections and voltage drop
Assess realistic expectations vs. actual conditions
Future-proofing your electrical system
Expansion planning
Design for growth:
Include extra capacity in charge controllers
Plan conduit and wiring routes for future additions
Size battery bank with expansion capability
Consider future load additions
The Vansmith upgrade path: our systems include clear upgrade paths from 2kWh to 5kWh to 10kWh power, allowing growth as your power needs evolve.
Technology evolution
Staying current:
Battery technology continues improving
Solar panel efficiency increases annually
Monitoring and control systems become more sophisticated
Integration with smart home technologies
Real-world system examples
The weekend warrior system (2kWh standard)
Components:
300W solar with MPPT charge controller
2kWh lithium battery bank
1,500W pure sine wave inverter
Comprehensive monitoring and safety systems
Powers:
LED lighting and fans
12V refrigerator
Phone and laptop charging
Water pump and basic appliances
The full-time system (5kWh upgrade)
Enhanced components:
600W+ solar array
5kWh lithium battery bank
3,000W inverter capacity
Advanced monitoring and load management
Additional capability:
Induction cooking appliances
Air conditioning systems
Professional work equipment
Extended off-grid capability
The ultimate system (10kWh maximum)
Premium components:
1,000W+ solar array
10kWh lithium battery bank
Multiple inverters for redundancy
Comprehensive smart home integration
Ultimate capability:
Residential-level electrical capacity
Multiple high-power appliances simultaneously
Extended off-grid living capability
Professional-grade work environment
Cost-benefit analysis
Initial investment vs. long-term value
Quality system benefits:
Reliable power for years of van life
Reduced maintenance and replacement costs
Better resale value for your van
Peace of mind during adventures
The false economy of cheap systems:
Frequent component failures and replacements
Poor performance leading to lifestyle limitations
Safety risks from inadequate protection
Higher total cost of ownership
Ready to power your van life dreams?
Van electrical systems are complex, but knowing the basics helps you make smart choices about your power needs and system design. Whether you choose a pro install or tackle it yourself, proper planning and good parts make the difference between reliable power and constant frustration.
The key to a successful camper van power system is matching your system size to your actual needs while planning for future growth. Start with a solid base and proven parts, then expand as your experience and needs grow. Your electrical system is the base that makes everything else in your rig work, and putting money into a solid, well-designed mobile power system pays off through years of trouble-free van life adventures.
The Vansmith team has planned and put in hundreds of electrical systems for van lifers across every power need level. From our standard 2kWh systems to top-end 10kWh setups, we can help you design and install the electrical base that makes your van life dreams real. Check out our full range of electrical services and installs at The Vansmith repairs, installations, and services page, or reach out directly through our camper van contact form to talk through your power goals.
Frequently asked questions
What are the main components of a van electrical system?
Every van electrical system has four core parts: power sources (solar, alternator, shore power), energy storage (battery bank), power control (charge controllers, monitoring, safety gear), and power flow (inverters, DC distribution, outlets). These pieces have to be sized and matched so they work together reliably.
How does solar power work in a van electrical system?
Solar panels turn sunlight into DC power, which flows through a charge controller to safely charge your battery bank. As long as the sun is out, the system keeps topping up your batteries and reducing how often you need to rely on alternator charging or shore power.
How much power can a 300W solar system produce on a camper van?
In good conditions, a 300W solar setup can produce roughly 1,200 to 1,800 watt-hours per day. Real-world output is usually 20 to 30 percent lower than the panel's rated maximum because of sun angle, weather, and system losses. For comparison, U.S. Department of Energy solar design resources use similar daily production ranges when estimating small off-grid PV performance.
What's the difference between 12V DC and 120V AC power in a van?
Most van-specific gear like LED lights, fans, water pumps, and many fridges run directly on 12V DC from your batteries, which is efficient because there's no conversion loss. Standard household appliances need 120V AC, so you'll use an inverter to convert 12V DC to AC, which adds components and reduces overall efficiency.
What type of solar panels are best for a van conversion?
Monocrystalline panels are the most efficient per square foot and perform better in partial shade, making them a strong long-term choice for most van roofs. Polycrystalline panels cost less but take more space for the same power, while flexible panels are lighter and conform to curved roofs but trade off efficiency and lifespan.
