DIY Dual upper cabinet Kit for Sprinter vans
by The Vansmith DIY
Free local pickup at Vansmith Shop
Usually ships in 2-4 weeks
Compatible with: Mercedes Sprinter 144, Mercedes Sprinter 170
Description: The 40" Dual Upper Cabinet installs on either the driver or passenger side, CNC-cut by The Vansmith in Boulder, Colorado from premium Baltic Birch. Compact overhead storage with an integrated LED light track, soft-close BLUM hinges, and a pre-cut light-switch hole. Ships as a complete DIY kit with all hardware and lighting included.
Features & Specs:
- Dimensions: 40" W x 10.7" D x 12.75" H
- Integrated lighting: LED light track + diffuser with a pre-cut switch hole
- Hardware: Soft-close BLUM hinges and door lifters
- Mounting: installs on either the driver or passenger side; works best with our Mounting Kit

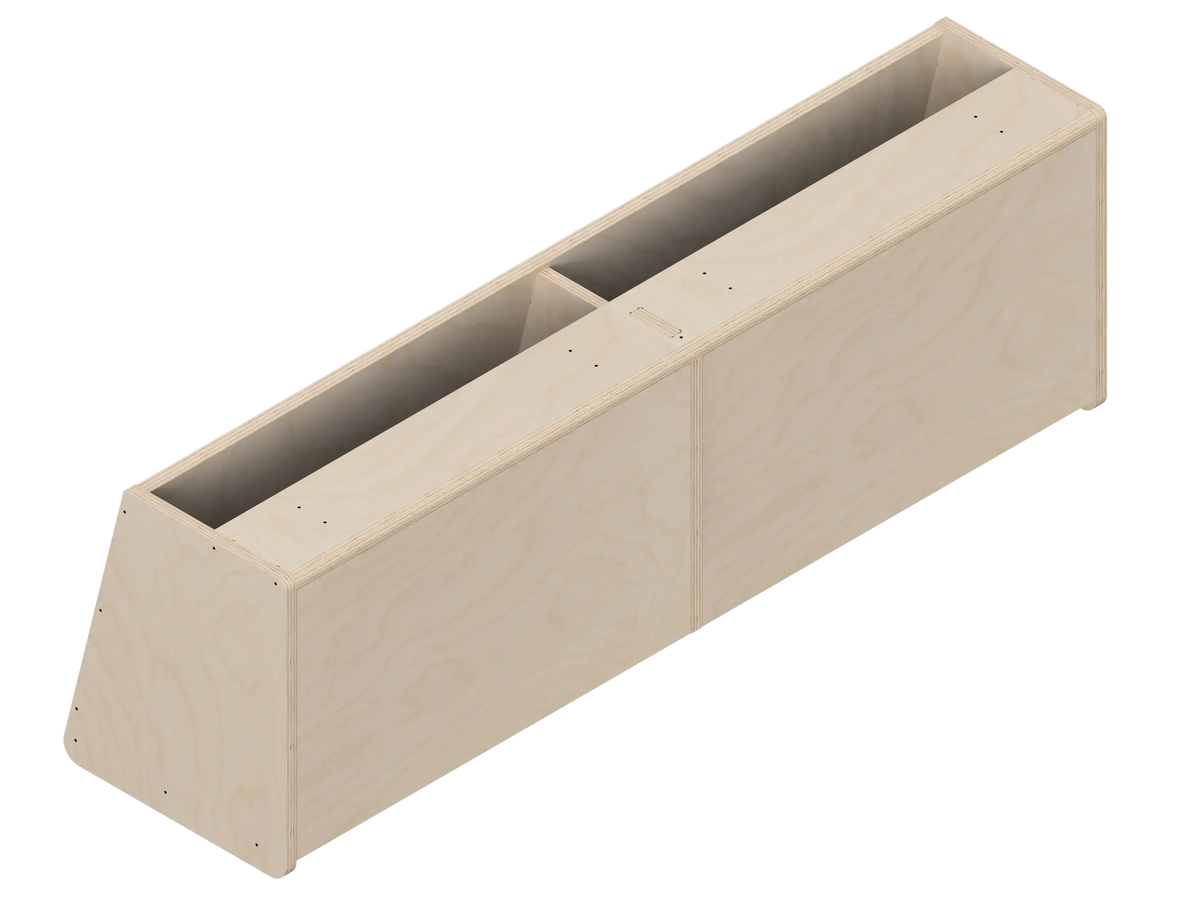

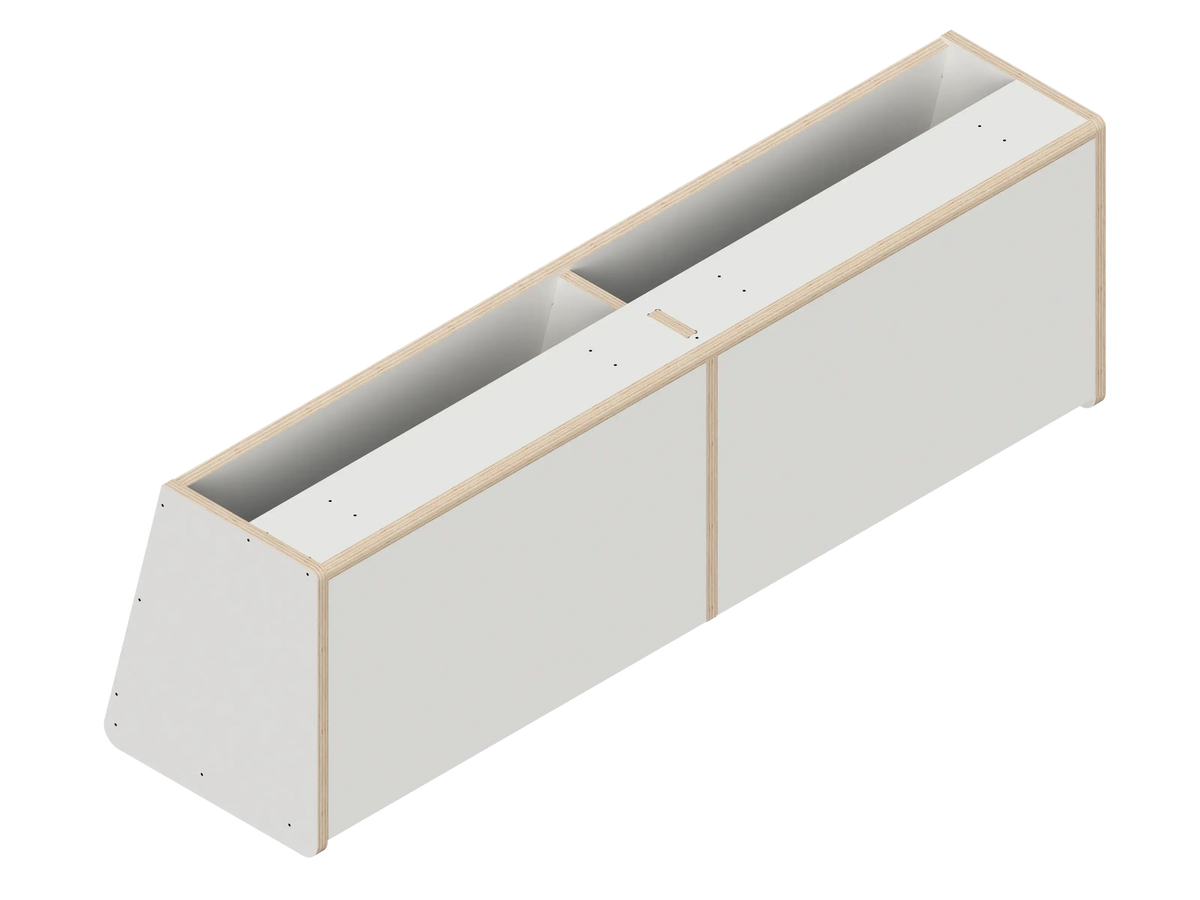

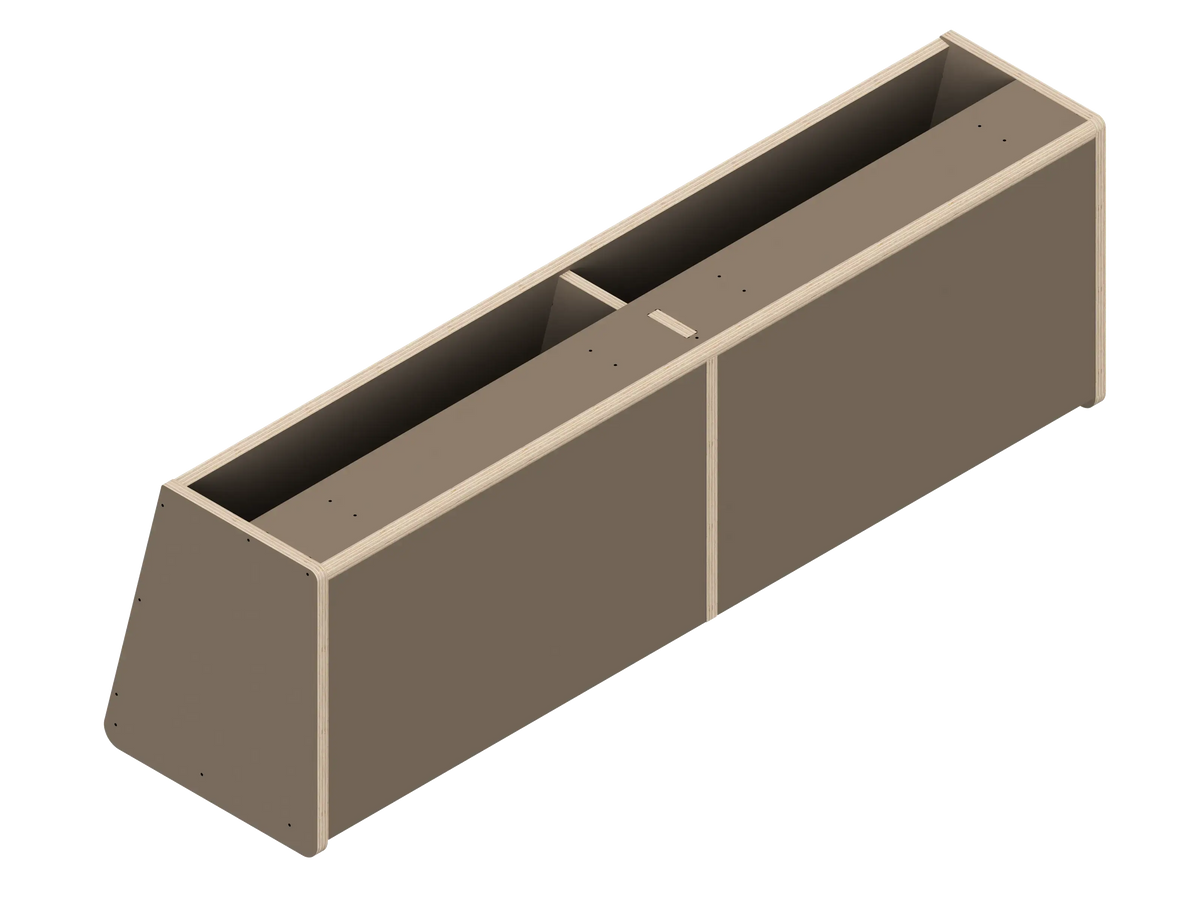

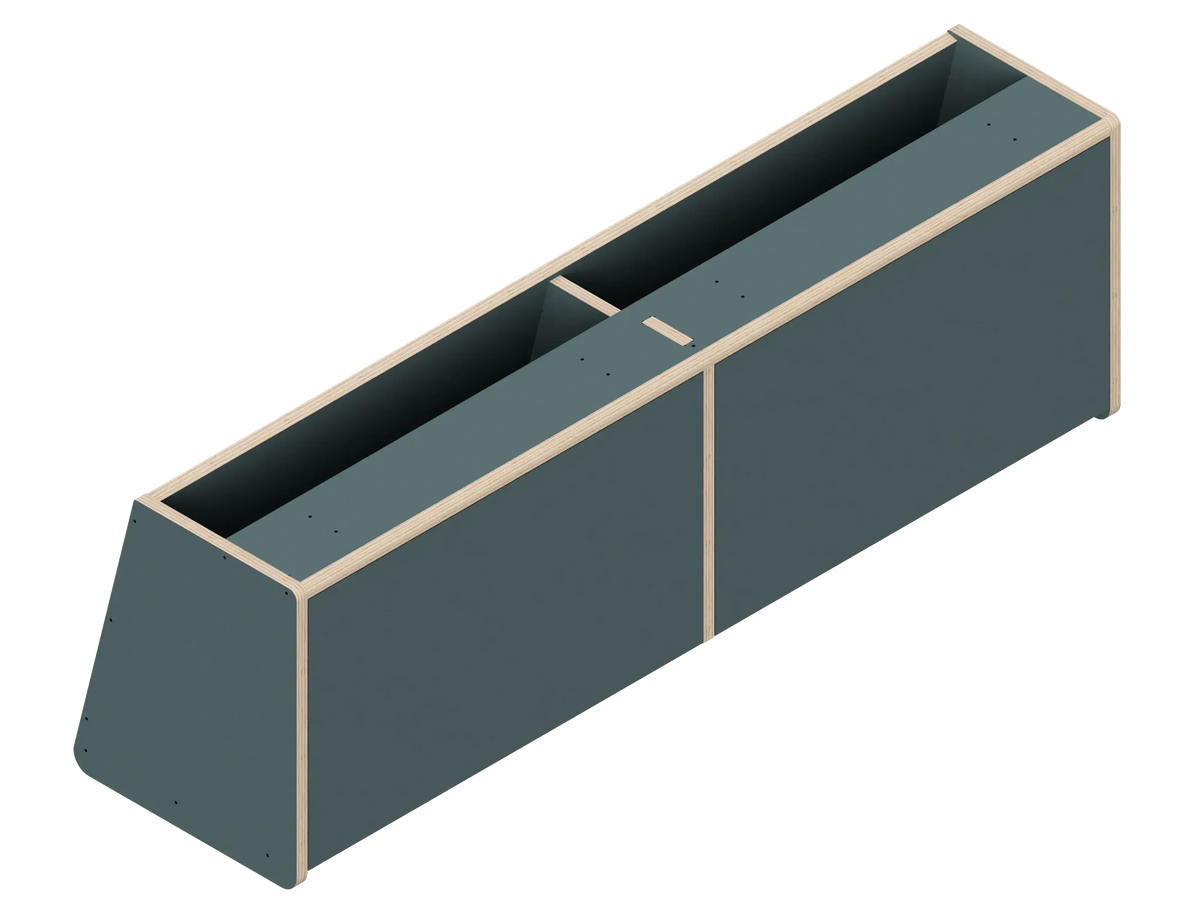

- Material options: 8 choices — Baltic Birch with no laminate, or with white, black, fog, winter sky and other formica laminates
- Finish levels: Wood cut-outs only, sanded edges, or fully assembled (local pickup/delivery)
- Shipping: Free to lower 48 states, ships in 2–4 weeks
Who This Is For:
DIY builders who need flexible, compact overhead storage on a Sprinter — usable on either side of the van. Choose the fully-assembled finish if you'd rather skip the build.
What's Included:
- 9 CNC cut parts
- 4 BLUM inset hinges
- 4 BLUM mounting plates
- 2 BLUM door lifters
- 4 86° hinge clips
- 1 aluminum light track
- 1 light diffuser
- 1 LED strip
- 21 square head cabinet screws
Items to buy separately:
- Mounting Kit (recommended for a secure install)
Tools you'll need:
- Power drill
- 1/8" drill bit
- #1 square driver bit
- #2 Phillips driver bit
- Clamps
- Wood glue
Disclaimer: This product is sold as a DIY kit and requires assembly and installation (except the fully-assembled finish option). The Vansmith is not responsible for damage caused by improper installation.
You may also like
Frequently asked questions about Vansmith DIY parts
Each Vansmith DIY part is designed for a specific chassis and wheelbase, typically Mercedes Sprinter 144 or 170, Ford Transit 148 standard or extended, or both. The product title and description list the exact fit. If you are unsure, message us with your year, make, model, and wheelbase and we will confirm.
Most Vansmith DIY parts are designed for confident weekend builders with basic tools (drill, level, measuring tape, painters tape). Each kit ships with detailed install instructions. We also offer paid phone and video support if you get stuck, and the kits are built to forgive minor measurement errors.
Each DIY kit is made to order and usually ships in 2 to 4 weeks. Larger multi-product bundles take 4 to 6 weeks. Shipping is free to the lower 48 states — larger items via freight, smaller items via UPS or FedEx. Local pickup at our Boulder shop is available; we will email you as soon as your order is ready.
DIY products are non-refundable because each kit is CNC-cut to spec and cannot be resold. If your order arrives with damaged or missing parts, we will ship replacements at no cost. Every DIY part carries a 1-year material warranty covering defects such as delamination, warping from manufacturing, and incorrect cuts. You have 14 days after delivery to inspect and report any issues. Contact DIY@thevansmith.com for warranty claims.
Yes. If you would rather have a pro install your DIY part, we offer paid install slots in our Boulder shop. Most single-part installs (a galley, bed, or cabinet set) take 1 to 3 days. Contact us for current install scheduling and pricing.
Yes. We offer full DIY conversion kits (the DUO Kit for Sprinter 144 and Transit 148, plus the Sprinter 170 DUO Kit) that include the complete interior package: galley, bed, cabinets, panels, and electrical. Bundles save 10 to 15% versus buying parts individually.
