DIY Dual unit Kitchen Galley kit with Storage for Sprinter vans
by The Vansmith DIY
Free local pickup at Vansmith Shop
Usually ships in 2-4 weeks
Compatible with: Mercedes Sprinter 144, Mercedes Sprinter 170

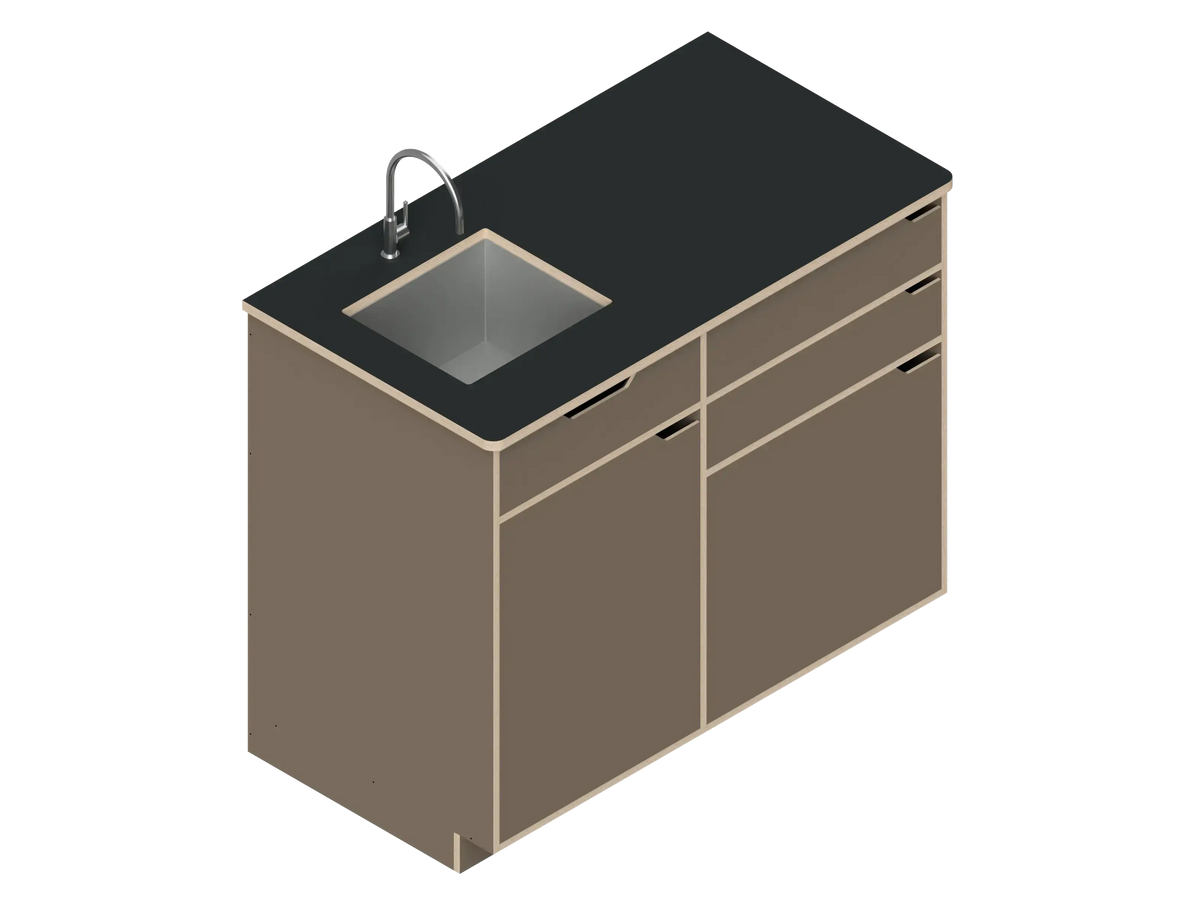

Description: This two-unit galley combines a sink section with extra drawer storage — built by The Vansmith in Boulder, Colorado. Ideal for builders who want water amenities plus organized storage rather than refrigeration. Formica countertop, soft-close BLUM drawers, and a Rev-a-Shelf tray.
Features & Specs:
- Dimensions: 40.6" W x 22" D x 34.5" H
- Layout: Sink section + storage drawers
- Countertop: 3/4" Formica (sink cutout available)
- Storage: Rev-a-Shelf tray + 2 soft-close drawers

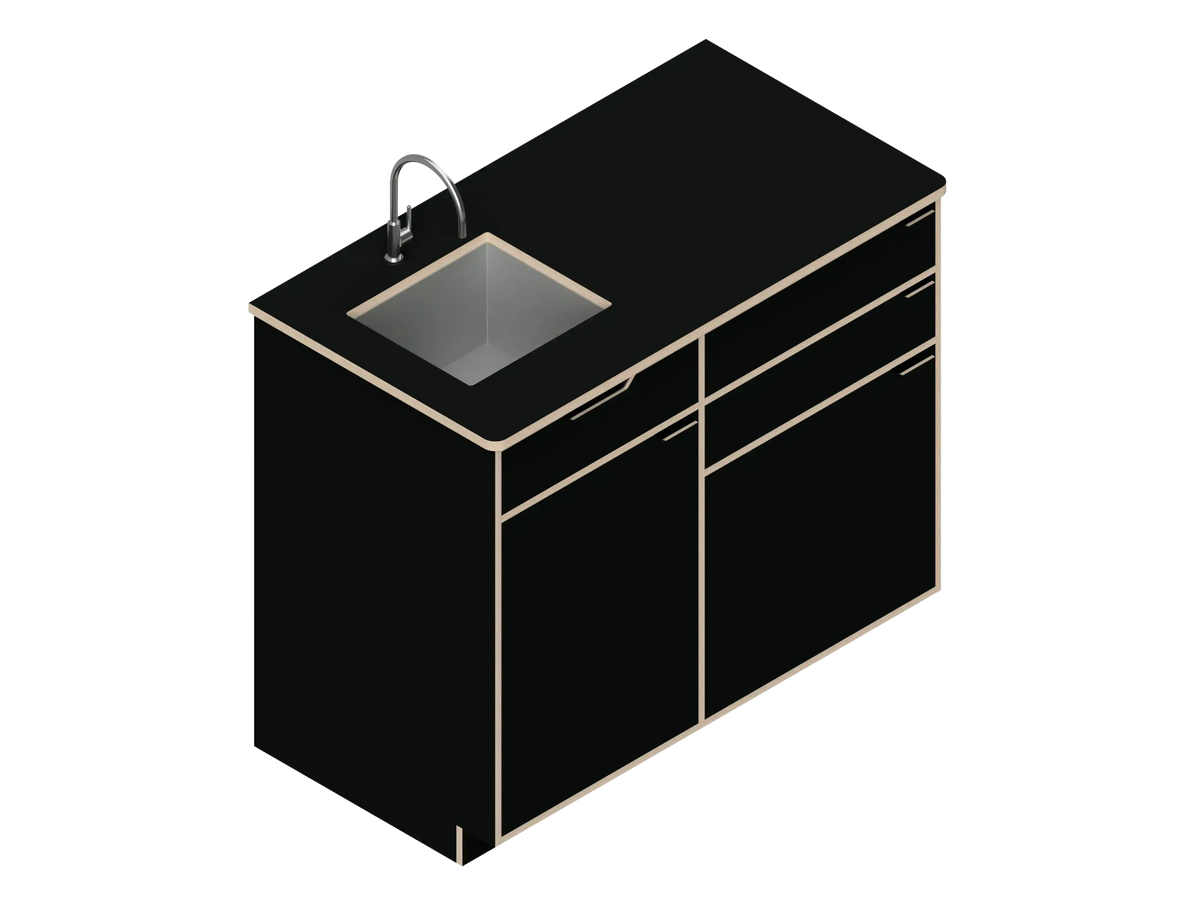

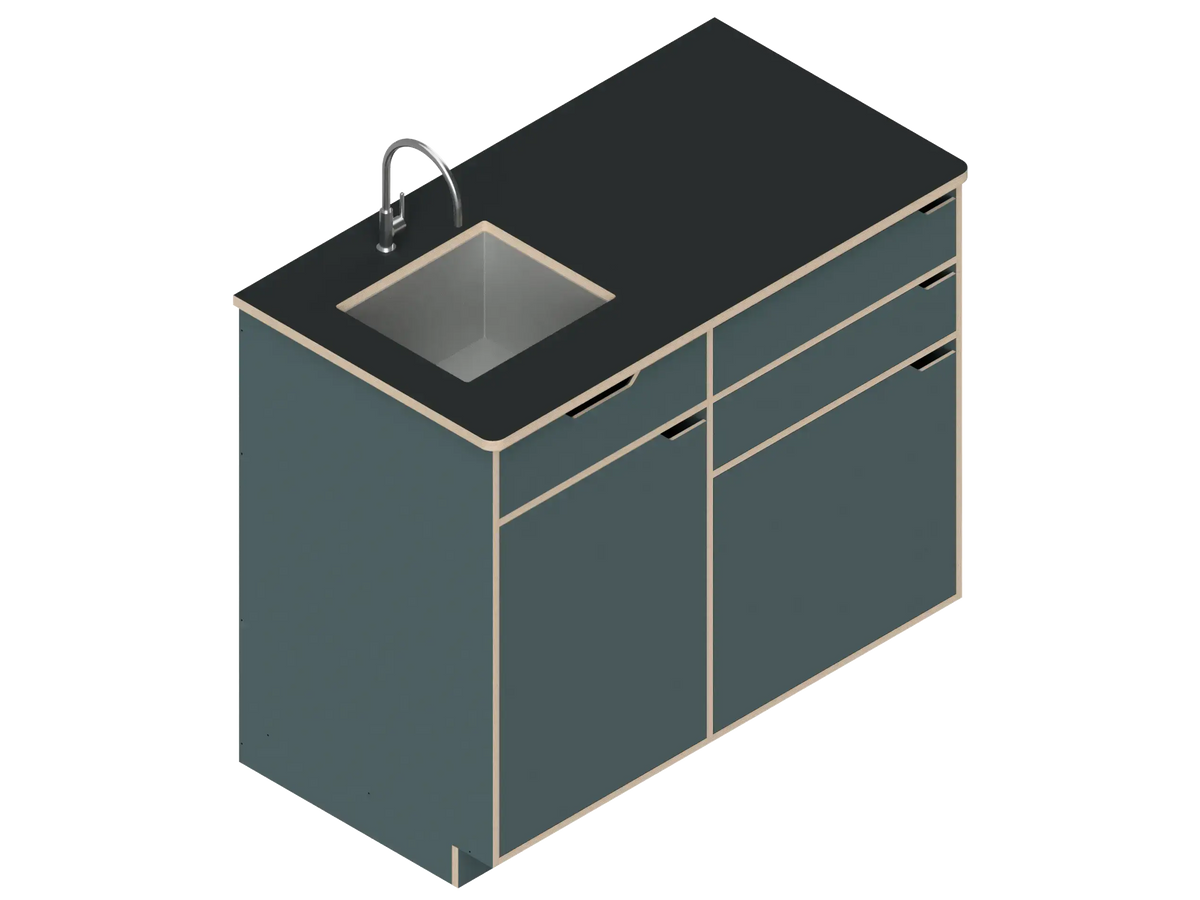

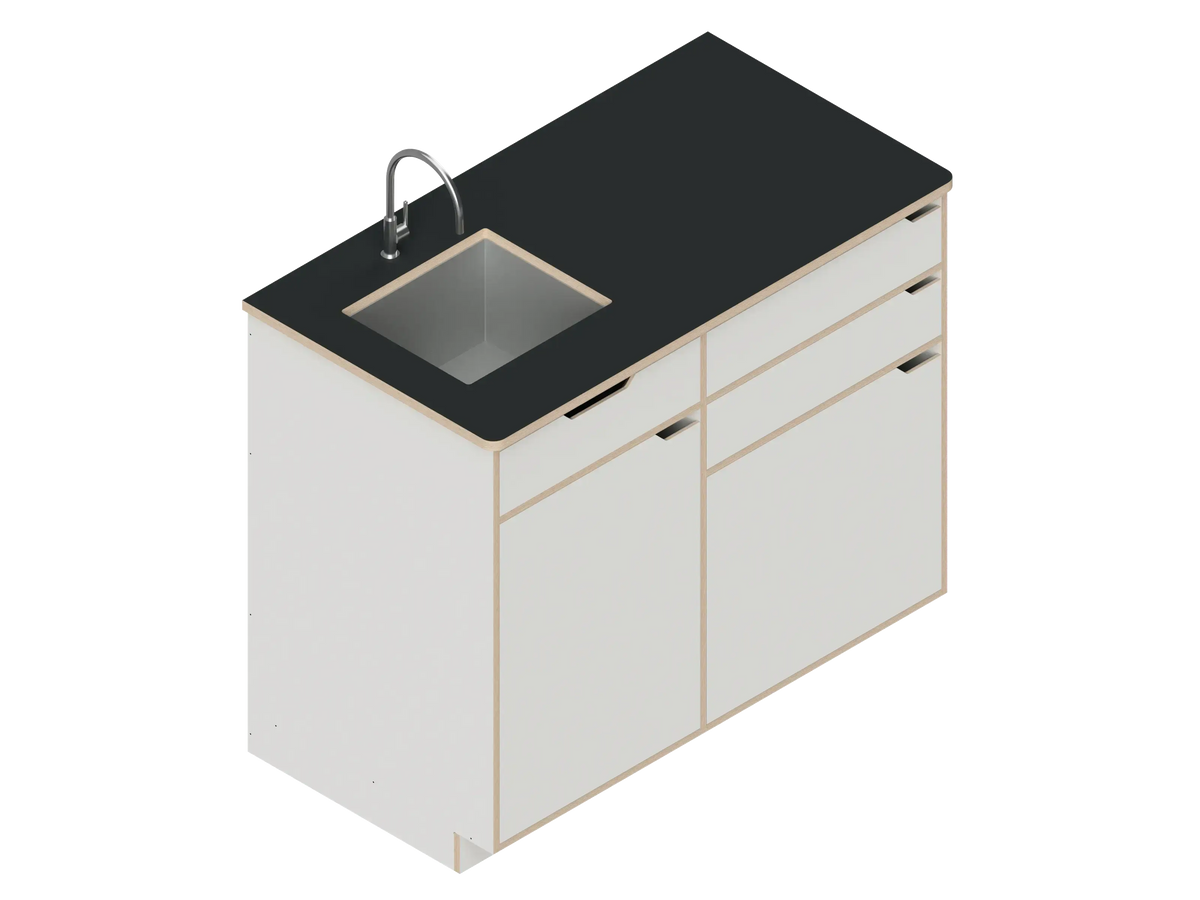

- Material options: 8 choices — Baltic Birch with no laminate, or with white, black, fog, winter sky and other formica laminates
- Finish levels: Wood cut-outs only, sanded edges, or fully assembled (local pickup/delivery)
- Shipping: Free to lower 48 states, ships in 2–4 weeks
Who This Is For:
DIY builders who want a sink and maximum storage instead of a fridge. Great for those running a portable cooler or refrigerating elsewhere in the build.
What's Included:
- 15 CNC cut parts
- 2 BLUM inset hinges
- 2 BLUM mounting plates
- 1 Rev-a-Shelf tray
- 4 Southco closing latches
- 38 square head cabinet screws
- 2 drawer boxes
- 4 18" BLUM drawer glides
- 4 drawer clips
- 1 (3/4") Formica countertop
Items to buy separately:
- Sink and faucet
- Water pump and plumbing
Tools you'll need:
- Power drill
- 1/8" drill bit
- #1 square driver bit
- #2 Phillips driver bit
- Clamps
- Wood glue
Disclaimer: This product is sold as a DIY kit and requires assembly and installation (except the fully-assembled finish option). Appliances and plumbing are not included. The Vansmith is not responsible for damage caused by improper installation.
You may also like
Frequently asked questions about Vansmith DIY parts
Each Vansmith DIY part is designed for a specific chassis and wheelbase, typically Mercedes Sprinter 144 or 170, Ford Transit 148 standard or extended, or both. The product title and description list the exact fit. If you are unsure, message us with your year, make, model, and wheelbase and we will confirm.
Most Vansmith DIY parts are designed for confident weekend builders with basic tools (drill, level, measuring tape, painters tape). Each kit ships with detailed install instructions. We also offer paid phone and video support if you get stuck, and the kits are built to forgive minor measurement errors.
Each DIY kit is made to order and usually ships in 2 to 4 weeks. Larger multi-product bundles take 4 to 6 weeks. Shipping is free to the lower 48 states — larger items via freight, smaller items via UPS or FedEx. Local pickup at our Boulder shop is available; we will email you as soon as your order is ready.
DIY products are non-refundable because each kit is CNC-cut to spec and cannot be resold. If your order arrives with damaged or missing parts, we will ship replacements at no cost. Every DIY part carries a 1-year material warranty covering defects such as delamination, warping from manufacturing, and incorrect cuts. You have 14 days after delivery to inspect and report any issues. Contact DIY@thevansmith.com for warranty claims.
Yes. If you would rather have a pro install your DIY part, we offer paid install slots in our Boulder shop. Most single-part installs (a galley, bed, or cabinet set) take 1 to 3 days. Contact us for current install scheduling and pricing.
Yes. We offer full DIY conversion kits (the DUO Kit for Sprinter 144 and Transit 148, plus the Sprinter 170 DUO Kit) that include the complete interior package: galley, bed, cabinets, panels, and electrical. Bundles save 10 to 15% versus buying parts individually.
