The question comes up more than expected. Where is the mercedes benz sprinter battery location, and why is it harder to access than most vehicles?
We’ve walked many owners through this during service visits and full Sprinter van conversions. The answer depends on the model year, but the logic behind it stays consistent.
Mercedes tucked the main battery away to protect it from road spray, salt, and impact. That’s great for longevity, and it aligns with how NHTSA emphasizes protecting critical components in crash and corrosion scenarios, but it means you need to know exactly where to look and how to get to it without damaging trim pieces or wiring.
If you’re building out a camper van or traveling full-time, understanding your Sprinter battery layout is just as important as knowing your water or propane systems.
Battery Locations Breakdown in a Mercedes-Benz Sprinter
Understanding the Mercedes Sprinter battery location saves time and prevents mistakes during maintenance or replacement. It also helps you plan where to run wiring for inverters, DC-DC chargers, and auxiliary systems in a camper build.
Sprinter platforms have evolved over the years, but the basic layout is similar across generations:
- NCV3 (2007–2018)
- VS30 / 907 (2019 and newer)
Both generations typically keep the starter battery inside the cabin under the driver’s feet. You’ll also find jump-start points under the hood and optional auxiliary batteries in or under the seats, which matches the factory layout shown in the official Mercedes-Benz Sprinter documentation.
Main Starter Battery
In most Sprinter vans, the main starter battery sits under the driver’s side floorboard. This is true for both cargo and passenger vans, and for most diesel and gas variants.
To access it:
-
Slide the driver’s seat all the way back to give yourself room to work
-
Remove the floor mat or rubber liner (factory mats usually lift straight up)
-
Locate the rectangular access panel in the floor
-
Unscrew the panel using Torx bits (commonly T25 or T30, depending on year)
-
Lift the cover carefully, watching for any wiring or insulation around the edges
On some models, there’s a secondary plastic cover or hold-down bracket over the battery itself. Remove this before disconnecting any cables.
This design protects the battery from the weather, but it also makes access less straightforward than in typical vehicles. You’re working in a confined space, often leaning in from outside the van.
We recommend kneeling on a pad or using a small stool to avoid rushing the job because you’re uncomfortable.
A few quick notes by generation:
-
NCV3 (2007–2018): The access panel is usually held by a few Torx screws and lifts out as one piece. The battery sits in a metal tray with a clamp on one side.
-
VS30 / 907 (2019+): Very similar layout, but trim and plastic covers can be slightly different. Some models also integrate more wiring harnesses near the battery, so take your time tracing cables before you move anything.
Auxiliary Battery (If Equipped)
Many vans include an auxiliary battery, especially for extended travel use. Mercedes offers a factory “auxiliary battery” option that supports things like interior lights, power sliding doors, and some camper-style features without draining the starter battery.
Common locations:
-
Under the passenger seat (most common on factory-equipped vans)
-
Inside a seat base compartment, sometimes behind a metal access panel
-
Occasionally under the hood on certain configurations or aftermarket installs
To check if you have a factory auxiliary battery, look for:
-
A large battery-sized box or tray under the passenger seat when you remove the plastic trim
-
Additional heavy-gauge cables running from the main battery area toward the passenger side
-
An “Auxiliary Battery” option listed on your build sheet or door sticker
We often work with auxiliary battery setups when supporting off-grid travel needs in our Sprinter and Transit family van conversions. Placement matters for both safety and long-term performance.
Batteries should be mounted securely, protected from physical damage, and vented correctly if they’re not sealed AGM or lithium units. In a camper build, we’ll usually keep the house battery bank separate from the factory auxiliary battery, then tie them together with a DC-DC charger or smart isolator.
Jump Start Terminals
Instead of accessing the main battery directly, Sprinter vans provide jump-start terminals under the hood. This is especially helpful when you’re parked in tight spaces or have a full camper interior that makes floor access awkward.
This allows:
-
Easier jump starting without removing floor panels
-
Safer access in emergencies, especially on the roadside or in bad weather
-
A convenient place to connect a battery maintainer if the van sits for long periods
On most Sprinters, you’ll find:
-
A clearly marked positive terminal under a red plastic cap under the hood
-
A designated ground point or negative post nearby on the body or frame
Always follow the owner’s manual for exact locations and connection order. It’s one of those small design choices that makes a big difference in real-world conditions, especially for van lifers who may be far from a shop when a battery issue shows up.
Key Battery Details & Maintenance
Location
The battery location on Mercedes Sprinter models is designed for protection, not convenience. Once you know where to look, it becomes routine.
For new owners, we recommend doing a “dry run” of accessing the battery in your driveway before you actually need to replace or service it.
Knowing your exact Sprinter battery placement and under-floor battery compartment layout also helps when planning:
-
Where to route cables for inverters or DC-DC chargers
-
Where to mount fuses and disconnect switches
-
How to balance weight in a camper build (batteries are heavy)
Battery Type
Most modern vans use AGM batteries. These handle vibration and repeated charging cycles better than standard flooded lead-acid batteries.
That’s important for a tall, stiff vehicle like a Sprinter that sees long highway miles and rough forest roads. According to AAA’s guidance on AGM batteries, they’re particularly well-suited to vehicles with higher electrical loads and start-stop systems.
Key advantages of AGM in a Sprinter:
-
Spill-proof design, safer for interior mounting under seats or floors
-
Better performance in cold weather starts
-
Lower self-discharge when the van sits for weeks between trips
Some owners upgrade to lithium (LiFePO4) for house batteries, but the starter battery is almost always left as AGM. This keeps it compatible with the factory charging system and start-stop logic.
Common Sizes
Typical battery for sprinter vans:
-
Group 49 (H8)
-
Group 94R
Always confirm with your model year before replacing. Check:
-
The label on your existing battery
-
Your owner’s manual or service documentation
-
Physical dimensions and terminal orientation (reversed terminals can cause cable reach issues)
For camper builds, we also look at reserve capacity (RC) and amp-hour (Ah) ratings, especially for auxiliary or house batteries. More capacity means more usable time off-grid, but also more weight and cost.
Specifications
-
Voltage: 12V
-
High cold cranking amps (CCA) for cold climates and diesel engines
-
Designed for start-stop systems and frequent short trips in some models
For most Sprinters, you’ll see CCA ratings in the 800–950 range. If you regularly camp in cold mountain environments or run a lot of accessories, staying on the higher end of that range is worth it, and aligns with the kind of high-CCA batteries recommended for diesel vans in resources like Edmunds’ car battery buying guides.
Maintenance
From what we’ve seen over years of use:
-
Check terminals for corrosion at least once or twice a year
-
Keep connections tight, but don’t overtighten and damage posts
-
Avoid deep discharge on starter and factory auxiliary batteries
-
Use a quality battery maintainer if the van sits for long periods, especially in winter
-
Inspect the battery tray and hold-downs to make sure the battery can’t move on rough roads
Cold Colorado winters tend to expose weak batteries quickly. We see a lot of vans come in with slow cranking after a night in the teens.
If your Sprinter hesitates to start, or your interior lights dim noticeably when you crank, it’s time to test the battery before your next big trip.
Mercedes Sprinter Van Battery Replacement
A Mercedes Sprinter van battery replacement is manageable, but it requires care. You’re working in a tight space, around sensitive electronics, and with a heavy component that’s awkward to lift out from under the floor.
If your van is heavily built out, plan ahead. Remove any gear that blocks the driver’s door or floor area before you start.
Give yourself enough daylight and time so you’re not rushing in the dark.
Replacement Steps
-
Turn off all electronics, including lights, fans, inverters, and aftermarket accessories. Remove the key from the ignition.
-
Open the driver’s door, slide the seat back, and remove the floor mat to expose the access panel.
-
Remove the floor panel using the correct Torx driver. Keep the screws in a small container so they don’t disappear into the van.
-
If equipped, remove any plastic covers or metal hold-down brackets over the battery.
-
Disconnect the negative terminal first. This reduces the risk of short circuits if your tool touches metal.
-
Disconnect the positive terminal next. Cover the cable end with a rag or tape if it can move around.
-
Disconnect the vent tube, if present, from the side of the battery.
-
Remove the battery hold-down clamp or bracket at the base of the battery.
-
Lift the battery carefully straight up and out. It’s heavy—use proper lifting technique or a second person if needed.
-
Place the new battery in the tray, matching the orientation of the old one so the cables reach naturally.
-
Reconnect the vent tube to the new battery if required.
-
Reinstall the hold-down clamp and make sure the battery cannot move.
-
Reconnect the positive terminal first, then the negative terminal.
-
Double-check all connections for tightness and clearance from moving parts or sharp edges.
-
Reinstall any covers, then the floor access panel and mat.
Take your time here. The placement makes it easy to rush and miss a step.
After installation, start the van and let it idle for a few minutes. Watch for warning lights on the dash and listen for any unusual sounds from fans or relays cycling.
Some models may require simple resets, like:
-
Reinitializing power windows (often done by holding the switch up/down for a few seconds)
-
Resetting the clock and radio presets
-
Recalibrating steering angle or driver-assist systems after a short drive

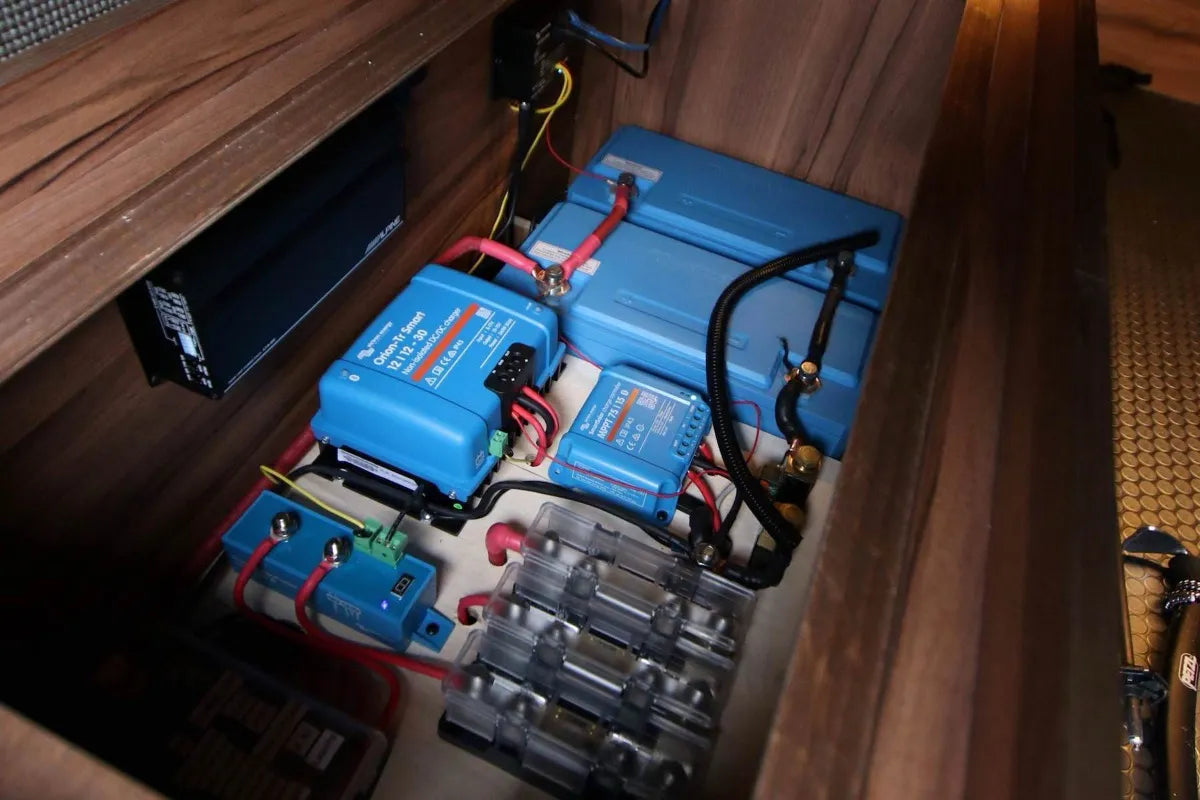

Upgrades and Auxiliary Battery Options
Auxiliary Battery
Adding or upgrading a sprinter van battery system allows:
-
Longer off-grid use without idling the engine
-
Stable power for lighting, fans, fridges, and appliances
-
Separation between “house” loads and the starter battery so you can always start the van
We’ve supported many setups where a second battery improves daily usability without overcomplicating the system. For simple builds, a single AGM or lithium house battery with a DC-DC charger from the alternator is often enough.
For more power-hungry rigs (induction cooktops, large inverters, electric heaters), multiple batteries and solar input make sense.
When planning an auxiliary system, consider:
-
Location: Under-seat, in a cabinet, or in the rear cargo area
-
Weight distribution: Keeping heavy batteries low and near the axle
-
Access: You’ll eventually need to service or replace them
-
Charging method: Alternator-only, alternator plus solar, or shore power chargers
This ties into one of our core principles. Systems should support your travel, not create extra work.
A well-designed auxiliary battery setup should feel invisible day to day—you just use your lights, fridge, and outlets without thinking about it, and the system quietly recharges while you drive or sit in the sun.
Key Fob Battery Replacement
2019 and Up
-
Use a small flat tool to open the case, usually by prying at the seam indicated in the owner’s manual.
-
Replace with a CR2032 battery, matching the polarity (+ side up).
-
Snap the case back together firmly and test lock/unlock before walking away from the van.
2018 and Older
-
Slide the mechanical key out from the fob.
-
Use the key or a small screwdriver to open the back panel.
-
Replace battery (usually CR2025 or CR2032—check the original).
-
Reassemble the fob and confirm the buttons respond.
This is one of the simplest fixes, yet it often gets overlooked. A weak key fob battery can cause intermittent locking issues or make push-button start systems act up, which can be confusing if you’re troubleshooting other electrical problems.
Tools Needed for Replacement
-
T25 or T30 Torx driver for the floor access panel and some trim screws
-
Socket wrench with appropriate sockets (commonly 10mm or 13mm for battery terminals and clamps)
-
Gloves to protect your hands and improve grip on the battery
-
Safety glasses, especially if you’re working around older corroded batteries
-
Memory saver (optional but helpful) to preserve radio presets and some settings
-
Small brush or terminal cleaner to remove corrosion if needed
Having the right tools prevents damage to panels and connectors. It also keeps the job calm and controlled, which matters when you’re working inside the van instead of under a traditional hood.
Replacement Tips from Real Use
Disconnect Order
Always disconnect the negative first. This reduces the risk of short circuits.
When reconnecting, reverse the order: positive first, negative last. It’s a small detail that prevents big sparks and potential damage.
Backup Power
Use a memory saver if you want to preserve settings. Otherwise, expect system resets.
For vans with aftermarket stereos, alarms, or complex navigation systems, a memory saver can save you from reprogramming everything after a simple battery swap.
Vent Tube
Ensure the vent tube is properly connected. This is critical for AGM batteries mounted inside the cabin.
Even though AGM batteries are sealed, the vent path is there for a reason. If your new battery has a different vent port layout, use the correct adapter or plug the unused side per the manufacturer’s instructions.
We also recommend:
-
Avoiding metal tools across both terminals at once
-
Keeping drinks and liquids away from the work area
-
Taking a photo of your original wiring before you disconnect anything, especially if there are aftermarket accessories tied in
Popular Replacement Options
OEM
OEM batteries match factory specifications and are reliable for most users. They’re designed to work with the Sprinter’s charging profile, start-stop logic (if equipped), and electrical load. You can cross-check specs against the options listed in the official Mercedes-Benz Sprinter features and equipment pages.
For owners who prioritize simplicity and don’t want to think about compatibility, OEM is a solid choice.
Aftermarket
Aftermarket options like AGM upgrades can offer:
-
Longer lifespan in demanding use
-
Better cycling performance if you occasionally run accessories with the engine off
-
Potentially higher CCA for cold climates
We look for reputable brands with strong warranties and clear specifications. Cheaper batteries can be tempting, but in a van that may be hundreds of miles from the nearest parts store, reliability is worth paying for.
Auxiliary Battery
For extended travel, a secondary battery setup adds flexibility without affecting the starter system. Many van lifers pair a robust AGM or lithium house bank with solar and a DC-DC charger, leaving the factory starter battery to do what it does best—start the engine every time.
When we design these systems, we size the auxiliary bank based on real-world usage: how many hours the fridge runs, how often fans are on, whether you’re charging laptops, and how much sun you typically see.
The goal is to right-size the system so you’re not constantly watching a battery monitor or worrying about running out of power.
Important Notes
-
Always match battery specifications exactly for the starter battery (group size, CCA, AGM type, and terminal layout).
-
Improper installation can affect vehicle electronics, from warning lights to charging behavior.
-
Never bypass or remove factory fuses or safety devices to “make something fit.”
-
If unsure, seek professional help, especially if your van has aftermarket electrical work layered on top of the factory system.
We’ve repaired issues caused by incorrect installations more often than expected. Taking a careful approach saves time later.
A clean, well-thought-out battery install is one of those invisible upgrades that pays off every time you turn the key or flip on a light in camp.
Final Thoughts
The Mercedes-Benz Sprinter battery location can feel inconvenient at first, but it serves a purpose. Protection, safety, and durability all play a role in its placement.
Once you’re familiar with where everything lives—the starter battery under the floor, the auxiliary battery under the seat, and the jump points under the hood—maintenance becomes straightforward.
At The Vansmith, we spend a lot of time working with these systems in real conditions. The goal is always the same—keep things reliable, simple, and ready for the road ahead, whether you’re planning to build on a Sprinter 144 short wheelbase, exploring a Sprinter 170 long wheelbase layout, shopping for a finished Sprinter camper van for sale, or need expert help from our team with full camper conversions with showers.
FAQs
Where is the battery in a Sprinter van?
The main battery is located under the driver’s side floorboard. Some models also have an auxiliary battery under the passenger seat or in the seat base.
Jump-start terminals are under the hood for easier access.
What size battery does a Sprinter use?
Most use Group 49 (H8) or 94R AGM batteries, depending on the model year. Always confirm group size, CCA, and terminal layout against your existing battery and owner’s manual.
Do I need to reset after replacing the battery?
In some cases, yes. Settings like the clock and radio may reset.
Advanced systems may require recalibration after a short drive. Power windows and other convenience features may need to be reinitialized per the owner’s manual.
Can I replace it myself?
Yes, but care is required due to the location and electrical connections. If your van has a complex camper electrical system tied into the starter battery, or if you’re not comfortable working around high-current wiring, it’s worth having a professional handle it.
How long does it take?
Typically 30 to 60 minutes, depending on experience and tools. First-time DIYers should plan for closer to an hour so there’s no pressure to rush, especially when working around the confined sprinter battery compartment under the driver’s floor and locating the exact Sprinter battery placement for your specific rig during a mercedes sprinter battery replacement or general starter battery change.
