Camper Solar Power: How Much Do You Really Need for Your Setup?

Solar power is the backbone of easy, off-grid van life - especially in Colorado where sunshine is plenty but winter sun hours and mountain weather can affect how well it works (NREL). Sizing your system the right way makes sure every device runs well day and night.

Step 1: Calculate Your Daily Energy Needs

List All Appliances and Devices

• Write down each electrical device you’ll use: lights, fridge, water pump, fans, phones, laptops, cooking gear, etc.

Find the Wattage

• Check appliance labels or manufacturer specs. If listed in amps, multiply by voltage (Volts×Amps=WattsVolts \times Amps = WattsVolts×Amps=Watts).

Estimate Daily Use

Figure out the daily energy you need by timesing each device’s wattage by hours used per day, and add them up for your total.

One load worth adding to that list is heating, and it matters most in exactly the season when solar production is lowest. A diesel heater draws 1 to 3A while it is running, which works out to roughly 12 to 36Wh per hour, so an overnight cycle adds up on top of the daily total above.

Step 2: Estimate Your Solar Panel Size

Consider Sun Hours

• Colorado gets about 5–6 peak sun hours in summer, less in winter (NREL). For steady year-round power, use 5 sun hours/day in your math.

Calculate Needed Wattage

Use this formula:

Panel wattage=Daily energy use (Wh)Sun hours×System efficiency\text{Panel wattage} = \frac{\text{Daily energy use (Wh)}}{\text{Sun hours} \times \text{System efficiency}}Panel wattage=Sun hours×System efficiencyDaily energy use (Wh)

System efficiency: Use 80% (0.8), accounting for losses in wiring, batteries, and inverters.

Example: For 1,745 Wh/day, 5 sun hours, 80% efficiency:

17455×0.8=436W\frac{1745}{5 \times 0.8} = 436 \text{W}5×0.81745=436W

Choose at least 400–500W solar for standard setups. Increase for winter or heavy use.

Adjust for Where You Travel

Sun hours are not the same everywhere. Excellent solar regions (the Southwest, Southern California, Arizona and Nevada) deliver roughly 4 to 6 kWh per kW of panels each day with minimal seasonal variation. Good solar regions such as Colorado, Utah and most of the Western US run 3.5 to 5 kWh per kW with moderate seasonal swing, while moderate regions like the Midwest, the Eastern US and cloudier climates come in at 2.5 to 4 kWh per kW with significant seasonal variation.

In practice, that means the same 300W array averages 1,200 to 1,800Wh a day in an excellent region, 1,050 to 1,500Wh in a good region, and 750 to 1,200Wh in a moderate one. If your travels keep you east of the Rockies or under regular cloud cover, plan on the lower end.

Step 3: Example Scenarios & General Guidelines

• Minimum: 200–300W solar, 100Ah battery: lights, charging, fans, minimal fridge.
• Standard: 400W solar, 200–300Ah battery: fridge, laptops, water pump, entertainment.
• Power-Hungry: 600W+ solar, 400Ah battery: full kitchen, HVAC, work setups, gaming consoles.

Additional Tips

• Always use a spreadsheet or calculator to plan.
• Oversize your panels if you’ll use energy-intensive appliances or camp off-grid in winter.
• Measure your van roof space before choosing panel sizes and configurations.
• Portable panels add flexibility (great for limited roof space).
• Each solar panel should match your roof layout, travel season, and energy goals.

Why Choose Solar Power for an RV?

Solar power for an RV isn’t just about cutting cords - it’s about gaining freedom. With a well-sized solar setup, you can:

• Keep your fridge cold and your lights on - without running a noisy generator
• Save money on campground hookups
• Reduce your carbon footprint
• Charge your RV batteries while you explore

Putting solar panels on an RV means you're putting money into energy freedom - and greener power, too.

Benefits of a Camper Van with Solar

A camper van with solar gives you:

• Quiet, reliable energy off-grid
• Fewer trips to plug-in stations
• Sustainable energy from a renewable source

At The Vansmith, we build every van with purpose and passion. That includes solar-ready wiring, solid hardware, and easy-to-use systems - built to keep you roaming further and longer.

Components of an RV Solar Charging System

Before figuring out how much solar power you need, it's key to know the parts of the system:

• Solar Panels: These collect sunlight and convert it into electricity.
• Charge Controller: Regulates voltage and prevents battery overcharging.
• Batteries: Store the energy for when the sun isn't shining.
• Inverter: Converts stored power into usable AC electricity for your devices.

Want to take it to the next level? Pair solar panels for mobile homes with lithium battery add-ons and tracking systems for the best use of power.

Determine Your Battery Capacity

Once you know your daily use, multiply that by the number of days you want to run off-grid.

For 2 days of autonomy at 750Wh/day, you need 1500Wh or 125Ah (at 12V) of usable battery capacity.

How Much Solar Power Do I Need for My Camper?

Now to the big question: How much solar power do I need for my camper?

Use this formula: Total daily watt-hours ÷ typical sun hours per day = panel wattage needed. For instance, 750Wh ÷ 5 sun hours = 150W. Add a buffer of 30–50%, and you’ll want a 200–250 watt panel setup.

Real-World RV Solar Panel Examples

Is a 400 watt solar panel enough for RV?For most small to mid-range setups - yes. It's a common size for van builds with bathroom, fridges, and fans.

What about a 1000 watt solar panel kit for RV?This is ideal for large power loads, like cooking, AC units, and long off-grid stays.

How Camper Solar Power Fits Into a Complete Charging System

Camper solar power is only one part of a reliable electrical setup. At The Vansmith, we often see that the right amount of solar depends on how the battery bank is recharged when sunlight is limited.

A complete system may use several charging sources, including solar power, alternator charging, and shore power. The battery bank stores energy, while each charging source helps replenish it under different travel conditions.

For example, solar can work well when a van is parked in direct sun. Alternator charging can help during long driving days, while shore power can recharge the batteries when parked at a campground or other location with an electrical hookup.

Over years of supporting adventure vans in Colorado, we have seen how quickly weather can change the equation. A system that works well during a sunny summer trip may need another charging source during winter travel or extended periods of cloud cover.

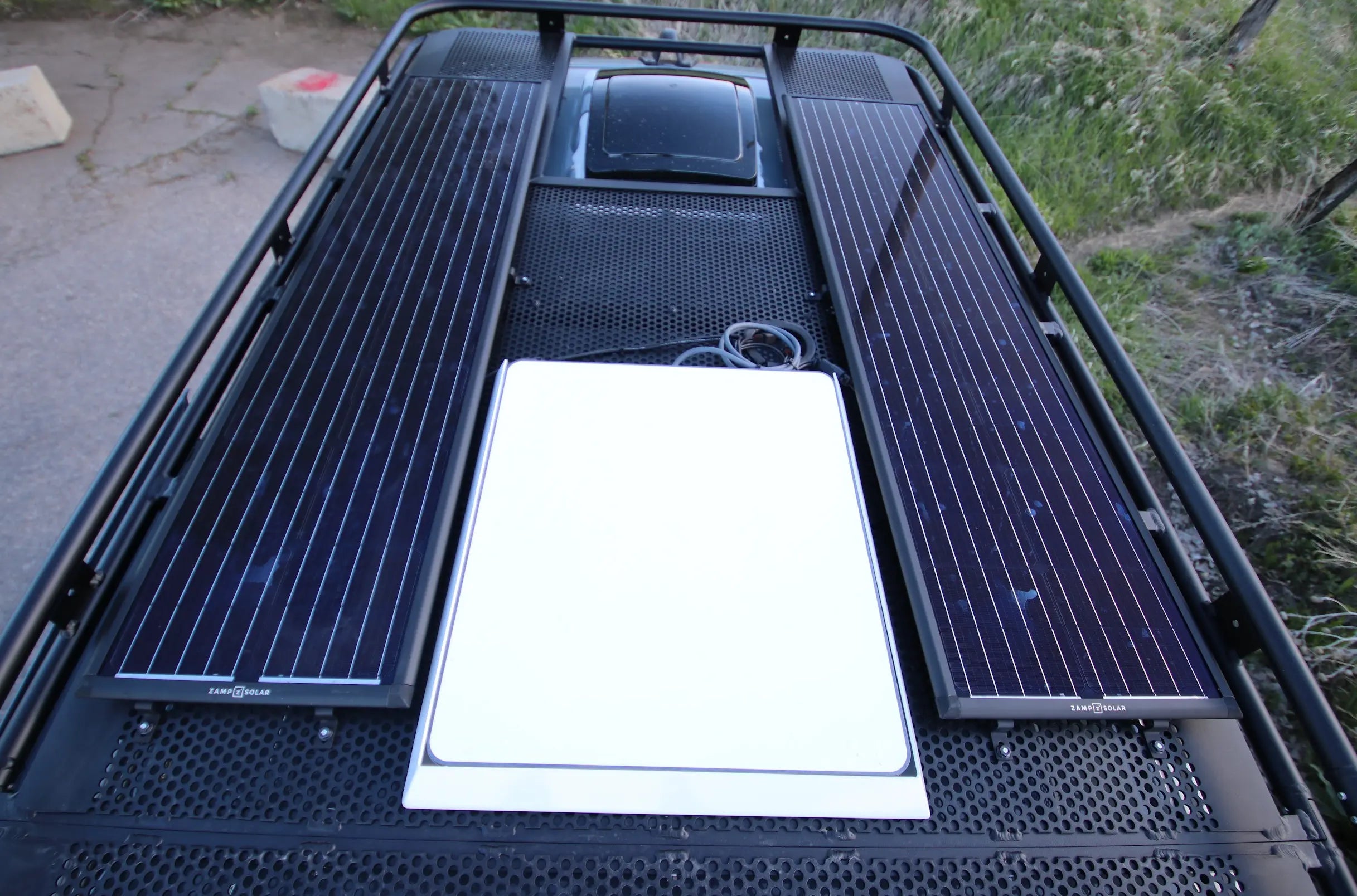

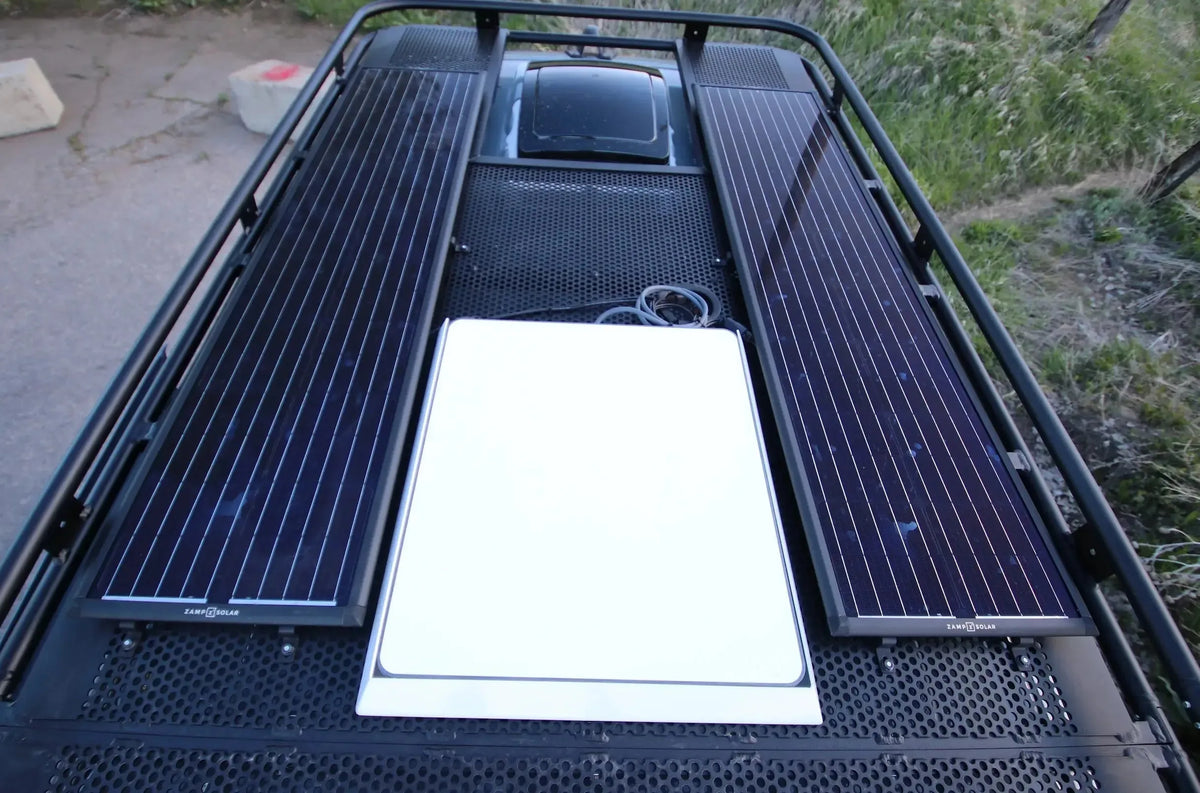

How Many Solar Panels Fit on a Sprinter 144?

If you’re wondering how much solar on Sprinter 144 you can get, here’s the breakdown:

• Standard Setup: Two 100W panels (200W total)
• Larger Setup: Three 200W panels (600W total)
• Max Potential: Up to 800W if rack-mounted

Factors like fan placement, roof racks, and AC units will affect layout.

Why Solar Alone May Not Always Be Enough

Solar output depends on more than panel size. Shade, clouds, short winter days, snow, panel angle, and limited roof space can all reduce the energy produced.

The size of that seasonal swing surprises most people. Production can vary by more than 300% between summer and winter. A 300W array in good conditions makes roughly 1,200 to 1,500Wh a day in summer, 750 to 1,050Wh in spring and fall, and only 450 to 750Wh in winter.

Stepping up to 400W moves those figures to about 1,600 to 2,000Wh in summer, 1,000 to 1,400Wh in spring and fall, and 600 to 1,000Wh in winter. If you plan to camp through the cold months, size the array against the winter figure rather than the summer one.

This matters most for travelers with higher daily power use. Remote work, larger refrigeration systems, extended heater use, and other electrical loads can drain a battery bank faster than the solar panels can recharge it.

Adding more panels can help, but roof space is limited on many vans. For that reason, it is useful to plan the full charging system rather than relying only on a larger solar array.

A balanced approach gives you more flexibility when conditions change. Solar may be the primary source while parked, while alternator charging and shore power can provide useful backup options.

Starter Battery vs. House Battery

The starter battery and house battery bank have different jobs. The starter battery is used to start the vehicle and support vehicle systems.

The house battery bank powers the living area. Depending on the setup, it may support lights, refrigeration, fans, water pumps, laptops, and other equipment used while parked.

Keeping these systems properly managed is important. You do not want to drain the starter battery while using power in the living area.

The vehicle alternator is designed primarily to support the vehicle and recharge the starter battery. With the right equipment, it can also provide controlled charging for the house battery bank while driving.

Tips for Estimating RV Solar Panel Needs

• Start with energy efficiency: Choose LED lights, low-draw appliances, and a DC fridge.
• Measure your actual usage with a battery monitor.
• Plan for cloudy days by slightly oversizing your system.
• Use tiltable panels if you camp in winter or shady areas.

RV Solar Panel Installation Cost

Wondering about RV solar panel installation cost?

• DIY Kits: ~$500–$1,200 (including a 400-watt solar panel kit for RV)
• Professional Installation: $2,000–$6,000+ depending on system size and labor

The Vansmith offers quality solar panel kits and installs in every eco van conversion. We tailor each setup to your needs - keeping you with power wherever your trail leads.

How Alternator Charging Supports Camper Solar Power

Alternator charging can be useful when solar production is low or when you spend long hours driving between destinations. As the engine runs, the alternator can provide energy that helps recharge the house battery bank.

This can be especially helpful during winter trips, cloudy weather, or travel where the van changes location often. In these situations, relying only on parked solar production may leave less charging time than expected.

The right charging rate depends on the battery type, battery capacity, vehicle electrical system, and alternator capacity. More charging current is not always better if it creates unnecessary strain on the vehicle or battery system.

At The Vansmith, we encourage owners to think about how they actually travel. A weekend camper that drives several hours each day may have different charging needs than a remote worker who stays parked for several days.

Why Lithium Batteries Need Controlled Charging

Lithium batteries can offer useful capacity and fast charging, but they need charging equipment that matches their requirements.

Their charging behavior differs from older lead-acid batteries. For that reason, the system should use the correct voltage and current limits for the battery.

A Battery Management System, often called a BMS, also plays an important role. It monitors battery conditions and helps protect the battery during charging and use.

When planning a lithium battery system, consider the battery, charging sources, and protective equipment together. A well-matched system is easier to manage over time.

Why a DC-DC Charger Matters

A DC-DC charger is commonly used to manage charging from the vehicle alternator to the house battery bank. It helps provide a controlled charging profile instead of sending alternator output directly to the battery.

This can be particularly important with lithium batteries. The charger can regulate charging current and voltage based on the needs of the battery system.

It can also help protect the vehicle's electrical system from excessive demand. This matters when a large battery bank could otherwise draw more current than the alternator should continuously provide.

The correct charger size depends on the vehicle and battery system. It should be selected as part of the complete electrical plan rather than based only on the largest available charging rate.

Smart Alternators Need the Right Charging Approach

Many modern vehicles use smart alternators that can vary their voltage based on driving conditions and vehicle needs. This can make direct charging less predictable.

A properly selected DC-DC charger can help manage these changes and provide more consistent charging for the house battery bank.

Before adding alternator charging, it is worth checking how the vehicle's charging system operates. The vehicle platform, battery type, and charging equipment should work together.

This is one area where careful planning can prevent problems later. At The Vansmith, purpose-driven design means looking at how each part of the electrical system affects the others.

Avoid Direct Alternator-to-Lithium Connections Without Proper Control

Directly connecting a large lithium battery bank to a vehicle alternator without proper charge control can create unnecessary risks.

Lithium batteries may accept high charging current. Without current limiting, that demand can place added strain on the alternator.

Over time, excessive demand may contribute to overheating or reduced alternator life. Proper charging equipment helps limit current and manage how energy moves from the vehicle to the house battery bank.

For this reason, alternator capacity should always be considered when planning a high-capacity electrical system.

When a Second Alternator May Make Sense

A second alternator may be worth considering for some vans with higher electrical demands. This approach can provide additional charging capacity without placing the same demand on the vehicle's primary charging system.

It may be useful for travelers with large battery banks, high daily energy use, or equipment that needs significant charging between stops.

However, it is not necessary for every setup. Many weekend and moderate-use systems can work well with solar, battery storage, controlled alternator charging, and occasional shore power.

The best approach depends on actual power use and travel habits.

Choose a Charging Strategy Based on How You Travel

The right amount of camper solar power is easier to choose when you consider how you recharge the batteries throughout a trip.

Weekend travel: Solar can cover many basic loads, while alternator charging may replenish the battery during drives.

Extended off-grid travel: Larger solar capacity and battery storage may be useful, with alternator charging as another source when sunlight is limited.

Winter travel: Shorter days and changing weather can reduce solar output. Controlled alternator charging or shore power may become more important.

Remote work: Laptops, monitors, internet equipment, and other daily loads can increase energy use. A balanced system provides more flexibility during long stays.

Family travel or higher electrical use: More occupants and equipment can increase daily demand. Battery capacity and charging sources should be planned together.

Questions to Ask Before Installing or Upgrading Your Power System

Before choosing solar panels or increasing battery capacity, ask these practical questions:

• How much power do I use each day?
• How long will I stay parked without driving?
• How much solar production can I expect in my usual travel conditions?
• How much roof space is available for solar panels?
• Can my vehicle alternator safely support house battery charging?
• Does my battery system need a DC-DC charger?
• Is the charging equipment compatible with lithium batteries?
• How will I recharge the batteries during winter or extended cloudy periods?
• Do I need shore power as part of my regular charging plan?
• Will my system support future electrical needs?

After more than a decade of hands-on experience with adventure vans, one pattern is clear: the best power system is based on real travel habits. The right solar size matters, but it works best when the battery, alternator charging, and shore power strategy are planned together.

The Vansmith supports van owners with thoughtful installations, repairs, and long-term guidance because electrical needs often change with how a van is used. Planning the system around those real needs can make it easier to travel with reliable power across different seasons and conditions.

Final Thoughts

Putting solar panels on an RV is one of the smartest upgrades for off-grid adventure. Whether you’re charging RV batteries with solar for a weekend in Moab or running an eco van conversion full-time, a well-planned system keeps your journey moving.

At The Vansmith, we combine fresh design with top-notch craftsmanship - building every camper van with solar in mind. Our custom service means you’ll get the right setup for your lifestyle, from a basic 200-watt kit to a full 1000 watt solar panel kit for RV living.

If you're planning a full build, our guide on how to convert a camper van into the ultimate mobile home walks through key systems like solar power, insulation, and energy-efficient design to help you build smarter from day one.

Looking for help designing a solar-ready van? Explore our eco van conversion options or contact our team today.

Go anywhere. Stay powered. Live the life you imagine - with The Vansmith.

FAQs

Can you install rooftop solar power panels on a mobile home?

Yes. Mobile homes, RVs, and vans can all be equipped with solar panels.

How many watts of solar do I need?

It depends on your daily usage, but most vanlifers install 200–600W.

How many solar panels do I need to run 30 amps?

You’d need a system that makes at least 360W per hour for one hour or 1,800Wh per day - usually 500–800W of panels.

How big of a solar system do I need to run a camper?

For full-time travel, aim for 400–800W of solar panels and 200–400Ah of battery storage.

Can you run an RV completely on solar power?

Yes - with enough panels and battery capacity, many vanlifers go fully solar.

Will the solar panel keep my RV battery charged?

Yes, as long as the system is sized properly and there’s adequate sunlight.

How much power do you need to run a camper?

Most small campers use 700–1,200Wh per day, depending on amenities.

How many solar panels would it take to run a mobile home?

Mobile homes require much more power - typically 10–20 panels or a grid-tied system.

How many batteries do I need for solar power?

That depends on your system voltage and how many days you want off-grid. Most setups use 200–400Ah of lithium for steady, reliable power.

How Many Batteries Do I Need for Solar Power?

For camper vans, a good rule of thumb is to install about 100 amp-hours (Ah) of battery storage for every 200 watts of solar panels you plan to use. Most vanlifers run a 200–300Ah lithium battery bank paired with 400–600W of solar to cover daily needs (lighting, fridge, fans, devices) for 1–2 people. Expand battery storage if you plan to run high-power appliances or camp off-grid for several days.

For two days off-grid at 750Wh/day, you’ll need at least 1500Wh or 125Ah usable battery storage at 12V.

How Much Solar on Sprinter 144?

The Sprinter 144 roof usually fits 300–525W of solar panels, based on layout and rooftop accessories. Most owners with roof vents and fans can safely fit 300W; creative layouts and bendable panels may push above 500W. For standard vanlife (fridge, lights, laptops), aim for at least 300–400W; more is suggested for year-round, all-electric, or “power-hungry” setups.

RV Solar Panel Installation Cost:In 2026, RV solar panel install costs vary by system size and install type:1. 100–200W (lights, charging): $300–$600 DIY, $500–$900 pro install2. 300–400W (fridge, laptops): $700–$1,200 DIY, $1,000–$1,800 installed3. 500–800W (microwaves, TVs): $1,300–$2,500 DIY, $2,000–$3,500 installed4. 1000W+ (AC, heavy use): $3,000–$6,000 DIY, $4,500–$8,000+ installed.

Pricing covers panels, charge controller, wiring, and batteries. Pro installs cost 30–50% more but may include a warranty and full setup.
