DIY Single unit Refrigerator Galley (CR85) kit for Sprinter vans
by The Vansmith DIY
Free local pickup at Vansmith Shop
Usually ships in 2-4 weeks
Compatible with: Mercedes Sprinter 144, Mercedes Sprinter 170

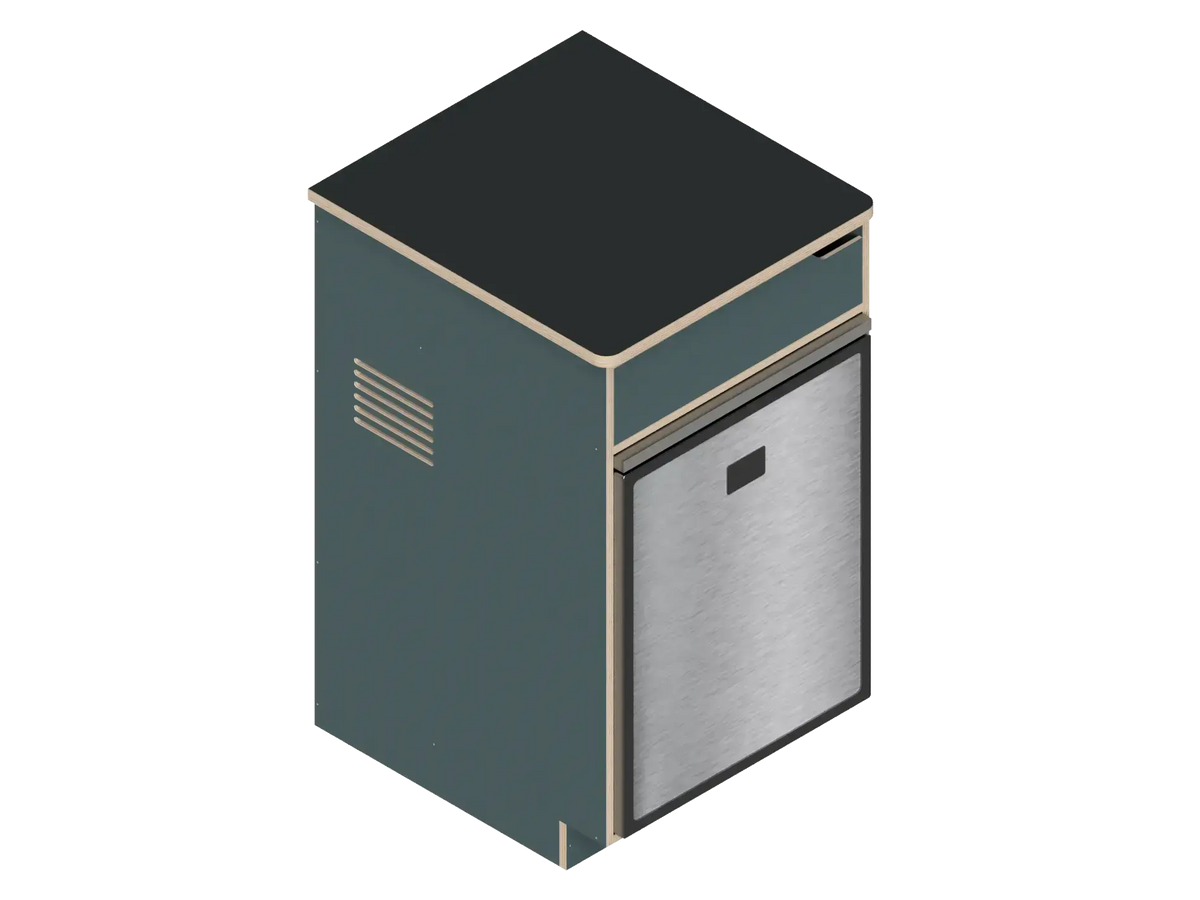

Description: A standalone refrigerator cabinet sized for an Isotherm Cruise 85 fridge, with an added storage drawer and Formica countertop — built by The Vansmith in Boulder, Colorado. Compact refrigeration that drops into almost any layout.
Features & Specs:
- Dimensions: 19.8" W x 22" D x 34.5" H
- Layout: Standalone fridge cabinet + drawer + countertop
- Fridge bay: Sized for Isotherm Cruise 85
- Countertop: 3/4" Formica included
- Storage: Soft-close drawer

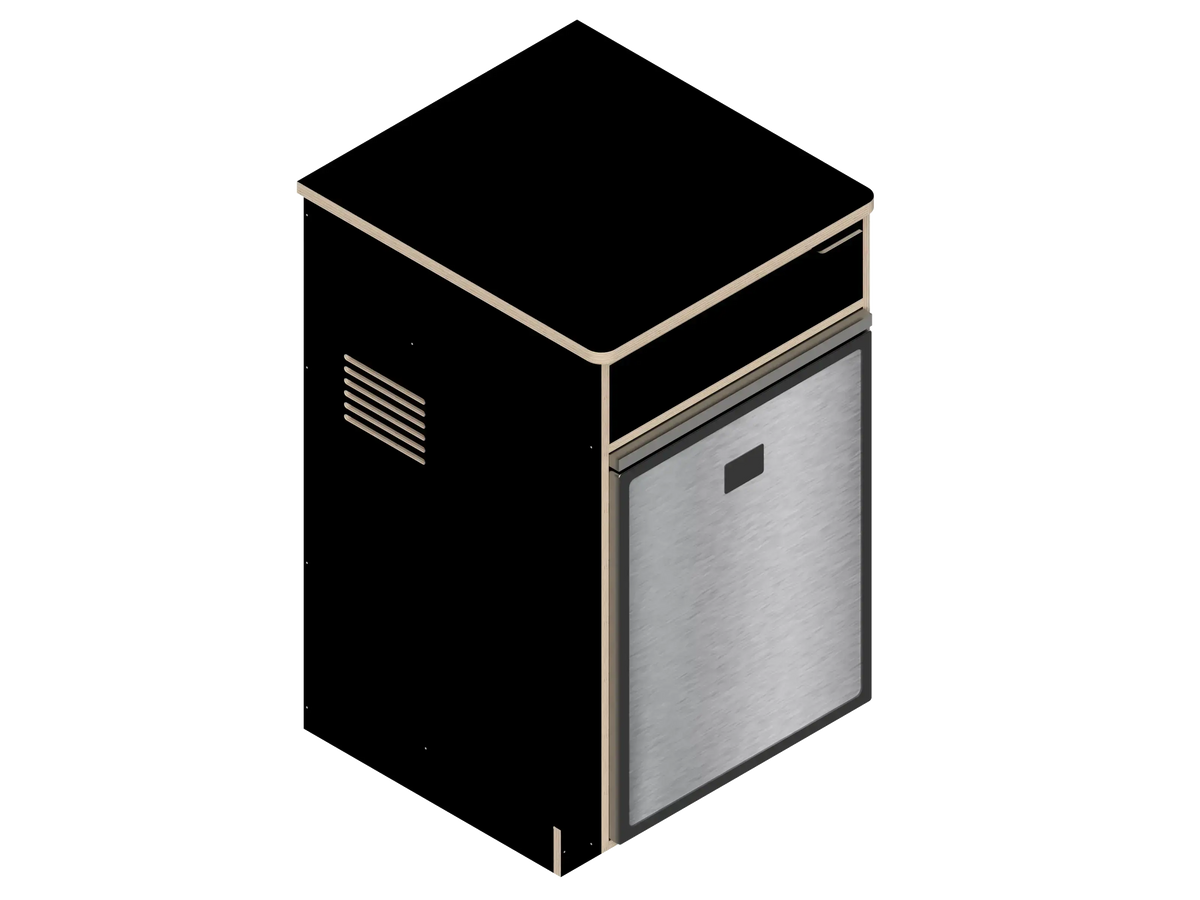

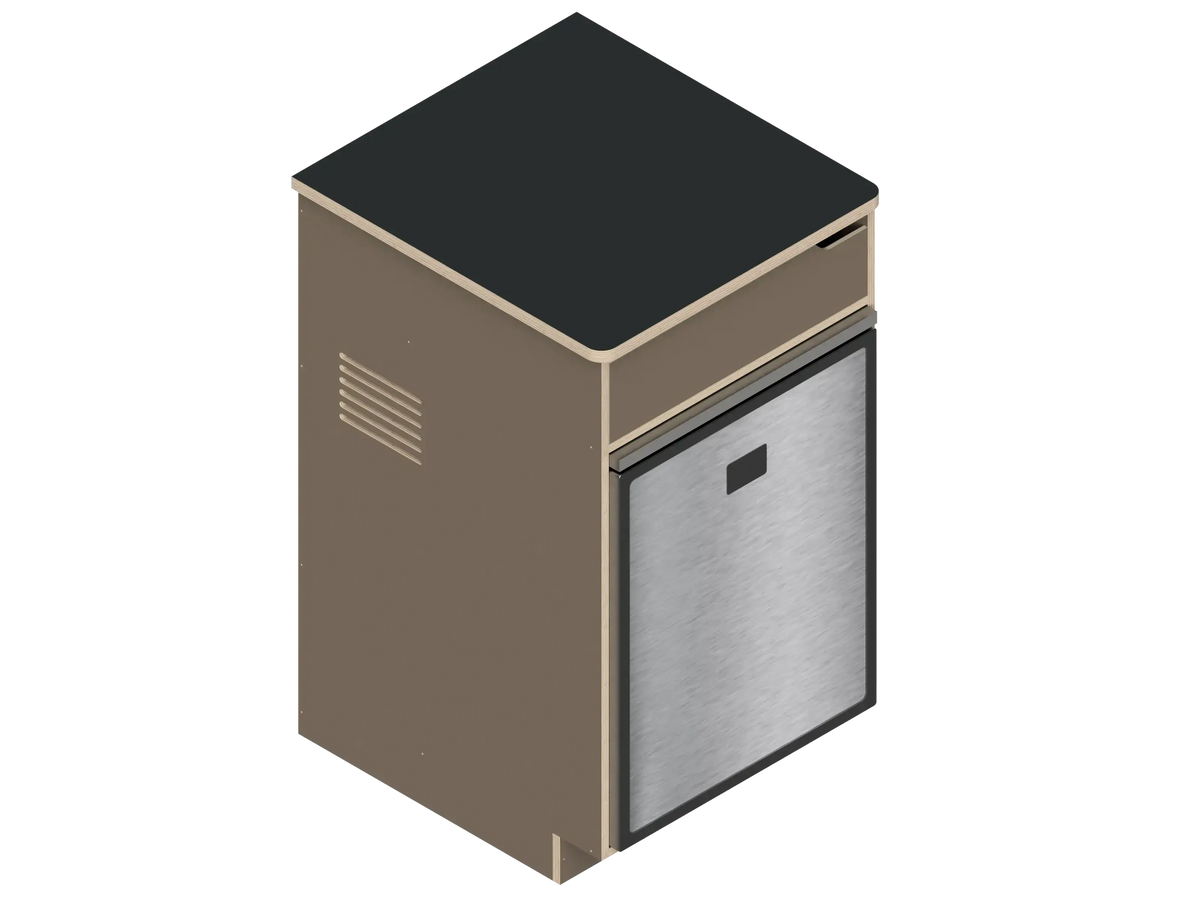

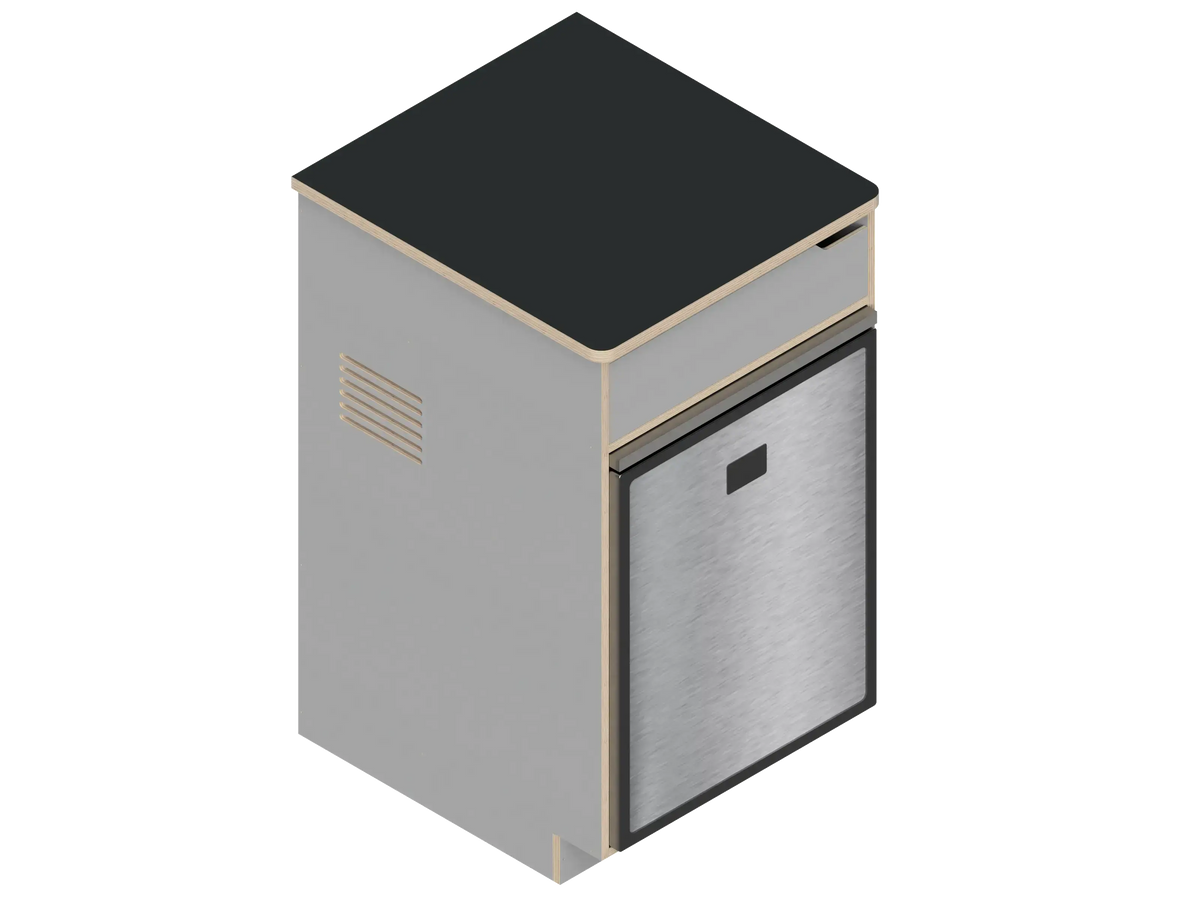

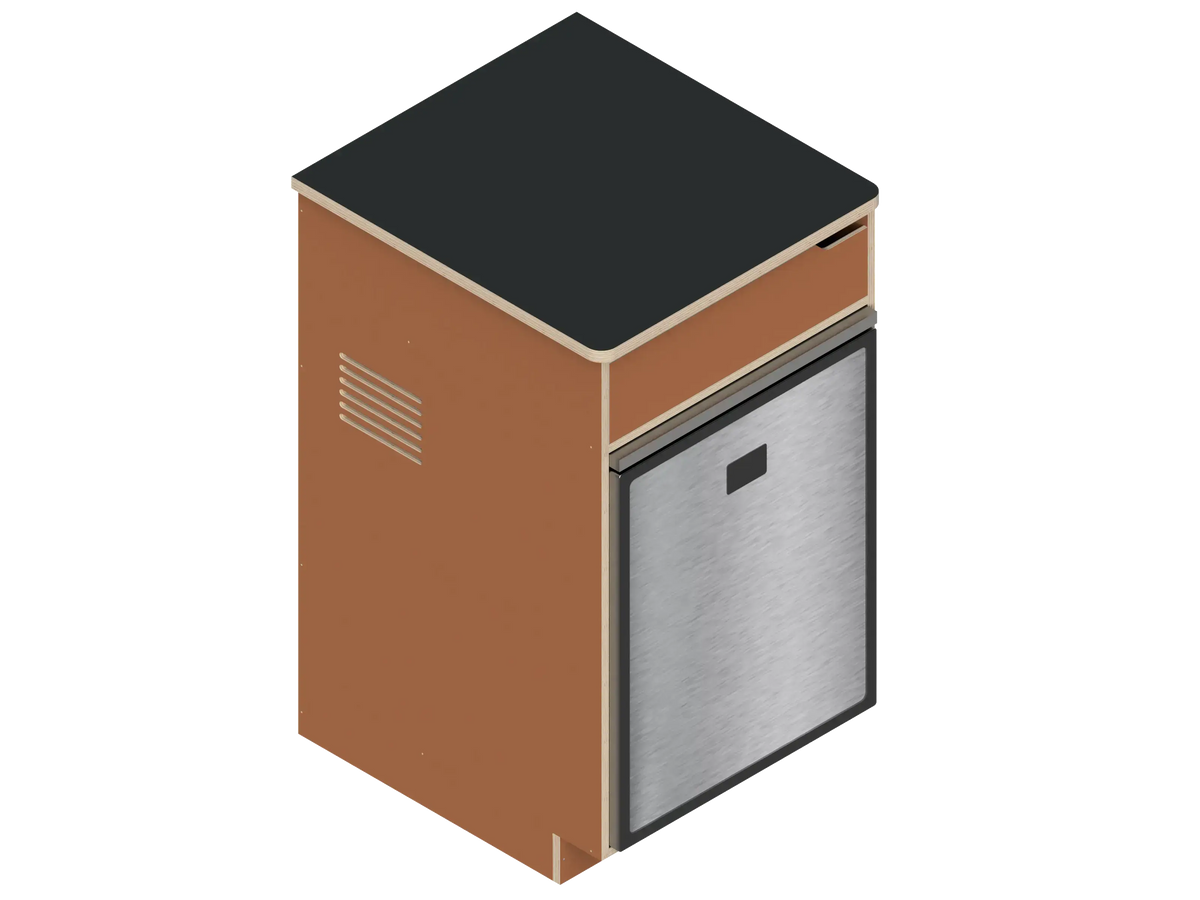

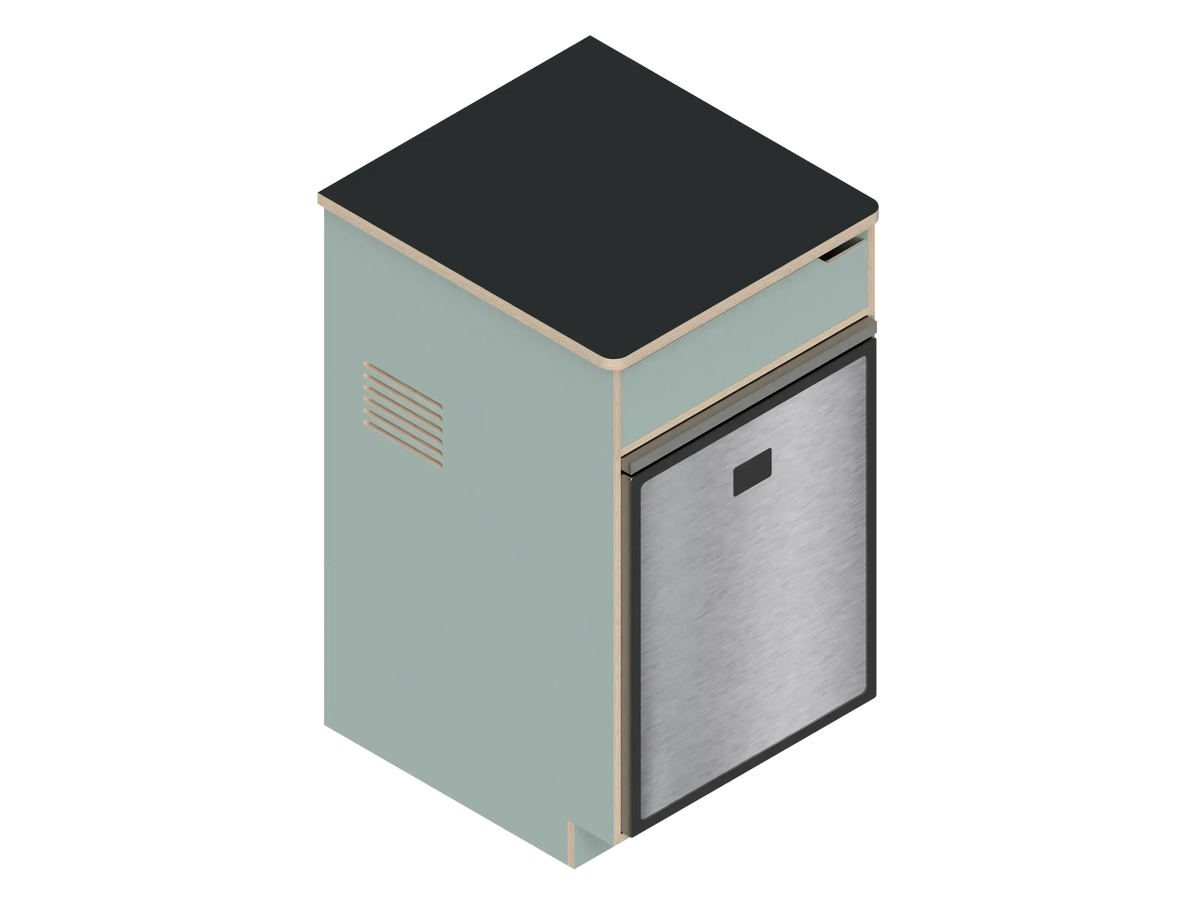

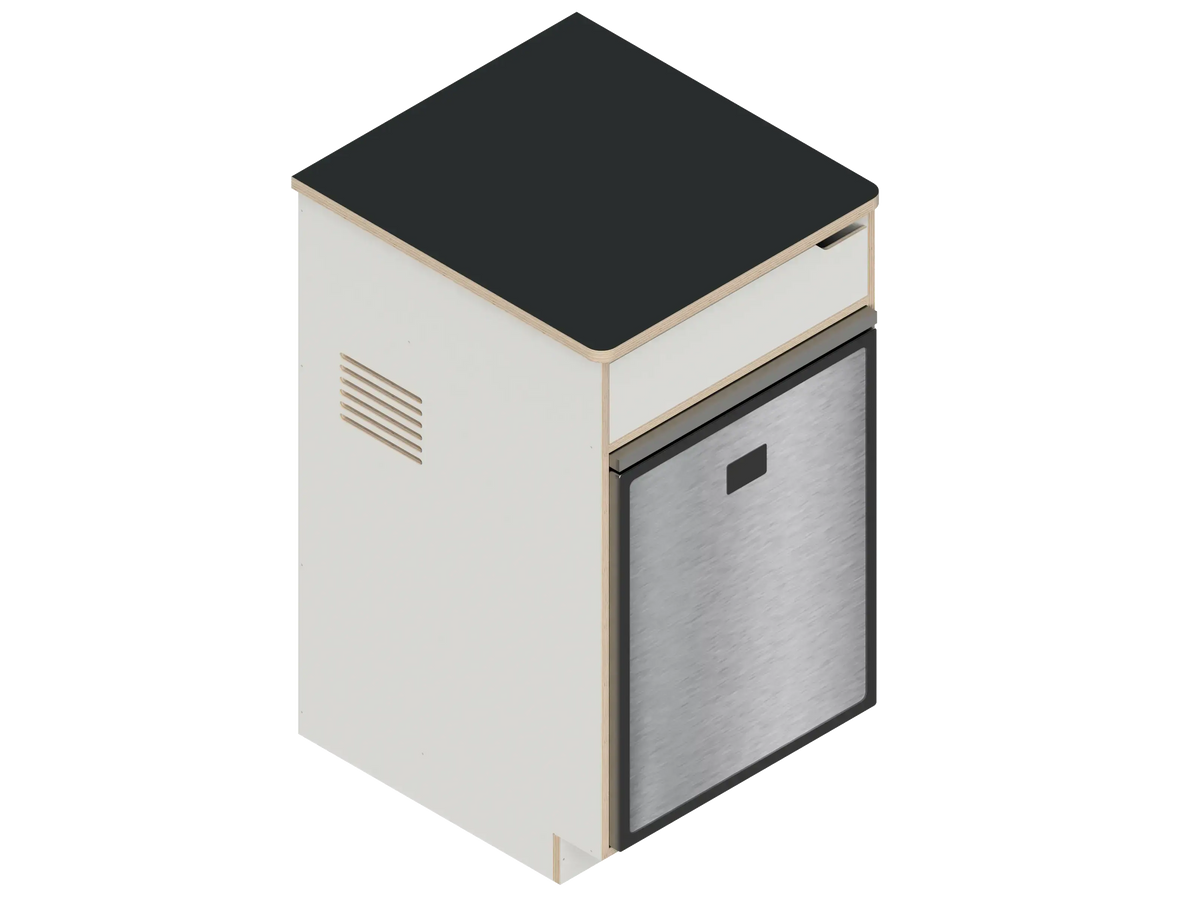

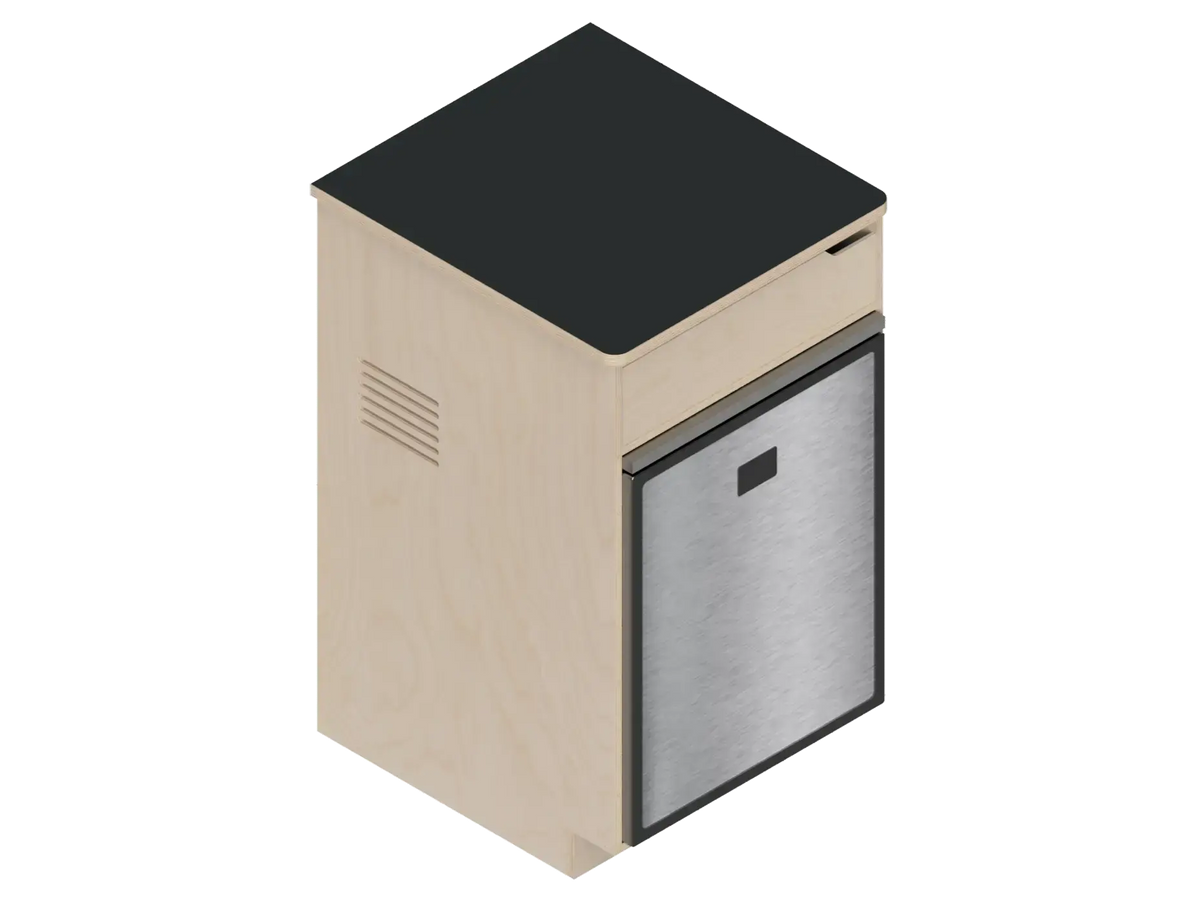

- Material options: 8 choices — Baltic Birch with no laminate, or with white, black, fog, winter sky and other formica laminates
- Finish levels: Wood cut-outs only, sanded edges, or fully assembled (local pickup/delivery)
Who This Is For:
DIY builders who want compact refrigeration plus a little extra storage. The 85 fridge fits tighter layouts while the drawer adds organized space.
What's Included:
- 9 CNC cut parts
- 1 Southco closing latch
- 23 square head cabinet screws
- 1 drawer box
- 2 18" BLUM drawer glides
- 2 drawer clips
- 1 (3/4") Formica countertop
Items to buy separately:
- Isotherm Cruise 85 refrigerator
Tools you'll need:
- Power drill
- 1/8" drill bit
- #1 square driver bit
- #2 Phillips driver bit
- Clamps
- Wood glue
Disclaimer: This product is sold as a DIY kit and requires assembly and installation (except the fully-assembled finish option). Appliances and plumbing are not included. The Vansmith is not responsible for damage caused by improper installation.
Frequently asked questions about Vansmith DIY parts
Each Vansmith DIY part is designed for a specific chassis and wheelbase, typically Mercedes Sprinter 144 or 170, Ford Transit 148 standard or extended, or both. The product title and description list the exact fit. If you are unsure, message us with your year, make, model, and wheelbase and we will confirm.
Most Vansmith DIY parts are designed for confident weekend builders with basic tools (drill, level, measuring tape, painters tape). Each kit ships with detailed install instructions. We also offer paid phone and video support if you get stuck, and the kits are built to forgive minor measurement errors.
Each DIY kit is made to order and usually ships in 2 to 4 weeks. Larger multi-product bundles take 4 to 6 weeks. Shipping is calculated at checkout from your address and order size, carried by UPS or USPS. We ship to the lower 48 states and DC. For Alaska, Hawaii or US territories, email DIY@thevansmith.com for a quote before you order. Local pickup at our Boulder shop is available; we will email you as soon as your order is ready.
DIY products are non-refundable because each kit is CNC-cut to spec and cannot be resold. If your order arrives with damaged or missing parts, we will ship replacements at no cost. Every DIY part carries a 1-year material warranty covering defects such as delamination, warping from manufacturing, and incorrect cuts. You have 14 days after delivery to inspect and report any issues. Contact DIY@thevansmith.com for warranty claims.
Yes. If you would rather have a pro install your DIY part, we offer paid install slots in our Boulder shop. Most single-part installs (a galley, bed, or cabinet set) take 1 to 3 days. Contact us for current install scheduling and pricing.
Yes. Our Foundation Bundles give you wall, floor and ceiling panels for the Sprinter 144 and 170 and the Transit 148 and 148 extended. The Sprinter 144 Full Build Bundle adds the Versabed, mattress, kitchen galley with sink, upper cabinet and bench seat, with free shipping. Electrical, insulation and appliances are not included in any bundle.
