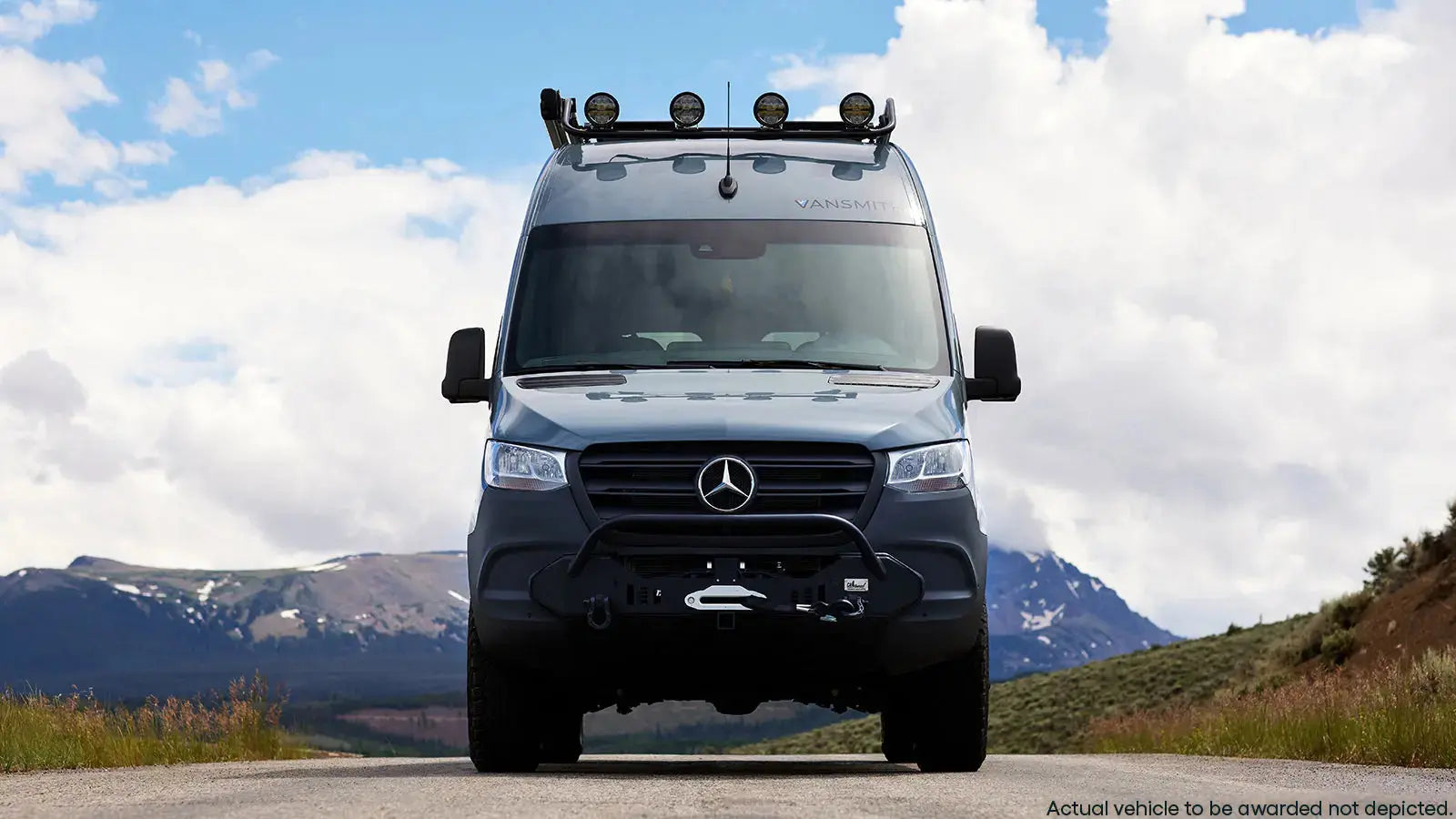

Sprinter 170: what the numbers mean - and why they matter for your build
The 170" wheelbase Sprinter is the workhorse long wheelbase for people who want livable inside space without moving into a full-size RV. On paper the numbers look simple: a 170" wheelbase and roughly 14'3" (171") of cargo length on many cargo models.
In practice, sizes shift once you add insulation, floor systems, cabinets, and the small but needed bits that make a van livable. Below we walk through factory specs, Vansmith "as-built" measurements, garage and parking needs, and layout options that the extra 26" over a 144" wheelbase opens up.
Explore our Sprinter 170 conversions
Quick OEM specs: exterior and factory interior numbers
OEM spec pages give the main starting point. Typical 170 WB Sprinter cargo specs (varies by roof, 2500 vs 3500, and model year) include a wheelbase of about 170". Total van lengths run in the 233–276" range, based on bumper and body setup. Cargo floor length is around 171" (14.25 ft), max cargo width at the panel line is about 70", and width between the wheel wells is roughly 56". (Mercedes-Benz SprinterMercedes-Benz)
Heights vary: the mid (standard) roof is roughly 75" inside on high-roof models and ~59" on mid-roof versions. (Mercedes-Benz SprinterMercedes-Benz) We use the Mercedes spec sheet for base numbers (OEM link nofollow).
Why Foundation builds matter for usable space
(External reference: Mercedes-Benz Vans official specs - nofollow)
Real-world usable interior dimensions after a Vansmith build
Every build subtracts a little from the factory number. Typical build math on a 170 WB with our layered floor, insulation, and panel system looks like this: 3/4" finished floor and +1/2–3/4" subfloor spacers in select zones. Wall insulation plus panels is ~1.5–2" per side, and ceiling finishes are 3/4–1".
That means the 171" factory cargo length turns into ~166–168" of clear usable floor length after build materials. Width between finished panels usually lands around 67" at the panel line (70" factory minus insulation/panels), and the wheel-well bump cuts usable width to ~56" inside the well area.
Suspension and payload upgrades are part of the talk - payload affects what you can add without overloading the springs. This is especially true when you’re adding cabinets and parts cut at a cnc router boulder shop or using cnc cutting for van conversions as part of a precise, lightweight build.
Garages, parking, and turning: will a 170 fit where you need it to?
Short answer: often yes, but measure first. A high-roof 170 Sprinter often clears most home garages if the garage depth is 20'+ and ceiling clearance is at least 8'4" (100"+).
Many 170 builds choose the mid- or high-roof depending on standing-room priorities; a high-roof adds inside headroom but can make low home garages and drive-throughs harder. Turning radius and maneuverability are livability factors - 170 WB adds length, which increases the turning circle and makes tight city parking tougher than a 144 WB.
Wet-bath possibilities in a 170 improve a lot compared to 144: you can fit corner wet-baths or compact van showers without giving up a full-length bed.
Common layout options and what fits comfortably in 170 WB
The extra length unlocks layout flexibility. Four common, practical options we build and recommend:
- Full-length bed (side or cross) + rear garage: A transverse queen or full-length bed plus a rear storage/garage area for bikes/boards is a common 170 layout. With ~166" usable length you can run a 60–75" bed and still have a usable 40–60" garage space depending on cabinetry depth.
- Rear kitchen + mid bed: Place a galley at the rear doors and a fixed or sliding bed mid-van. This preserves a true full-height rear storage and makes cooking easier on long trips.
- Wet-bath + lounge: A corner wet-bath module (roughly 48"×30") becomes realistic, paired with a convertible lounge/bed in the front half of the living area.
- Mobile office + living area: Use the extra length for a proper desk/office area and a separate sleeping zone - ideal for digital nomads who need space to work comfortably.
Example quick sizes: place a 72"×24" galley and you still have ~94" for living/bed zones; a 48" wet-bath leaves ~118" for bed/lounge. We often sketch CAD-style floor cuts during a planning meeting to show exact gaps and door swing impacts.
Payload, suspension, and the practical trade-offs vs 144 WB
Why pick 170 over 144? The main payoff is usable inside space: roughly 26" extra deck length. That’s often the gap between a compact bed and a full-length bed, or between a cramped cassette toilet and a full wet-bath.
Trade-offs: extra curb weight, slightly lower maneuverability, possible garage/parking limits, and sometimes a higher price or a changed payload rating. Payload matters: depending on 2500 vs 3500 chassis and single vs dual rear wheels, gross payload typically ranges 3,000–4,500 lbs.
If your planned build materials and systems push you near payload limits, plan for suspension upgrades or air-ride kits to keep ride feel and safety.
Heater installs, window fits, and other systems are also shaped by payload and roof choice; we review these during design so systems match chassis limits.
Design tips to maximize the 170’s advantages
Practical, experience-driven tips from Vansmith builders:
- Account for build-up early: set your usable-length expectation at factory-length minus ~3–6" for finished floors and panels.
- Think vertical: tall storage over the wheel wells preserves floor length while giving lots of storage volume.
- Modular wet-baths: if you want a shower but plan occasional stealth parking, consider a corner wet-bath with low-profile ventilation and water containment - less visual footprint, more functionality.
- Balance payload with materials: our lightweight composite panels aim to retain >3,000 lbs payload on many 170 builds - important if you want solar, domestics, and heavy gear.
Before you lock in a van purchase, measure the garages, driveways, and parking spaces you expect to use. Bring those numbers to your builder - small choices like bumper type or roof add-ons change where the van will fit. Check out our Mercedes Sprinter 4x4 All Bamboo Build.
Ready to scope your build?
Book a consultFrequently Asked Questions
What is the interior length of a Sprinter 170?
A stock 170 WB Sprinter cargo offers ~171" of factory cargo length. After a typical Vansmith build (3/4" floor + cabinets + panels), plan for ~166–168" of usable inside floor length.
Can a 170 Sprinter fit in a standard garage?
Often yes. High-roof 170s need garage depths of ~20'+ and ceiling clearance ~8'4" or more. Mid-roof 170s improve garage fit but reduce standing height - measure your space before buying.
How does the 170 wheelbase compare to the 144 for camper conversions?
The 170 adds roughly 26" of deck length versus the 144. That extra space often allows full-size beds, rear garages, or wet-baths. The trade-off is a wider turning radius and possibly trickier urban parking.
What is the payload on a 170 Sprinter?
Payload depends on chassis (2500 vs 3500), trim, and rear-wheel options; expect roughly 3,000–4,500 lbs. Always add up curb weight + planned build weight and talk with your builder about suspension upgrades when you get close to limits.
How wide is the interior of a Sprinter 170 after panels?
Factory width at the panel line is ~70"; between the wheel wells, ~56". After insulation and inside panels (roughly 1.5" per side), count on ~67" clear at the panel line and ~54–55" between wheel wells for finished cabinet planning.
Can you install a bathroom in a 170 WB Sprinter?
Yes. The 170 often fits corner wet-baths (approx. 48"×30") or compact slide-out shower units. Vansmith wet-bath kits are built to work within those footprints while keeping storage and bed length.
